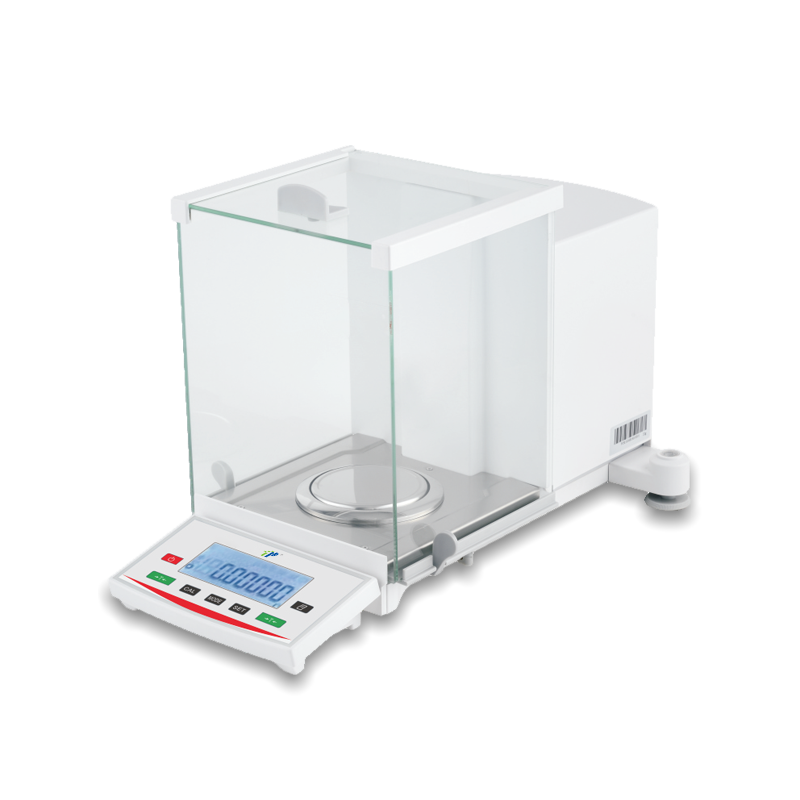

TC-SW Series
TOP
Feature:
1. Rear type electromagnetic force sensor;
2. All transparent glass windshield,samples can be seen entirely and clearly.
3. Stanard Rs232 communication port,realize the communication betweendata and computer, printer or otherdevice.
4. Detachable LCD display, to avoid thebalance shaking and vibrating whenusers press the buttons.
5. The below hook weighing device (optional).
6. Internal weights one key calibration(external weight calibration)
7. Thermal printer (optional).
Feature:
1. Rear type electromagnetic force sensor;
2. All transparent glass windshield,samples can be seen entirely and clearly.
3. Stanard Rs232 communication port,realize the communication betweendata and computer, printer or otherdevice.
4. Detachable LCD display, to avoid thebalance shaking and vibrating whenusers press the buttons.
5. The below hook weighing device (optional).
6. Internal weights one key calibration(external weight calibration)
7. Thermal printer (optional).
TC-SW | Model | sw1035A | sW1055A | sw1085A | sw2035A | sw2055A | sw2085A | sw1035B | sw1055B | sw1085B | sw2035B | sw20558 | sw2085B |
Range(g) | 120/31 | 120/51 | 120/82 | 210/31 | 210/51 | 210/82 | 120/31 | 120/51 | 120/82 | 210/31 | 210/51 | 210/82 | |
Calibration mode | Internal calibration | External calibration | |||||||||||
Readability(mg) | 0.1mg/0.01mg | 0.1mg/0.01mg | |||||||||||
Repeatability(mg) | ±0.1mg/±0.05mg | ±0.1mg/±0.05mg | |||||||||||
Linear error (mg) | ±0.1mg/±0.05mg | ±0.1mg/±0.05mg | |||||||||||
Operating temperature range ('C) | 10℃~30℃ | 10℃~30℃ | |||||||||||
Operating range of humidity (RH) | (20%~85%)RH Relative(non-condensing) | (20%~85%)RH Relative(non-condensing) | |||||||||||
Response time (average) (in seconds) | 2.5/15 | 2.5/15 | |||||||||||
The scale size(mm) | φ90 | φ90 | |||||||||||
Overall dimensions (L*W*H)(mm) | 470x310x320mm | 470×310x320mm | |||||||||||
Preheat time | (20~30)min | (20~30)min | |||||||||||
Baud rate | 300、600、1200、2400、4800、9600 | 300、600、1200、2400、4800、9600 | |||||||||||
Display | Detachable LCD display | Detachable LCD display |
