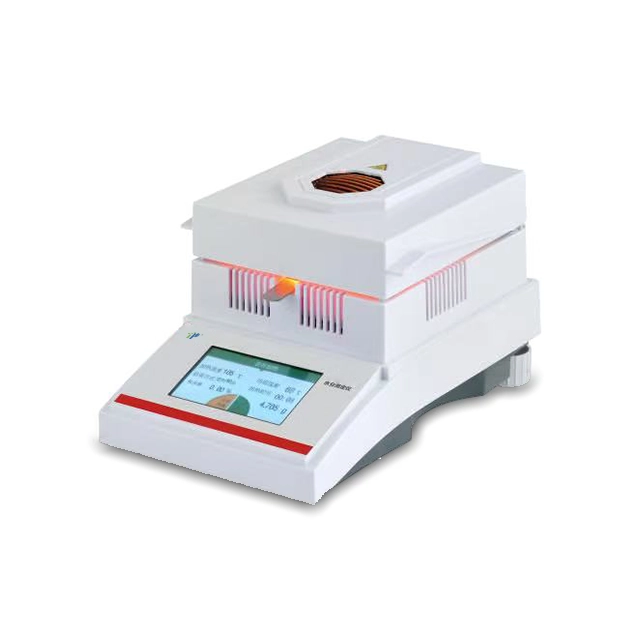

TC-SF Series
TOP
Feature:
1. Large color touch screen;
2. High precision insulated sensor;
3. Aluminum alloy shell;
4. Rapid and uniform heating during the test, effectively improving heating efficiency;
5. Ring halogen tube, multi-layer stainless steel heating chamber;
6. USB data interface, connect printer, internal data storage;
7. Stainless steel weighing pan.
Feature:
1. Large color touch screen;
2. High precision insulated sensor;
3. Aluminum alloy shell;
4. Rapid and uniform heating during the test, effectively improving heating efficiency;
5. Ring halogen tube, multi-layer stainless steel heating chamber;
6. USB data interface, connect printer, internal data storage;
7. Stainless steel weighing pan.
TC-SF | Model | TC-SF-16A | |||||
Range | 50g/1mg | 50g/2mg | 50g/5mg | 100g/1mg | 100g/2mg | 100g/5mg | |
Range(g) | 50g | 50g | 50g | 100g | 100g | 100g | |
Readability (mg) | 1mg | 2mg | 5mg | 1mg | 2mg | 5mg | |
Repeatability (3g sample) | 0.5% | 0.3% | 0.2% | 0.5% | 0.3% | 0.2% | |
Minimum sample size | 29 | ||||||
Recommended sample size | 3~10g | ||||||
Heating time | (1~99）mins | ||||||
Heating procedure | Standard | ||||||
Communication | RS232 | ||||||
Endpoint control | Timed, automatic, manual | ||||||
Heating temperature range | 60℃~160℃ | ||||||
Show contents | Weight, time, moisture | ||||||
Pan size | φ100mm | ||||||
Shape size | 34.5×24.5×20cm | ||||||
Net weight | 3kg | ||||||
Gross weight | 4kg | ||||||
Heating source | Halogen lamp | ||||||
