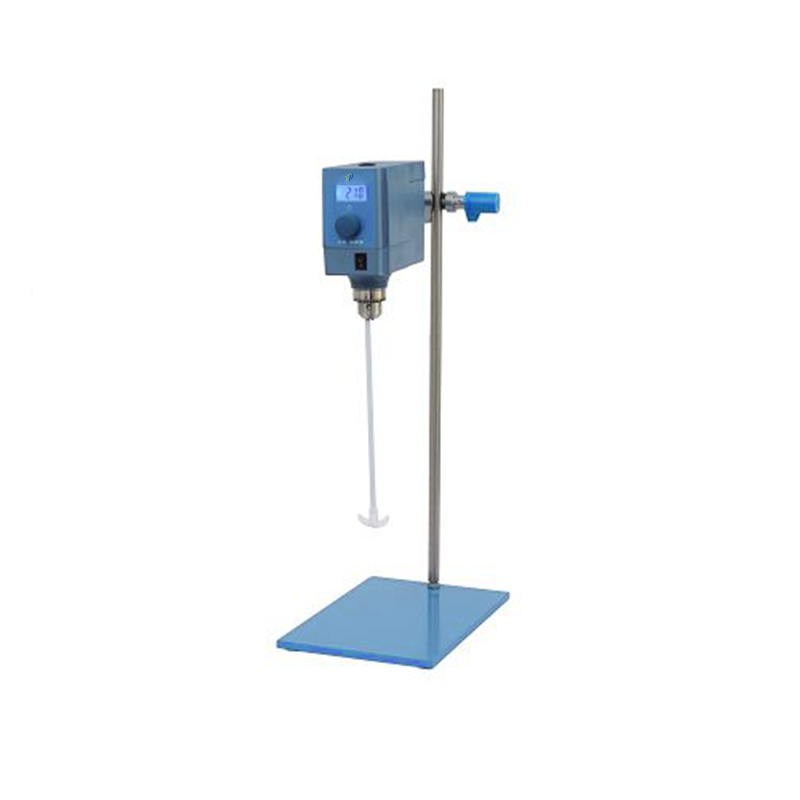

PYP2011 Series Brushless DC Motor Overhead Stirrer, 50W–250W, 0–1500 rpm, LCD Display, High Torque Laboratory Mixer

You are here: home » Products » Hotplates & Stirrers » Overhead Stirrers / Mechanical Stirrers » PYP2011 Series Brushless DC Motor Overhead Stirrer, 50W–250W, 0–1500 rpm, LCD Display, High Torque Laboratory Mixer

Product Category

PYP2011 Series Brushless DC Motor Overhead Stirrer, 50W–250W, 0–1500 rpm, LCD Display, High Torque Laboratory Mixer

Motor Type: Brushless DC motor with MCU closed-loop control for stable speed
Motor Power & Torque: 50W (200 mN·m), 100W (450 mN·m), 150W (600 mN·m), 250W (1 N·m)
Speed Range: 0–1500 rpm, adjustable via rotary encoder
Control & Display: Knob control, LCD digital display, speed setting
Stirring Rod: Stainless steel, length 350 mm (optional F4)
Chuck Clamping Range: φ1.5–13 mm
Dimensions & Weight: 380×82×210 mm, 12–12.6 kg

Quantity:
Availability:





Inquire Add to Basket

Model:
PYP2011-50 / PYP2011-100 / PYP2011-150 / PYP2011-250
Brand:
TOP

Brushless DC motor drive penetration type stirring shaft MCU closed-loop control Constant and stable rotational speed Digital display and speed setting, rotary encoder operation.

Electric laboratory mixer Fixed-speed laboratory mixer Industrial constant speed mixer Precision steady-speed mixer Reliable electric lab mixer Heavy-duty fixed RPM mixer

Related Products

LED Digital Magnetic Hotplate Stirrer with Ceramic Plate P-H280-PRO

P-H280-PRO Magnetic Hotplate Stirrer – Digital Display, 10L Capacity, 550°C Heating for Laboratory Use

LCD Digital Hotplate Magnetic Stirrer P7-H550-PRO

P7-H550-PRO Magnetic Hotplate Stirrer – LCD Display, PID Control, 20L Capacity, 550°C Heating

LED Digital Magnetic Hotplate Stirrer P7-H550-S

P7-H550-S Magnetic Hotplate Stirrer – LED Display, 10L Capacity, 550°C Heating with PT1000 Sensor

LCD Digital Hotplate Magnetic Stirrer with Timer P-H-ProT

P-H-ProT Magnetic Hotplate Stirrer with LCD Display, Timer, PT1000 Sensor, and RS232 Data Interface

LCD Digital Hotplate Magnetic Stirrer P-H-PRO+

P-H-PRO+ Digital Magnetic Hotplate Stirrer with LCD Display, PT1000 Sensor, and RS232 Data Interface for Laboratory Use

Digital Magnetic Hotplate Stirrer TH Series

TH Series Magnetic Hotplate Stirrer – Adjustable Heating and Stirring for Laboratory and Industrial Use

Digital Magnetic Stirrer With Ceramic Plate TH Series

TH-4C/TH-II-4C Digital Magnetic Hotplate Stirrer – Adjustable Heating and Stirring with LCD Display for Laboratory and Industrial Use

Type	PYP2011-50	PYP2011-100	PYP2011-150	PYP2011-250
Control	Knob	Knob	Knob	Knob
Motortype	Brushless DC Motor	BrushlessDC Motor	Brushless DC Motor	BrushlessDC Motor
Motor torque	200mN.M	450mN.M	600mN.M	1N.M
Motor Power	50W	100W	150W	250W
(AC) Voltage	220V	220V	220V	220V
(r/min) Speed Range	0~1500	0~1500	0~1500	0~1500
Digital Display	LCD	LCD	LCD	LCD
(mm)Stirring rod length	350	350	350	350
Stirring rod material	Stainless steel	Stainless steel	Stainless steel	Stainless steel
(mm) Pole length	700	700	700	700
(mm)chuck clamping range	φ1.5-13	φ1.5-13	φ1.5-13	φ1.5-13
(mm) Dimension	380×82×210(Host)	380×82×210(Host)	380×82×210(Host)	380×82×210(Host)
(kg) Weight	12	12.3	12.5	12.6

Type	PYP2011-50	PYP2011-100	PYP2011-150	PYP2011-250
Control	Knob	Knob	Knob	Knob
Motortype	Brushless DC Motor	BrushlessDC Motor	Brushless DC Motor	BrushlessDC Motor
Motor torque	200mN.M	450mN.M	600mN.M	1N.M
Motor Power	50W	100W	150W	250W
(AC) Voltage	220V	220V	220V	220V
(r/min) Speed Range	0~1500	0~1500	0~1500	0~1500
Digital Display	LCD	LCD	LCD	LCD
(mm)Stirring rod length	350	350	350	350
Stirring rod material	Stainless steel	Stainless steel	Stainless steel	Stainless steel
(mm) Pole length	700	700	700	700
(mm)chuck clamping range	φ1.5-13	φ1.5-13	φ1.5-13	φ1.5-13
(mm) Dimension	380×82×210(Host)	380×82×210(Host)	380×82×210(Host)	380×82×210(Host)
(kg) Weight	12	12.3	12.5	12.6
