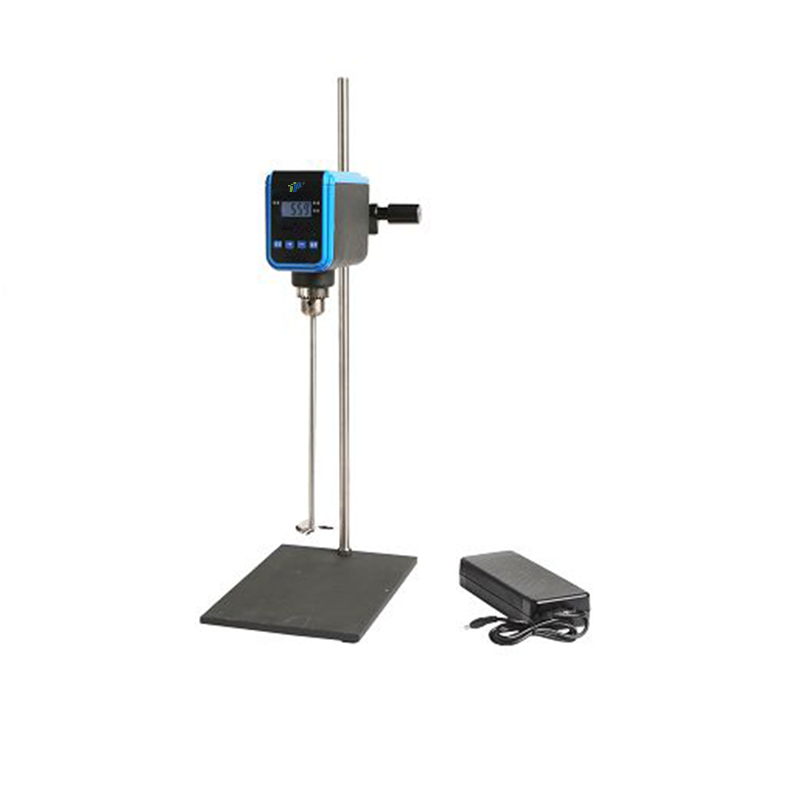

PYP19 Series Brushless DC Motor Electric Agitator, 50W–150W, LCD Display, 0–1500 rpm, Corrosion-Resistant Housing
You are here: home » Products » Hotplates & Stirrers » Overhead Stirrers / Mechanical Stirrers » PYP19 Series Brushless DC Motor Electric Agitator, 50W–150W, LCD Display, 0–1500 rpm, Corrosion-Resistant Housing

Product Category

loading

PYP19 Series Brushless DC Motor Electric Agitator, 50W–150W, LCD Display, 0–1500 rpm, Corrosion-Resistant Housing

Motor Type: 36V brushless DC motor, corrosion-resistant housing
Max Torque: 200 mN·m (50W), 450 mN·m (100W), 600 mN·m (150W)
Speed Range: 0–1500 rpm, microprocessor control with LCD display
Control Method: Button control, adjustable speed, timing up to 9999 minutes
Stirring Rod: Stainless steel, length 350 mm (optional F4)
Chuck Clamping Range: φ1.5–13 mm
Dimensions & Weight: 380×82×210 mm, 11–12 kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PYP19050/PYP19100/PYP19150

  • TOP

PYP19 series electric agitator shell is made of corrosion-resistant engineering plastics by die-casting. The closed shell prevents liquid from splashing into the internal corrosion circuit of the machine. It is driven by 36V brushless DC motor, with strong security, controlled by single chip microcomputer, adjustable speed by idle ring, stable rotation speed, timing up to 9999 minutes, LCD display functions. Equipped with a wide input voltage, output 36V power adapter, suitable for a variety of voltage occasions.


Type

PYP19050

PYP19100

PYP19150

Control

Button

Button

Button

Motor type

Brushless DC Motor

BrushlessDC Motor

Brushless DC Motor

Motor torque

200mN.M

450mN.M

600mN.M

Motor Power

50W

100W

150W

(AC) Voltage

220V

220V

220V

(r/min) Speed Range

0~1500

0~1500

0~1500

Digital Display

LCD

LCD

LCD

(mm)

Stirring rod length

350

350

350

Stirring rod material

Stainless steel

Stainless steel

Stainless steel

(mm) Pole length

700

700

700

(mm)

chuck clampingrange

φ1.5-13

φ1.5-13

φ1.5-13

(mm) Dimension

380×82×210 (Host)

380×82×210(Host)

380×82×210(Host)

(kg)Weight

11

12.0

12.0

Note: The material of the stirring rod can be F4 or stainless steel, and the base can be flat or curved.
