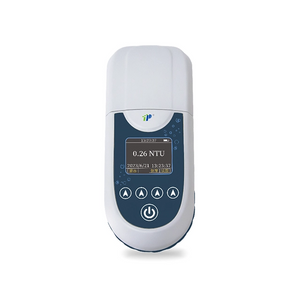

PT-M900(5 Parameters)
TOP
Product Description:
Portable water quality tester (residual chlorine, total chlorine, chlorine dioxide, ozone, PH and other parameters) is an intelligent water quality rapid analysis instrument, the instrument adopts the imported high-brightness quasi-parallel LED cold light source and Germany's advanced optical structure design, the optical performance and detection of the excellent effect; user-friendly interface, simple measurement methods and clear OLED screen display, so that both professional and non-professionals It is a powerful assistant for scientific research, data analysis and water quality testing, which is widely used in scientific research institutes, tap water, hospital sewage, swimming pool water, domestic sewage, aquaculture water, environmental monitoring, petrochemical, papermaking, pharmaceutical, printing and dyeing, textile, leather, brewing, electronics, municipal government, colleges and universities, etc. It is also well praised by the majority of users.
Portable water quality detector is based on the characteristic absorption spectrum of material molecules to visible light and the principle of the law of light absorption (Lambert-Beer law), with unknown concentrations of samples and known concentrations of standard substances compared to the method of quantitative analysis of the instrument.
The instrument consists of an OLED screen, an LED light source, a colourimetric cell, a photoelectric sensor, a microprocessor and auxiliary parts, and can measure the content of multiple indicators of the sample through simple key operation, and can be flexibly customised.
Product Description:
Portable water quality tester (residual chlorine, total chlorine, chlorine dioxide, ozone, PH and other parameters) is an intelligent water quality rapid analysis instrument, the instrument adopts the imported high-brightness quasi-parallel LED cold light source and Germany's advanced optical structure design, the optical performance and detection of the excellent effect; user-friendly interface, simple measurement methods and clear OLED screen display, so that both professional and non-professionals It is a powerful assistant for scientific research, data analysis and water quality testing, which is widely used in scientific research institutes, tap water, hospital sewage, swimming pool water, domestic sewage, aquaculture water, environmental monitoring, petrochemical, papermaking, pharmaceutical, printing and dyeing, textile, leather, brewing, electronics, municipal government, colleges and universities, etc. It is also well praised by the majority of users.
Portable water quality detector is based on the characteristic absorption spectrum of material molecules to visible light and the principle of the law of light absorption (Lambert-Beer law), with unknown concentrations of samples and known concentrations of standard substances compared to the method of quantitative analysis of the instrument.
The instrument consists of an OLED screen, an LED light source, a colourimetric cell, a photoelectric sensor, a microprocessor and auxiliary parts, and can measure the content of multiple indicators of the sample through simple key operation, and can be flexibly customised.
Product features:
1. Using the new German optical structure, it has excellent optical performance, high measurement accuracy and stability, and is a more advanced and practical analytical instrument.
2. Adopting quasi-parallel cold light source, it has the advantages of wide transmittance area, energy saving, environmental protection, long life and fast response speed.
3. the instrument all-plastic casing, streamlined design, beautiful appearance, the surface after special treatment, anti-oxidation, acid and alkali resistance, the core components sealed waterproof.
4. This instrument is equipped with 10mL colourimetric vial by default, which is convenient and quick to operate.
5. Multi-parameter detection, this instrument supports 420nm, 470nm, 520nm and 620nm wavelength, can support a variety of parameters detection.
6. This instrument can save 5000 test results.
7. 5 keys, acrylic protection panel, long service life.
8. waterproof interface design, and Android mobile phone data line common.
9. The test results are saved manually, saving storage space.
10. Built-in 2500mAh lithium battery, can also be connected to the power supply through the data cable charging.
11. Connected to the computer, disc symbol ‘M900’.
Product features:
1. Using the new German optical structure, it has excellent optical performance, high measurement accuracy and stability, and is a more advanced and practical analytical instrument.
2. Adopting quasi-parallel cold light source, it has the advantages of wide transmittance area, energy saving, environmental protection, long life and fast response speed.
3. the instrument all-plastic casing, streamlined design, beautiful appearance, the surface after special treatment, anti-oxidation, acid and alkali resistance, the core components sealed waterproof.
4. This instrument is equipped with 10mL colourimetric vial by default, which is convenient and quick to operate.
5. Multi-parameter detection, this instrument supports 420nm, 470nm, 520nm and 620nm wavelength, can support a variety of parameters detection.
6. This instrument can save 5000 test results.
7. 5 keys, acrylic protection panel, long service life.
8. waterproof interface design, and Android mobile phone data line common.
9. The test results are saved manually, saving storage space.
10. Built-in 2500mAh lithium battery, can also be connected to the power supply through the data cable charging.
11. Connected to the computer, disc symbol ‘M900’.
Technical parameters:
Product Code | Test Items | Detection range(mg/L) |
5 Parameter 7 Curve | Residual Chlorine | 0-3 |
0-12 | ||
total chlorine Ozone | 0-3 | |
0-12 | ||
Chlorine dioxide | 0-2.5 | |
total chlorine | 0-5 | |
pH | 6.5-9.0 |
Specific test items / detection range / detection limit is subject to actual availability
Detection items | Basic Parameter |
Absorbance range | 0 ~ 3.0Abs |
Optical Stability | ≤±0.005Abs/30min |
Absorbance resolution | 0.001Abs |
Enclosure protection class | IP65 |
Light source life | 100,000 hours |
Filter life | 5 years |
Power rating | 0.3W |
Operational Repeatability | ≤±0.01Abs |
Temperature | 0 ~ 50°C |
Humidity | No requirement |
Dimensions | 170×72×44mm |
Weight | 277g |
Technical parameters:
Product Code | Test Items | Detection range(mg/L) |
5 Parameter 7 Curve | Residual Chlorine | 0-3 |
0-12 | ||
total chlorine Ozone | 0-3 | |
0-12 | ||
Chlorine dioxide | 0-2.5 | |
total chlorine | 0-5 | |
pH | 6.5-9.0 |
Specific test items / detection range / detection limit is subject to actual availability
Detection items | Basic Parameter |
Absorbance range | 0 ~ 3.0Abs |
Optical Stability | ≤±0.005Abs/30min |
Absorbance resolution | 0.001Abs |
Enclosure protection class | IP65 |
Light source life | 100,000 hours |
Filter life | 5 years |
Power rating | 0.3W |
Operational Repeatability | ≤±0.01Abs |
Temperature | 0 ~ 50°C |
Humidity | No requirement |
Dimensions | 170×72×44mm |
Weight | 277g |
