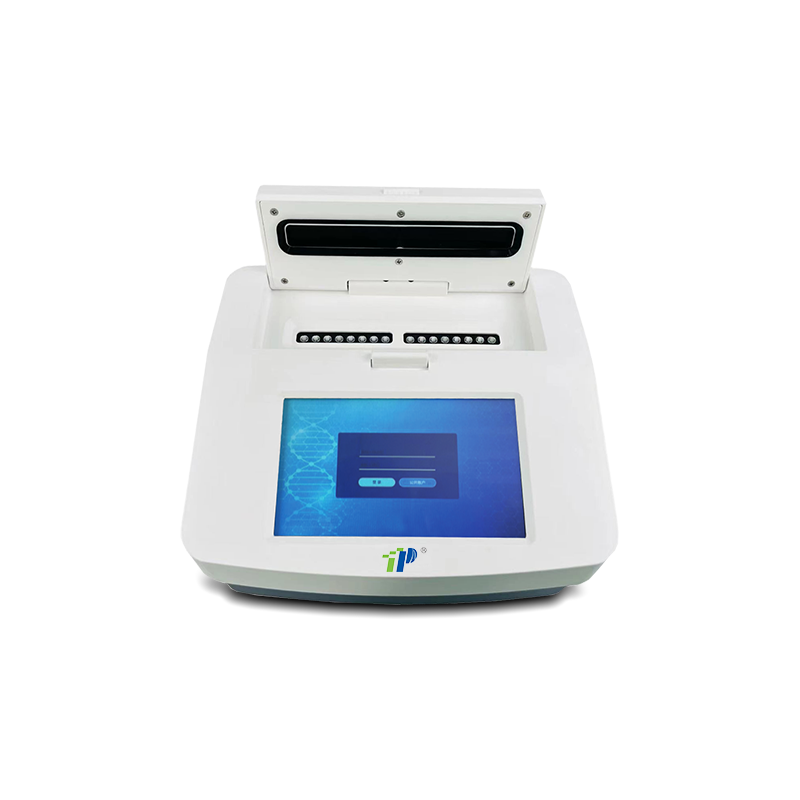

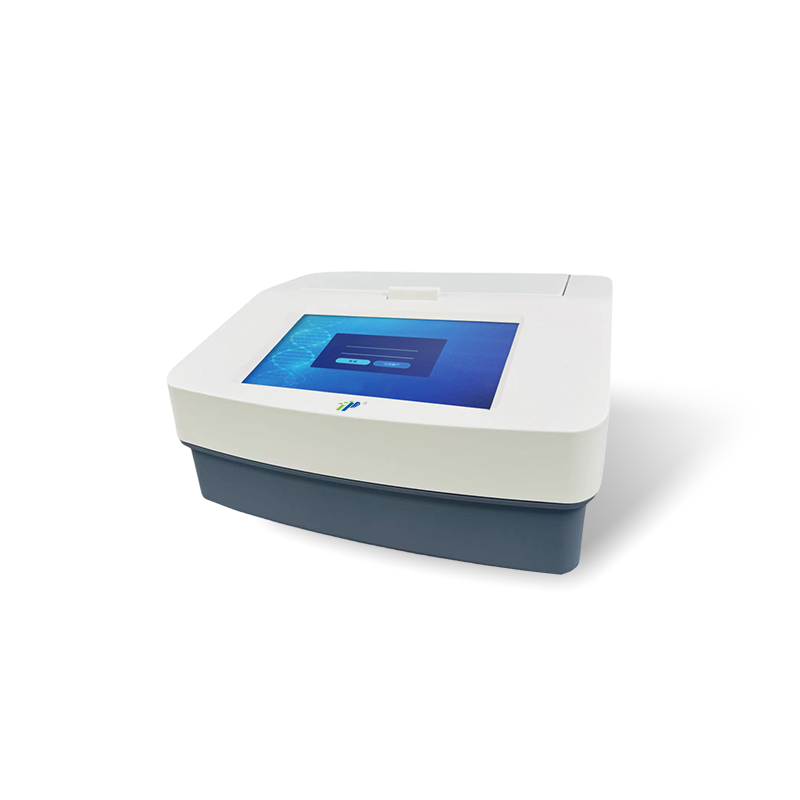

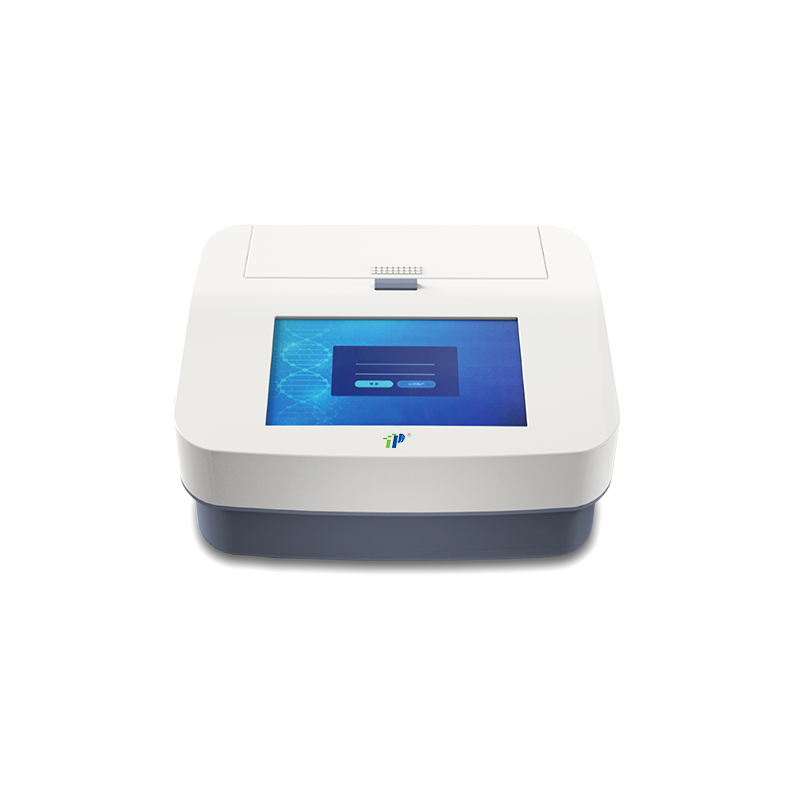

Portable Real-Time PCR Machine with Dual/Quad Fluorescence Channels | 16-Well qPCR Thermal Cycler
Sample capacity: 16×0.2mL PCR tube / 2×0.2mL strip tube
Reaction volume: 10~50μL Block Temp control range: 10~100°C
Hot lid temp control range: 30~105°C
Display: 7-inch color touch screen
Display: 7-inch color touch screen
Fluorescence channel: FAM/SYBR,VIC/HEX/TET or FAM/SYBR,VIC/HEX/TET,ROX,CY5/TAMRA
| Quantity: | |
|---|---|
-
TP16C2 / TP16C4
-
TOP
Main Features：
Can detect 16 samples at the same time, and the standard configuration is FAM/SYBR,VIC two-color fluorescence channels. Lightweight & compact and supports stand-alone operations. Adopts innovative liquid cycle refrigeration technology combined with peltier temperature control technology to achieve rapid heating and cooling. lt offers CT value analysis, absolute quantitative analysis, supports isothermalamplification and end point analysis.
Advantages:
1. Stand-alone use, compact design, easy to carry;
2. Humanized software design, simple operation;
3. Sensitive and efficient light signal detection system, with no crosstalk in multi-channel fluorescence and good sample detection stability;
4. Two-channel or four-channel fluorescence detection systems optional, can achieve multiple fluorescence quantitative detection;
5. Advanced semiconductor heating technology, fast heating and cooling, short detection time;
6. 32G data memory, excel format or pictures can be kept through U disk, easy management.
Main Features：
Can detect 16 samples at the same time, and the standard configuration is FAM/SYBR,VIC two-color fluorescence channels. Lightweight & compact and supports stand-alone operations. Adopts innovative liquid cycle refrigeration technology combined with peltier temperature control technology to achieve rapid heating and cooling. lt offers CT value analysis, absolute quantitative analysis, supports isothermalamplification and end point analysis.
Advantages:
1. Stand-alone use, compact design, easy to carry;
2. Humanized software design, simple operation;
3. Sensitive and efficient light signal detection system, with no crosstalk in multi-channel fluorescence and good sample detection stability;
4. Two-channel or four-channel fluorescence detection systems optional, can achieve multiple fluorescence quantitative detection;
5. Advanced semiconductor heating technology, fast heating and cooling, short detection time;
6. 32G data memory, excel format or pictures can be kept through U disk, easy management.
