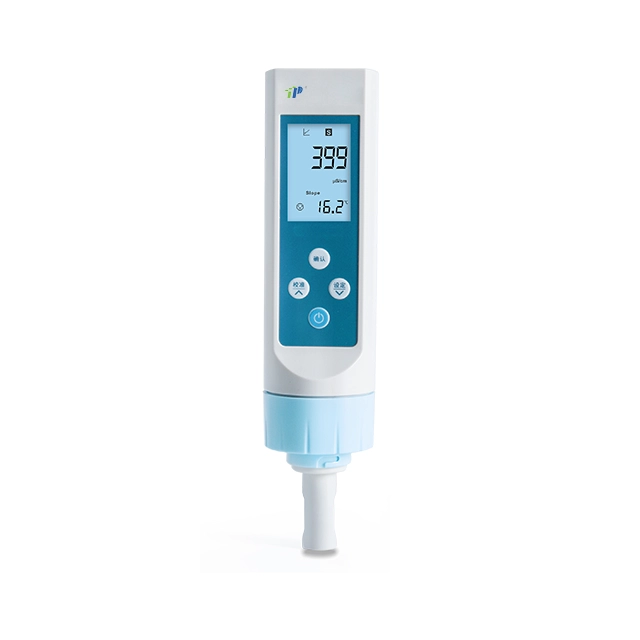

Portable Pen Conductivity Meter with Auto Calibration, IP65 Waterproof, Wide Range Conductivity & TDS Tester for Water Quality Analysis

Conductivity measurement range: 0.0 μS/cm to 20.00 mS/cm, resolution 0.1 μS/cm
Temperature range: 0.0℃ to 100.0℃, automatic/manual compensation with adjustable coefficient (0.00-10.00%)
TDS measurement range: 0.0 mg/L to 20.00 g/L with adjustable coefficient (0.40-1.00)
Salinity measurement range: 0.0 mg/L to 13.00 g/L
Auto range 1-point calibration, graphite electrode K=1.0 with anti-bubble design
IP65 waterproof rating with boat-shaped floating design and auto value lock
Dimensions: 180×40×45 mm; Weight: 95g; Power: 1×1.5V AAA battery

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PT-N300

  • TOP

Product Description:


Pen type conductivity tester, delicate and compact design concept, to save your space, clear and easy to read data interface, excellent anti-interference performance, has been calibrated point display, accurate measurement, easy to operate, combined with high brightness backlight illumination, it is your professional test tool for laboratory precision measurement of the conductivity value of the solution.


Widely used in scientific research institutes, tap water, hospital sewage, swimming pool water, domestic sewage, aquaculture water, environmental monitoring, petrochemical, papermaking, pharmaceutical, food, agriculture, electricity, industry, printing and dyeing, textile, leather, brewing, electronics, municipal government, colleges and universities, etc. and has been praised by the majority of users.

Product features:

1. 4-key simple operation, comfortable to hold, can be completed with one hand measurement.

2. Backlit screen multi-parameter display easy to read no operation 20 minutes automatic shutdown.

3. 1*1.5V AAA battery power supply replaceable battery and electrode.

4. Boat-shaped floating design IP65 waterproof rating Measuring value auto-lock function.

5. Ultra large measuring range:0.0uS/cm-20.00mS/cm, minimum reading:0.1uS/cm.

6. Auto range 1 point calibration: free calibration without restriction.

7. Graphite conductivity electrode K=1.0: anti-bubble design, accurate and stable anti-interference; easy to clean and maintain.

8. Automatic temperature compensation temperature coefficient can be adjusted: 0.00-10.00%.

9. Wide range of applications: to meet the micro-sample measurement, as well as field water quality testing.

10. Grip comfortable shell, easy to operate buttons, friendly operation interface, one-handed in the grasp.


Scope of application:

- Environmental protection

- Education and research

- Boiler water

- Aquaculture

- Waterworks

- Sewage treatment


Technical Parameters:


Basic parameters

Conductivity

Measuring range

0.0μS/cm(ppm)-20.00mS/cm(ppt)

Resolution

0.1μS/cm(ppm)-0.01mS/cm(ppt)

Accuracy

±2%F.S

Temperature

Measuring range

0.0℃~100.0℃/32-212℉

Usage range

0.0℃~60.0℃/32-140℉

Compensation range

0.0℃~60.0℃

Compensation

Auto/Manual

Coefficient

0.00-10.00% adjustable (2.00% from factory)

TDS

Measuring range

0.0mg/L (ppm)-20.00g/L (ppt)

Coefficient

0.40-1.00 adjustable (factory factor: 0.50)

Salinity

Measuring range

0.0mg/L(ppm)-13.00g/L(ppt)

Coefficient

0.60

Reference Temperature

15-30°C adjustable (25°C from factory)

Power supply

1*1.5V (AAA) No.7 battery

Calibration

Auto range 1 point calibration

Electrode

Φ13mm, K=1.0

Auto Backlight

1 minute

Auto Optical

20 minutes

Screen

20*30mm multi-line LCD backlit display

Environment

0℃~60℃; Relative humidity <90%

Dimension

(W*L*H)180*40*45mm

Weight

95g

Protection class

IP65
