PY-65
TOP

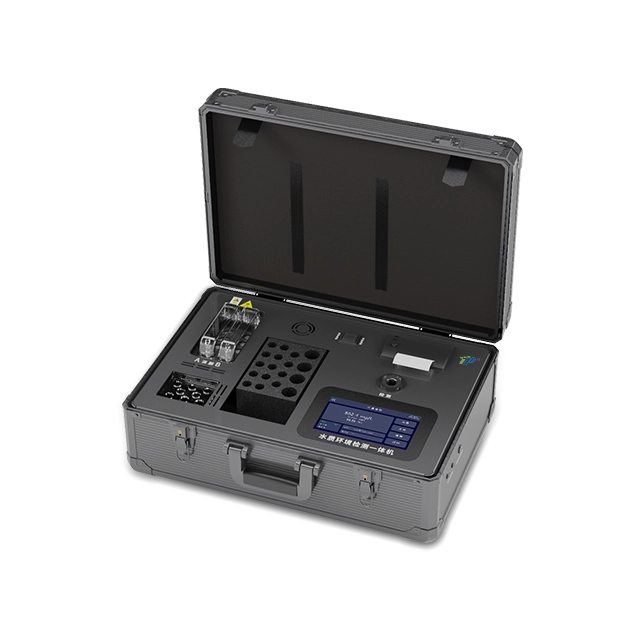

The Water and Environment Testing Machine (COD, ammonia nitrogen, total phosphorus, total nitrogen, heavy metals, etc.) is a rapid water quality analysis instrument. The instrument combines many functions, such as digestion, air-cooling, testing, printing, etc., and it is a complete ‘mobile small laboratory for water quality analysis’.
The instrument adopts an imported high-brightness quasi-parallel LED cold light source and an optical structure design, resulting in outstanding optical performance and detection effects. The Myriad operation interface, simple measurement method, and 7-inch touch-screen display and operation make the instrument user-friendly for both professionals and non-professionals.
The instrument is integrated into a toolbox with additional testing reagents, pipette guns, water samples, reagent tubes, test tube racks, etc., and has a powerful multi-parameter testing function, making it a powerful tool for emergency on-site testing, and is especially suited for environmental protection monitoring and on-site testing of the effects of water treatment.
The Water and Environment Testing Machine (COD, ammonia nitrogen, total phosphorus, total nitrogen, heavy metals, etc.) is a rapid water quality analysis instrument. The instrument combines many functions, such as digestion, air-cooling, testing, printing, etc., and it is a complete ‘mobile small laboratory for water quality analysis’.
The instrument adopts an imported high-brightness quasi-parallel LED cold light source and an optical structure design, resulting in outstanding optical performance and detection effects. The Myriad operation interface, simple measurement method, and 7-inch touch-screen display and operation make the instrument user-friendly for both professionals and non-professionals.
The instrument is integrated into a toolbox with additional testing reagents, pipette guns, water samples, reagent tubes, test tube racks, etc., and has a powerful multi-parameter testing function, making it a powerful tool for emergency on-site testing, and is especially suited for environmental protection monitoring and on-site testing of the effects of water treatment.
Product features:
-High integration
-High strength
-High efficiency
-Dual temperature and dual control
-Fast cooling
-Comprehensive testing indicators
-Specialised reagents
-Data transmission
-Real-time printing
-Large data storage capacity
-Strong battery life
-IP65 waterproof
Application Fields
Widely used in scientific research institutes, sewage treatment, environmental monitoring, petrochemical, papermaking, pharmaceutical, printing and dyeing, textile, leather, brewing, electronics, municipal government, colleges and universities and other industries.
- Research Institutes
- Sewage treatment
- Environmental testing
- Petrochemical
Product features:
-High integration
-High strength
-High efficiency
-Dual temperature and dual control
-Fast cooling
-Comprehensive testing indicators
-Specialised reagents
-Data transmission
-Real-time printing
-Large data storage capacity
-Strong battery life
-IP65 waterproof
Application Fields
Widely used in scientific research institutes, sewage treatment, environmental monitoring, petrochemical, papermaking, pharmaceutical, printing and dyeing, textile, leather, brewing, electronics, municipal government, colleges and universities and other industries.
- Research Institutes
- Sewage treatment
- Environmental testing
- Petrochemical
Technical Parameters:
Testing items | COD | Ammonia Nitrogen | Total Phosphorus | Total Nitrogen |
Test Methods | Potassium dichromate rapid elimination spectrophotometric method Oxygen injection with potassium permanganate (alkaline) | Salicylic Acid Spectrophotometry Nano Reagent Spectrophotometry | Ammonium molybdate-antichymotryptic acid spectrophotometric method | Muscimol spectrophotometry |
Detection range | 10-15000mg/L | 0.02-100mg/L | 0.02-20mg/L | 0.5-500mg/L |
Lower limit of detection | 10mg/L | 0.02mg/L | 0.02mg/L | 0.5mg/L |
Abatement Temp. | 165℃,20min | insoluble | 150℃,15min | 125℃,30min |
Tolerance | ≤±5%or±4mg/L | ≤±5%or±0.1mg/L | ≤±5%or±0.04mg/L | ≤±5%or±0.4mg/L |
Repeatability | ≤±3% | ≤±3% | ≤±3% | ≤±3% |
Detection parameters | |
Absorbance Measurement Range | 0-3.5Abs |
Measurement Accuracy | ≤±5% |
Repeatability | ≤±3% |
Optical Stability | ≤0.002Abs/30min |
Absorbance resolution | 0.001Abs |
Operational Repeatability | ≤±0.005Abs |
Data storage | 10000 items |
Light source life | 100,000 hours |
Power supply parameters | |
Instrument Power | Li-ion battery or DC 12V power adapter 12V/20AH |
Rated power | 150W |
Elimination times | 2 times (battery powered) |
Charging time | 10 hours |
Other parameters | |
Waterproof rating | IP65 |
Temperature | Temperature 0-50°C |
Humidity | Relative humidity 0-80 per cent |
Dimension | 530×396×205mm |
Weight | 13.3kg |
Elimination parameters | |
Number of samples to be digested at the same time | 8 (4 groups, two groups can be set different temperatures) |
Ablation temperature control range | 50-180℃ arbitrary setting |
Temperature control accuracy | ±0.1℃ |
Temperature Tolerance | ±0.5℃ |
Pore size | 16mm tube |
Heating speed | 15 minutes @165℃ |
Dissolution time | 0-120 minutes arbitrary setting |
Technical Parameters:
Testing items | COD | Ammonia Nitrogen | Total Phosphorus | Total Nitrogen |
Test Methods | Potassium dichromate rapid elimination spectrophotometric method Oxygen injection with potassium permanganate (alkaline) | Salicylic Acid Spectrophotometry Nano Reagent Spectrophotometry | Ammonium molybdate-antichymotryptic acid spectrophotometric method | Muscimol spectrophotometry |
Detection range | 10-15000mg/L | 0.02-100mg/L | 0.02-20mg/L | 0.5-500mg/L |
Lower limit of detection | 10mg/L | 0.02mg/L | 0.02mg/L | 0.5mg/L |
Abatement Temp. | 165℃,20min | insoluble | 150℃,15min | 125℃,30min |
Tolerance | ≤±5%or±4mg/L | ≤±5%or±0.1mg/L | ≤±5%or±0.04mg/L | ≤±5%or±0.4mg/L |
Repeatability | ≤±3% | ≤±3% | ≤±3% | ≤±3% |
Detection parameters | |
Absorbance Measurement Range | 0-3.5Abs |
Measurement Accuracy | ≤±5% |
Repeatability | ≤±3% |
Optical Stability | ≤0.002Abs/30min |
Absorbance resolution | 0.001Abs |
Operational Repeatability | ≤±0.005Abs |
Data storage | 10000 items |
Light source life | 100,000 hours |
Power supply parameters | |
Instrument Power | Li-ion battery or DC 12V power adapter 12V/20AH |
Rated power | 150W |
Elimination times | 2 times (battery powered) |
Charging time | 10 hours |
Other parameters | |
Waterproof rating | IP65 |
Temperature | Temperature 0-50°C |
Humidity | Relative humidity 0-80 per cent |
Dimension | 530×396×205mm |
Weight | 13.3kg |
Elimination parameters | |
Number of samples to be digested at the same time | 8 (4 groups, two groups can be set different temperatures) |
Ablation temperature control range | 50-180℃ arbitrary setting |
Temperature control accuracy | ±0.1℃ |
Temperature Tolerance | ±0.5℃ |
Pore size | 16mm tube |
Heating speed | 15 minutes @165℃ |
Dissolution time | 0-120 minutes arbitrary setting |
