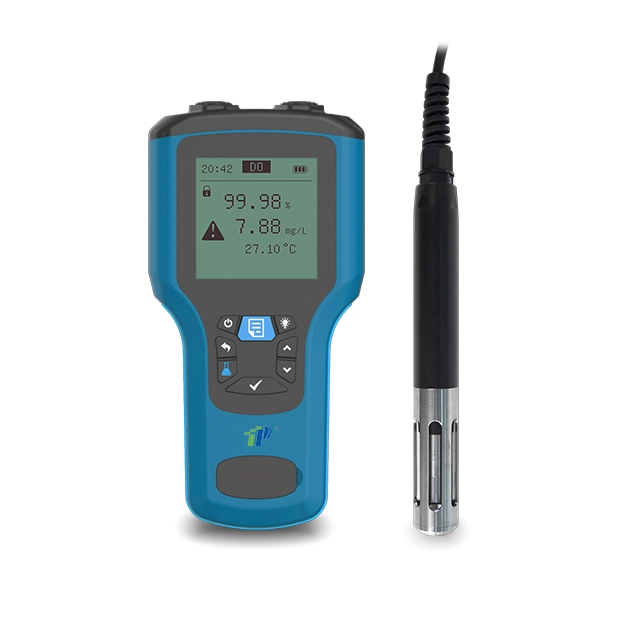

Portable Dissolved Oxygen Meter with Dual Channel, IP67 Waterproof, Data Storage & USB Rechargeable for Laboratory & Field Use

Measurement Range: 0-20 mg/L dissolved oxygen or 0-200% saturation
Accuracy: ±1% with resolution of 0.01 mg/L
Response Time: 10 seconds
Sensor Protection: IP68 waterproof sensor, IP67 instrument
Data Storage: Supports up to 50,000 measurements
Power Supply: USB charging & 4 x AA batteries
Display: 3.3-inch monochrome LCD with backlight

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PY-B12

  • TOP

Portable Dissolved Oxygen Tester, delicate and compact design concept, saving space for you, clear and easy-to-read data interface, excellent anti-interference performance, has been calibrated point display, accurate measurement, easy to operate, combined with high-brightness backlight illumination, it is your professional test tool for laboratory precision measurement of dissolved oxygen value of the solution.


Widely used in scientific research institutes, tap water, hospital sewage, swimming pool water, domestic sewage, aquaculture water, environmental monitoring, petrochemical, papermaking, pharmaceutical, food, agriculture, electricity, industry, printing and dyeing, textile, leather, brewing, electronics, municipal government, colleges and universities, etc. and has been praised by the majority of users.

Product features:


- Chinese/English switching

The instrument supports Chinese and English switching to meet more customer needs.

- Support customisation

Support ODM co-operation and customisation.

- Data export

Support data export function, connect to computer and generate table data automatically.

- Dual detection channel

Dual detection channel design, can be expanded to add a digital sensor.

- Backlight

The instrument has its own backlight function.

- Waterproof and dustproof

The instrument is waterproof to IP67 and the sensor is waterproof to IP68.

- USB/battery power supply

USB charging and battery dual power supply design, to meet the needs of customers indoor and outdoor use of dual demand.

- Automatic Alarm

Automatic alarm setting, customers can set the alarm value according to the actual use of the demand. Multi-function

- Multiple Functions

One-key data storage function, automatic air pressure compensation function, automatic timer shutdown function.

- Data storage

Measurement storage data can be up to 50,000 items.


Technical Parameters:


Display

3.3-inch monochrome LCD display

Transport and storage conditions

Temperature: -15~65℃; Relative humidity: 5~85%RH (no condensation)

Operating temperature

-10~60℃

Data storage

Support

LANGUAGES

Chinese/English

Barometric pressure measurement

50~115kPa

Protection class

IP67

Power supply

4 x 5 batteries

Relative humidity

10~85%RH (no condensation)

Weight

420g

Dimension

200mm*101mm*36mm


Sensor technical parameters

Dissolved Oxygen Range

0-20 mg/L or 0-200% saturation

Resolution

0.01mg/l

Response Time

10 sec

Protection Grade

IP68

Dissolved Oxygen Accuracy

±1%

Sensor Drift

<1% per year

Temperature Range

0~50℃

Temperature Accuracy

±0.2℃

Temperature Sensor

NTC

Housing Diameter

22mm

Housing Length

218.6 mm

Probe Cable Length

5m as standard (customisable)

Calibration

One or two point calibration

Fluorescent Cap Life

Guaranteed for one year (under normal use)

Sensor Housing Material

POM and stainless steel
