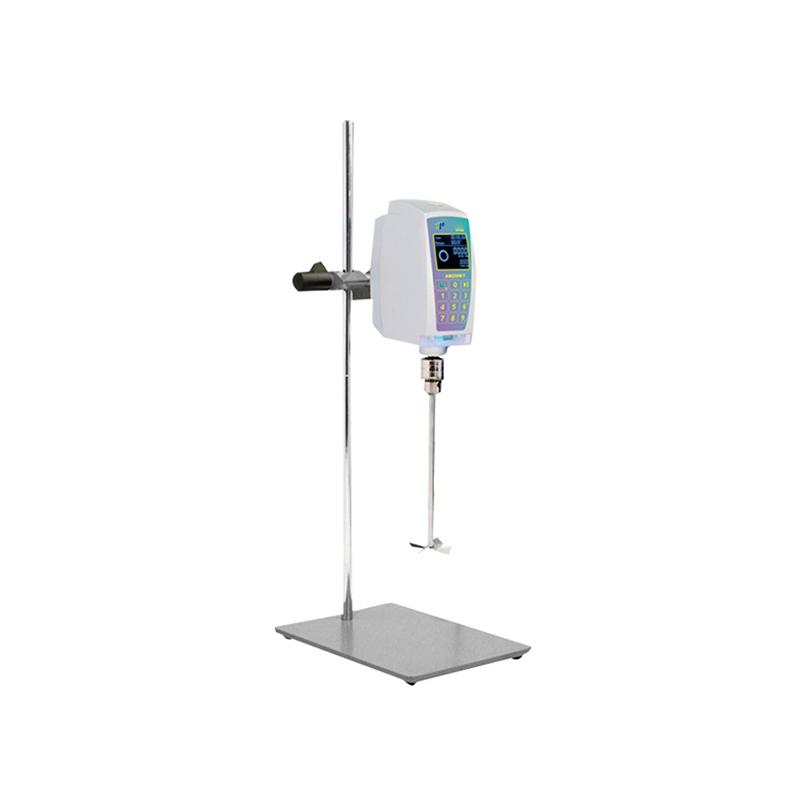

PM250W-T Laboratory Overhead Stirrer – 250W Brushless DC Mixer, 30–2000rpm, 40L Capacity, Touch Control, High Viscosity Mixing up to 40000mPa·s
You are here: home » Products » Hotplates & Stirrers » Overhead Stirrers / Mechanical Stirrers » PM250W-T Laboratory Overhead Stirrer – 250W Brushless DC Mixer, 30–2000rpm, 40L Capacity, Touch Control, High Viscosity Mixing up to 40000mPa·s

Product Category

loading

PM250W-T Laboratory Overhead Stirrer – 250W Brushless DC Mixer, 30–2000rpm, 40L Capacity, Touch Control, High Viscosity Mixing up to 40000mPa·s

Drive type: Brushless DC motor
Output torque of mixing shaft: 50.2N.cm
Output peak torqueof mixing shaft: 150N.cm
Speed regulation range-no load: 30-2000 rpm
Timing control range/Impeller material: 1~6000/SS316L stainless steel
Clamping range of rotary chuck: 2~13mm
Mixing rod penetration diameter (shutdown): 10mm
Treatment capacity(H2O): 40L
Stirring viscosity: 0~40000mPa.s

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PM250W-T

  • TOP

It is suitable for mixing liquid from low viscosity to high viscosity. The mixer has reasonable and compact structure,   ultra-low noise and maintenance free. The stirring speed is controlled by microprocessor,which can timely and effectively compensate the speed change caused by load change and power supply voltage fluctuation. The constant speed is reliable. Built in automatic overload protection device to ensure the safety of long-term and high-load continuous operation of the experiment; the rotary control of the running state makes the operation of the experiment easier, and the mixing speed can be adjusted steplessly to meet the requirements of adjusting the mixing speed at any time in the experiment;the digital display setting and the actual output mixing speed ensure the intuitive acquisition of experimental data.


Machine parameters:

Product Model

PM250W-T

Rated voltage

100~240

Rated frequency

50/60HZ

Input power

368W

Output power

250W

Drive type

Brushless DC motor

Output torque of mixing shaft

50.2N.cm

Output peak torqueof mixing shaft

150N.cm

Working system

S1(Continuity)

Operation controlmethod

Capacitive touch keyboard

Speed regulation range-no load

30-2000rpm

Speed control type

Infinity

Running dynamic display

LCD

Timing control range/Impeller material

1~6000/SS316L stainless steel

Fixing methodof mixingbar

Quick type chuck

Clamping range of rotary chuck

2~13mm

Mixing rod penetration diameter(shutdown)

10mm

Impellerconfiguration

Four blade screw agitator

Treatment capacity(H2O)

40L

Stirring viscosity

0~40000mPa.s

Allowable ambient temperature

No more than 40℃

Allowable relative humidity

No morethan 80%

Machine overall size

250*350*835mm

Total weight

14.5kg

Protection level

IP40
