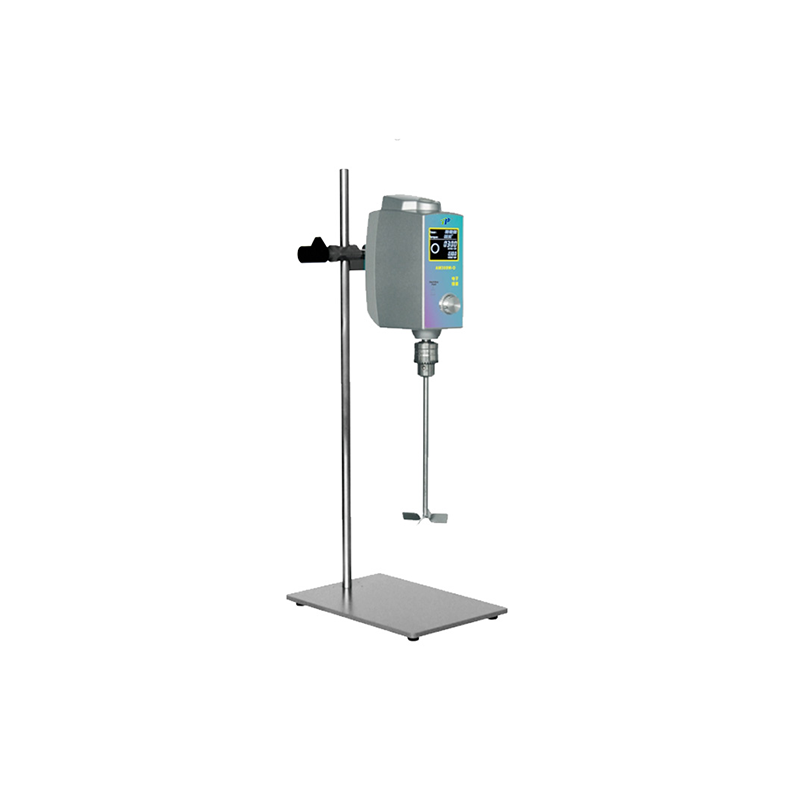

PM200W-0 / PM300W-0 Laboratory Overhead Stirrer – Brushless DC Motor, 30–2000rpm, High Viscosity Mixing, 30–50L Capacity, Digital Display, Stepless Speed Control

Drive type: Brushless DC motor
Output torque of mixing shaft: 40.2N.cm / 60.1N.cm (depend on models)
Output peak torque of mixing shaft: 120N.cm / 180N.cm
Speed regulation range-no load: 30 ~ 2000 rpm
Timing control range: 1~6000 min
Clamping range of rotary chuck: 2~13mm
Mixing rod penetration diameter(shutdown): 10mm
Treatment capacity(H2O)//Impeller material: 30/SS316L stainless steel / 50/SS316L stainless steel (depend on models)
Stirring viscosity: 0~30000mPa.s / 0~50000mPa.s (depend on models)

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PM200/300W-0

  • TOP

It is suitable for mixing liquid from low viscosity to high viscosity. The mixer has reasonable and compact structure, ultra-low noise and maintenance free. The stirring speed is controlled by microprocessor, which can timely and effectively compensate the speed change caused by load change and power supplyvoltage fluctuation. The constant speed is reliable. Built in automatic overload protection device to ensure the safety of long-term and high-load continuous operation of the experiment; the rotary control of the running state makes the operation of the experiment easier, and the mixing speed can be adjusted steplessly to meet the requirements of adjusting the mixing speed at any time in the experiment; the digital display setting and the actual output mixing speed ensure the intuitive acquisition of experimental data.


Machine parameters:

Technical parameter

PM200W-0

PM300W-0

Rated voltage

100~240

100~240

Rated frequency

50/60HZ

50/60HZ

Input power

295W

440W

Output power

200W

300W

Drive type

Brushless DC motor

Brushless DC motor

Output torque of mixing shaft

40.2N.cm

60.1N.cm

Output peak torque of mixing shaft

120N.cm

180N.cm

Working mode

S1(continuous)

S1(continuous)

Operation control method

Combined control knob

Combined control knob

Speed regulation range-no load

30~2000rpm

30~2000rpm

Speed control type

Infinity

Infinity

Running dynamic display

LCD

LCD

Timing control range

1~6000min

1~6000min

Fixing method of mixing rod

Quick chuck

Quick chuck

Clamping range of rotary chuck

2~13mm

2~13mm

Mixing rod penetration diameter(shutdown)

10mm

10mm

Agitator configuration(SS 316Lstainless steel)

Four blade screw impeller

Four blade screw impeller

Treatment capacity(H2O)//Impeller material

30/SS316L stainless steel

50/SS316L stainless steel

Stirring viscosity

0~30000mPa.s

0~50000mPa.s

Allowable ambient temperature

No mare than 40℃

No mare than 40℃

Allowable relative humidity

No mare than 80%

No marethan 80%

machine overallsize

215*310*720mm

215*310*720mm

Overall weight

14.5kg

14.5kg
