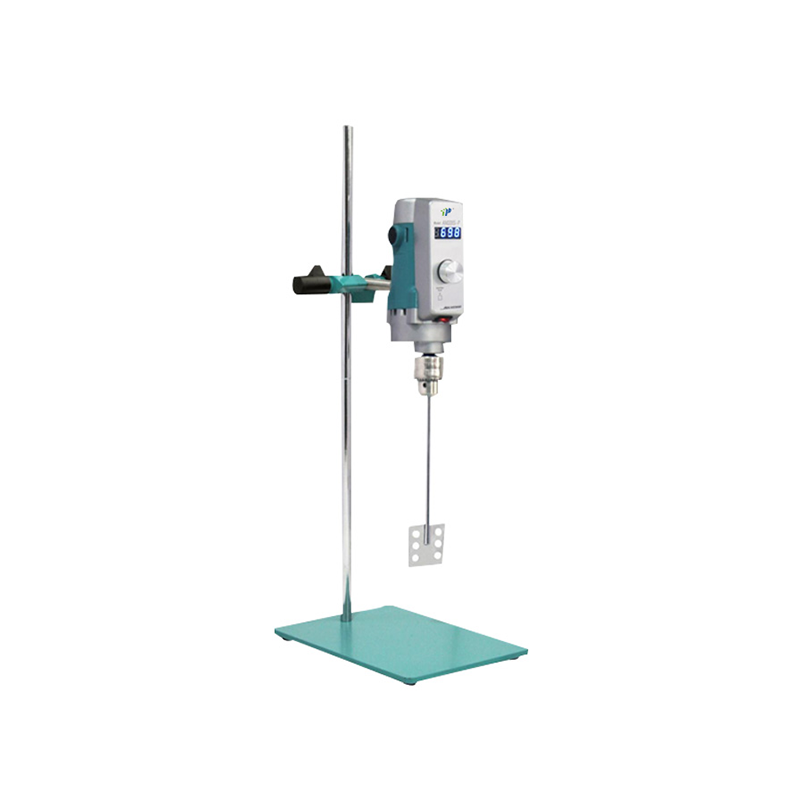

PM200S-H / PM300S-H High Torque Overhead Stirrer – Brushless DC Motor, 100–1800rpm, For 50–40,000ml, Up to 50,000mPa.s Viscosity, 2–13mm Chuck, Digital Display
You are here: home » Products » Hotplates & Stirrers » Overhead Stirrers / Mechanical Stirrers » PM200S-H / PM300S-H High Torque Overhead Stirrer – Brushless DC Motor, 100–1800rpm, For 50–40,000ml, Up to 50,000mPa.s Viscosity, 2–13mm Chuck, Digital Display

Product Category

loading

PM200S-H / PM300S-H High Torque Overhead Stirrer – Brushless DC Motor, 100–1800rpm, For 50–40,000ml, Up to 50,000mPa.s Viscosity, 2–13mm Chuck, Digital Display

Output torque of mixing shaft: 95.5N.cm / 143.3N.cm (depend on models)
Speed regulation range-no load: 100-1800rpm
Torque of chuck: 95N.cm / 143N.cm (depend on models)
Clamping range of rotary chuck: 2~13mm
Treatment capacity(H2O): 50~30000ml/ 50~40000ml (depend on models)
Maximum treatment viscosity: 0~30000mPa.s/ 0~50000mPa.s

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PM200/300S-H

  • TOP

It is suitable for mixing liquid from low viscosity to high iscosity. The mixer has reasonable and compact structure, ltra-low noise and maintenance free. The stirring speed is ontrolled by microprocessor, which can timely and effectively compensate the speed change caused by load changend power supply voltage fluctuation. The constant speed 5 reliable. Built in automatic overload protection device to ensure the safety of long-term and high-load continuous peration of the experiment; the rotary control of the unning state makes the operation of the experiment easier, and the mixing speed can be adjusted steplessly to meethe requirements of adjusting the mixing speed at any time the experiment; the digital display setting and the actual utput mixing speed ensure the intuitive acquisition of experimental data.



Machine parameters:

Product Model

PM200S-H

PM300S-H

Rated voltage

220

220

Rated frequency

50/60HZ

50/60HZ

Input power

340W

510W

Output power

200W

300W

Output torque of mixing shaft

95.5N.cm

143.3N.cm

Workingmode

S1(Continuity)

S1(Continuity)

Operation control method

Combined control knob

Combined control knob

Speed regulation range-no load

100~1800rpm

100~1800rpm

Speed control type

Infinity

Infinity

Running dynamic display

LED(Digital)

LED(Digital)

Timing control range

1~1000min

1~1000min

Speeddynamic detection

Yes

Yes

Speed memory function

Yes

Yes

Overload protection function

Yes

Yes

Fixingmethodofmixing bar

Quick type chuck

Quick type chuck

Torque of chuck

95N.cm

143N.cm

Clamping range of rotary chuck

2~13mm

2~13mm

Impeller configuration

Fan blade agitator

Fan blade agitator

Treatment capacity (H2O)

50~30000ml

50~40000ml

Maximum treatment viscosity

0~30000mPa.s

0~50000mPa.s

Allowableambient temperature

No more than 40℃

No more than 40℃

Allowable relative humidity

No more than 80%

No more than 80%

machineoverall size

215*310*720mm

215*310*720mm

Total weight

9kg

9kg
