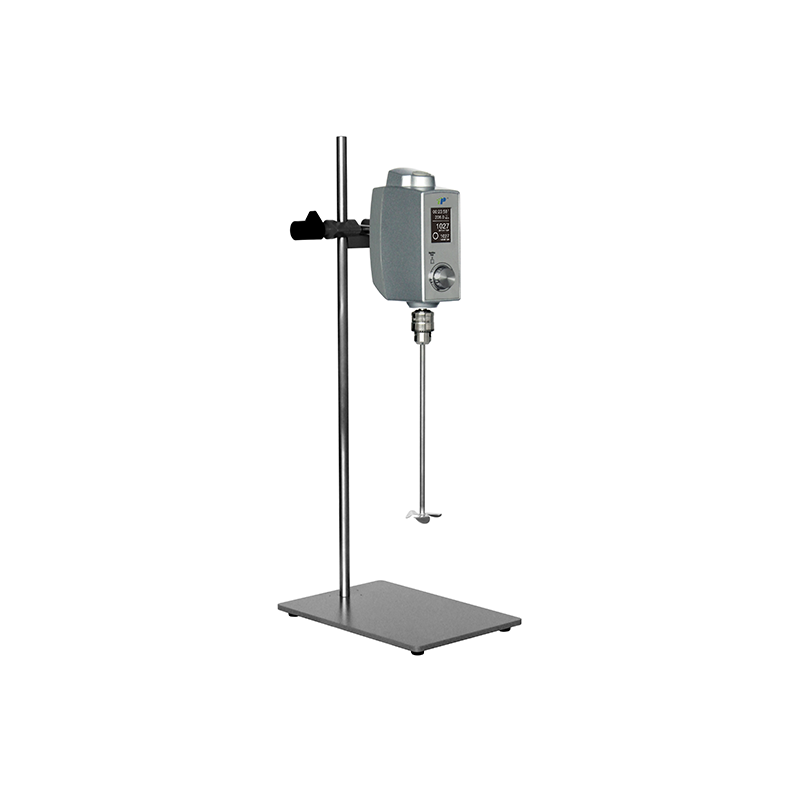

PM100W-O Laboratory Overhead Mixer – 13.1N·cm Torque, Touchscreen Control, 20L, Brushless DC Motor for Medium-Viscosity Liquids

Drive type: Brushless DC motor
Output torque ofmixing shaft: 13.1N.cm
Output peak torque of mixing shaft: 39N.cm
Speed regulation range-no load: 30~2000 rpm
Timing control range: 1~6000min
Clamping range of rotary chuck: 2~10mm
Mixing rod penetration diameter (shutdown): 8mm
Treatment capacity (H2O): 20L
Stirring viscosity: 0~20000mPa.s

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PM100W-O

  • TOP

It is suitable for mixing liquid from low viscosity to high viscosity. The mixer has reasonable and compact structure, ultra-low noise and maintenance free. The stirring speed is controlled by microprocessor, which can timely and effectively compensate the speed change caused by load change and power supply voltage fluctuation. The constant speed is reliable. Built in automatic overload protection device to ensure the safety of long-term and high-load continuous operation of the experiment; the rotary control of the running state makes the operation of the experiment easier, and the mixing speed can be adjusted steplessly to meet the requirements of adjusting the mixing speed at any time in the experiment; the digital display setting and the actual output mixing speed ensure the intuitive acquisition of experimental data.


Machine parameters:

Product Model

PM100W-O

Rated voltage

100~240

Rated frequency

50/60

Input power

162W

Output power

110W

Drive type

Brushless DC motor

Output torque ofmixing shaft

13.1N.cm

Output peak torque of mixing shaft

39N.cm

Working system

S1(Continuity)

Operation control method

Capacitive Touch Keyboard

Speed regulation range-no load

30-2000rpm

Speed control type

Infinity

Running dynamic display

LCD

Timing control range

1~6000min

Fixing method of mixing bar

Quick type chuck

Clamping range of rotary chuck

2~10mm

Mixing rod penetration diameter (shutdown)

8mm

Impeller configuration

Four blade screw agitator

Treatment capacity (H2O)

20L

Stirring viscosity

0~20000mPa.s

Allowable ambient temperature

No more than 40℃

Allowable relative humidity

No more than 80%

Machine overall size

215*310*720mm

Total weight

7.6kg

Protection level/Impeller material

IP40/SS316L stainless steel
