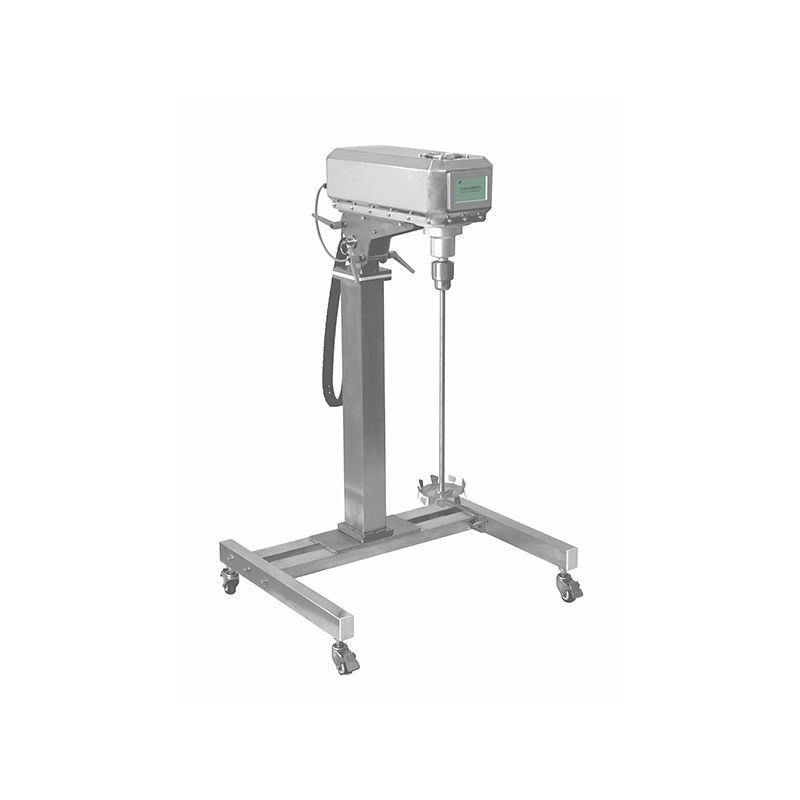

PM1000 High Torque Overhead Stirrer – 1500W Brushless DC Motor Mixer, 200L Capacity, 50–2000rpm, 2148.5N·cm Peak Torque, Touchscreen Control
You are here: home » Products » Hotplates & Stirrers » Overhead Stirrers / Mechanical Stirrers » PM1000 High Torque Overhead Stirrer – 1500W Brushless DC Motor Mixer, 200L Capacity, 50–2000rpm, 2148.5N·cm Peak Torque, Touchscreen Control

Product Category

loading

PM1000 High Torque Overhead Stirrer – 1500W Brushless DC Motor Mixer, 200L Capacity, 50–2000rpm, 2148.5N·cm Peak Torque, Touchscreen Control

Drive type: Brushless DCmotor
Output torque of mixing shaft: 716.2N.cm
Output peak torqueof mixing shaft: 2148.5N.cm
Speed regulation range-no load: 50-2000rpm
Timing control range: 1~6000min
Stirring viscosity: 100000mPa.s
Clamping range of rotary chuck: 3~16mm
Treatment capacity(H2O)/Impeller material: 200/SS316L stainless steel
Up and down travel of mixing machine: 500mm

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PM1000

  • TOP

It is suitable for mixing liquid from low viscosity to high viscosity. The mixer has reasonable and compact structure, ultra-low noise and maintenance free.The stirring speed is controlled by microprocessor, which can timely and effectively compensate the speed change caused by load change and power supply voltage fluctuation. The constant speed is reliable. Built in automatic overload protection device to ensure the safety of long-term and high-load continuous operation of the experiment;the rotary control of the running state makesthe operation ofthe experiment easier, and the mixing speed can be adjusted steplessly to meet the requirements of adjusting the mixing speed at any time in the experiment; the digital display setting and the actual output mixing speed ensure the intuitive acquisition of experimental data.


Machine parameters:

Product Model

PM1000

Rated voltage

220

Rated frequency

50/60HZ

Input power

2200W

Output power

1500W

Drive type

Brushless DCmotor

Output torque of mixing shaft

716.2N.cm

Output peak torqueof mixing shaft

2148.5N.cm

Working system

S1(Continuity)

Operation control method

Touch screen control mode

Speed regulation range-no load

50-2000rpm

Speed control type

Infinity

Running dynamic display

LCD

Timing control range

1~6000min

Fixing method of mixing bar

Quick type chuck

Clamping range of rotary chuck

3~16mm

Mixing rod penetration diameter (shutdown)

NO

Impeller configuration

Dissolving agitator

Treatment capacity(H2O)/Impeller material

200/SS316L stainless steel

Stirring viscosity

100000mPa.s

Allowable ambient temperature

No more than 40℃

Allowable relative humidity

No more than 80%

Machine overall size

800*730*1250mm

Total weight

52kg

Protection level

IP40

Up and down travel of mixing machine

500mm
