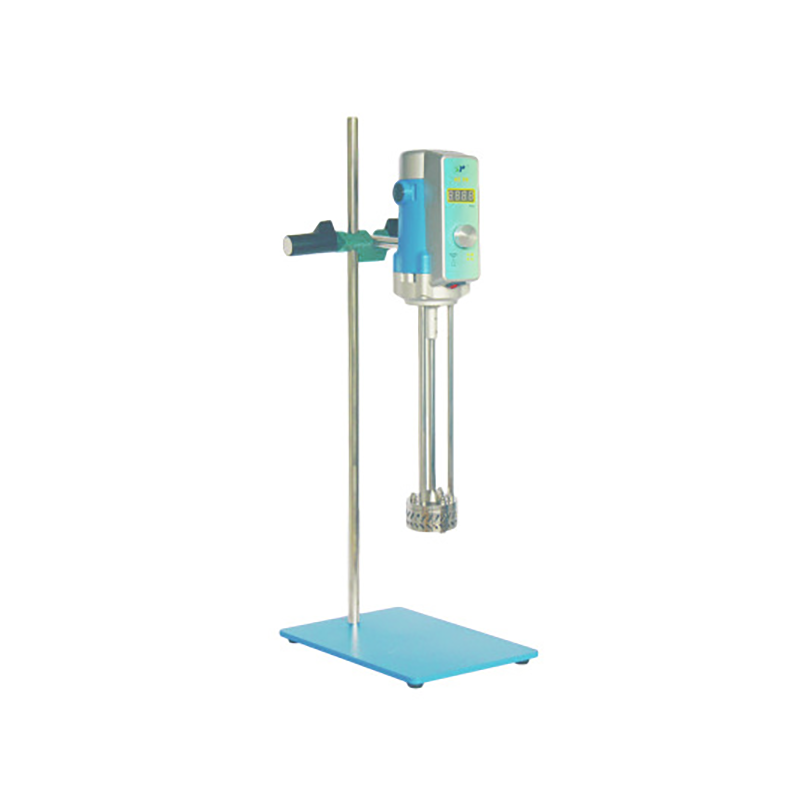

PE70 High-Shear Laboratory Homogenizer & Dispersing Emulsifier | 1000–14000rpm, 40L Capacity, Digital Control

Speed Range: 1000–14000 rpm (Stepless speed control with digital display)
Processing Capacity (H₂O): 2000–40000 ml
Max Viscosity: 8000 mPa·s
Output Power: 570W | Max Torque: 38.5 N·cm
Working Head Material & Diameter: SS 316L stainless steel, Ø70 mm
Control Features: Speed memory, timing (1–1000 min), overload protection
Dimensions & Weight: 715×290×160 mm | 9.6 kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PE70

  • TOP

PE70 dispersing and homogenizing machine adopts high-speed motor drive, suitable for low to medium and high viscosity liquid stirring and mixing, crushing particles in the liquid medium shear emulsification and so on. The drive output and working head are positioned in an integral structure, which makes the running condition more stable; the working head is made of high-quality stainless steel, with a wide range of experimental applications; the running speed is controlled by a microprocessor, which has the capability of instantly compensating for the speed changes caused by the load changes and power supply fluctuations, and is reliable with a constant speed; the built-in soft-starting and automatic overload protection protects the experiments from running continuously at a certain time at full load; the speed is infinitely adjustable to meet the requirements of the running speed in the experiments. The stepless adjustment of rotational speed can fulfill the correction of running speed at any time in the experiment. Digital display speed intuitive, experimental data collection to provide convenient; running timer control function, to ensure that the timing of the experiment is effectively controllable.

Machine parameters:

Rated voltage

AC220±10%

Rated frequency

50/60

Input power

950

output power

570

Rated torque

3.92N.m

Working system

S1(continuous)

Operation control method

Combined control knob

Speed regulation range-no load

1000~14000rpm

Speed control type

Infinity

Timing control range

1~1000min

Digital speed display

LED(digital)

Maximum processing viscosity

8000mPa.s

Treatment capacity(H2O)

2000~40000ml

Speed memory function

yes

Overload protection function

yes

Maximum torque of working head

38.5N.cm

Working head diameter/texture of material

70/SS 316L

Maximum linear velocity

22s/m

Allowableambient temperature

No more than 40 ℃

Allowable relative humidity

No more than 80%

Overall dimension (mm)

715*290*160mm

Total weight(kg)

9.6kg(net weight)
