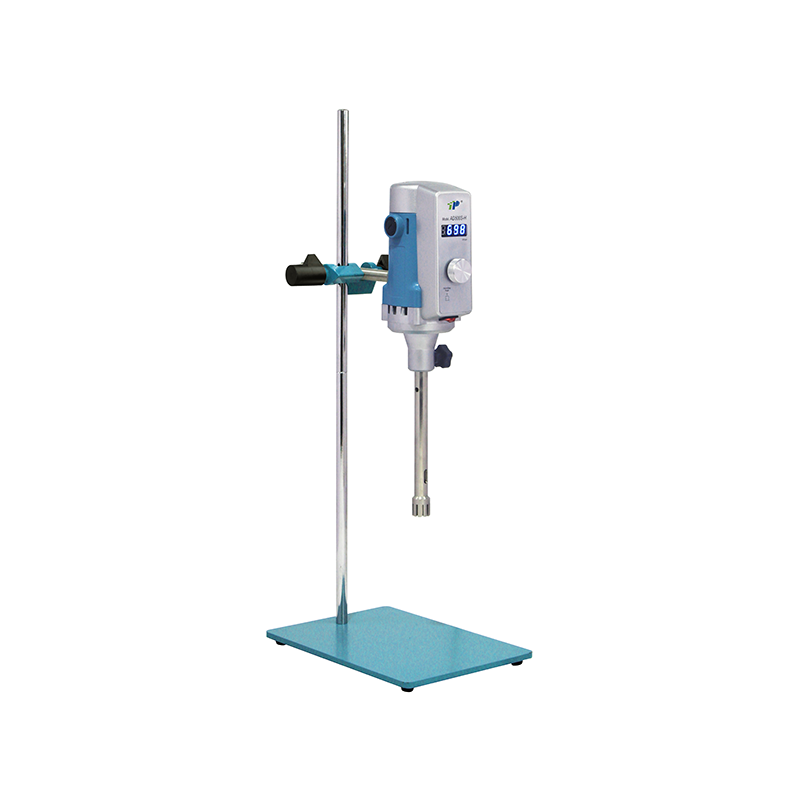

PD500S-H
TOP
The novel design concept and advanced manufacturing technology have created this series of products. This series of dispersing homogenizer is easy to operate, superior performance, low noise, and can run for a long time. The working head is detachable, which is convenient for replacement, cleaning and sterilization. The body of the machine is made of high quality engineering plastic injection molding, which ensures the safety and reliability in use. Different specifications of the working head configuration can meet the different requirements of the work. Four different power design, can handle 13000ml samples. Easily meet a variety of high-demand dispersion, homogenization, homogenization, experiments, suitable for biopharmaceuticals, genetic research, tissue fragmentation, cell slurry, pathological analysis, dairy homogenization, polymerization reaction and other experiments and production areas.
The novel design concept and advanced manufacturing technology have created this series of products. This series of dispersing homogenizer is easy to operate, superior performance, low noise, and can run for a long time. The working head is detachable, which is convenient for replacement, cleaning and sterilization. The body of the machine is made of high quality engineering plastic injection molding, which ensures the safety and reliability in use. Different specifications of the working head configuration can meet the different requirements of the work. Four different power design, can handle 13000ml samples. Easily meet a variety of high-demand dispersion, homogenization, homogenization, experiments, suitable for biopharmaceuticals, genetic research, tissue fragmentation, cell slurry, pathological analysis, dairy homogenization, polymerization reaction and other experiments and production areas.
Machine parameters:
Product model | PD500S-H |
Rated voltage (V) | AC220 |
Rated frequency(Hz) | 50/60 |
Input power(W) | 850 |
Output power(W) | 500 |
Rated torque(N.cm) | 17.1 |
Operation control method | Combined control knob |
Speed regulation range-no load (RPM) | 2000~28000 |
Running dynamic display | LED (digital) |
Working head configuration specification(G) | 12/18/24/30/36 |
Timing control range(min) | 1~1000 |
Overall dimension(mm) | 715*290*160 |
Total weight(kg) | 8.7 |
Machine parameters:
Product model | PD500S-H |
Rated voltage (V) | AC220 |
Rated frequency(Hz) | 50/60 |
Input power(W) | 850 |
Output power(W) | 500 |
Rated torque(N.cm) | 17.1 |
Operation control method | Combined control knob |
Speed regulation range-no load (RPM) | 2000~28000 |
Running dynamic display | LED (digital) |
Working head configuration specification(G) | 12/18/24/30/36 |
Timing control range(min) | 1~1000 |
Overall dimension(mm) | 715*290*160 |
Total weight(kg) | 8.7 |
Work Head Parameters:
Working head specification(g) | 12 | 18 | 24 | 30 | 36 |
Mixing capacity(H₂O ml) | 30~800 | 50~1500 | 80~5000 | 100~8000 | 50~13000 |
Suitable for maximum viscosity(MPa.S) | 5000 | 5000 | 5000 | 5000 | 5000 |
Maximum operating temperature(℃) | 120 | 120 | 120 | 120 | 120 |
Overall length(mm) | 215 | 242 | 245 | 255 | 258 |
Stator diameter(mm) | 12 | 18 | 24 | 30 | 36 |
Working head material | SS316L | SS316L | SS316L | SS316L | SS316L |
Maximum linear speed of rotor(M/s) | 12 | 15 | 18 | 22 | 26 |
Minimum /maximum immersion height(mm) | 35/150 | 45/160 | 50/165 | 60/170 | 65/175 |
Work Head Parameters:
Working head specification(g) | 12 | 18 | 24 | 30 | 36 |
Mixing capacity(H₂O ml) | 30~800 | 50~1500 | 80~5000 | 100~8000 | 50~13000 |
Suitable for maximum viscosity(MPa.S) | 5000 | 5000 | 5000 | 5000 | 5000 |
Maximum operating temperature(℃) | 120 | 120 | 120 | 120 | 120 |
Overall length(mm) | 215 | 242 | 245 | 255 | 258 |
Stator diameter(mm) | 12 | 18 | 24 | 30 | 36 |
Working head material | SS316L | SS316L | SS316L | SS316L | SS316L |
Maximum linear speed of rotor(M/s) | 12 | 15 | 18 | 22 | 26 |
Minimum /maximum immersion height(mm) | 35/150 | 45/160 | 50/165 | 60/170 | 65/175 |
