PD300L-SH
TOP

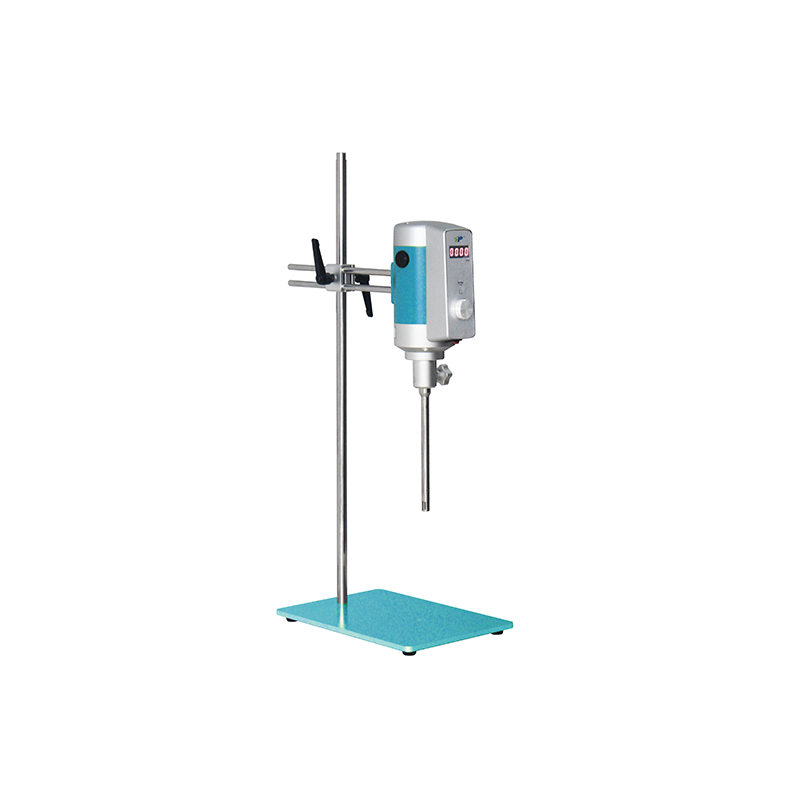

PD300L-SH series laboratory dispersing and homogenizing machine is driven by compact series-excitation miniature high-speed motor, which is composed of high-speed motor, homogenizing working head and speed controller.
The driving host adopts precision die-casting aluminum alloy as the body, which is stable in operation; the working head is made of stainless steel, which has a wide range of experimental applications; the rotational speed is controlled by a microprocessor, which can effectively compensate for the changes in rotational speed caused by loading and power supply voltage fluctuations; the built-in soft start and automatic overload protection guarantee continuous operation under full load for a long period of time; the rotational speed is infinitely adjusted to meet the correction of rotational speed at any time; the digital display of rotational speed is visualized to provide a good solution for the collection of experimental data. The digital display of rotational speed is intuitive, providing convenience for experimental data collection; Timing control function ensures controllable timeliness.
PD300L-SH series laboratory dispersing and homogenizing machine is driven by compact series-excitation miniature high-speed motor, which is composed of high-speed motor, homogenizing working head and speed controller.
The driving host adopts precision die-casting aluminum alloy as the body, which is stable in operation; the working head is made of stainless steel, which has a wide range of experimental applications; the rotational speed is controlled by a microprocessor, which can effectively compensate for the changes in rotational speed caused by loading and power supply voltage fluctuations; the built-in soft start and automatic overload protection guarantee continuous operation under full load for a long period of time; the rotational speed is infinitely adjusted to meet the correction of rotational speed at any time; the digital display of rotational speed is visualized to provide a good solution for the collection of experimental data. The digital display of rotational speed is intuitive, providing convenience for experimental data collection; Timing control function ensures controllable timeliness.
Machine parameters:
| Model | PD300L-SH |
| Rated voltage | 220 |
| Rated frequency | 50 / 60 |
| Input power | 680 |
| Output power | 400 |
| Rated torque | 15.9N·cm |
| Work mode | S1(Continuous) |
| Speed control | Stepless |
| Speed range | 2000~24000rpm |
| Operation control method | Speed control knob |
| Timed control range | 1~999min |
| Speed detection function | Yes |
| Timerfunction | Yes |
| Speedmemory function | Yes |
| Overload protection | Yes |
| Working headmaterial | Stainless steel304 |
| Adaptationfor working head | 10G/19G/25G/35G |
| Permissible ambient temperature | Lower than40℃ |
| Permissible relative humidity | Less than |
| Size of the mixer(T×B×H) | 215×310×720mm |
| Weight: | 10kg |
Machine parameters:
| Model | PD300L-SH |
| Rated voltage | 220 |
| Rated frequency | 50 / 60 |
| Input power | 680 |
| Output power | 400 |
| Rated torque | 15.9N·cm |
| Work mode | S1(Continuous) |
| Speed control | Stepless |
| Speed range | 2000~24000rpm |
| Operation control method | Speed control knob |
| Timed control range | 1~999min |
| Speed detection function | Yes |
| Timerfunction | Yes |
| Speedmemory function | Yes |
| Overload protection | Yes |
| Working headmaterial | Stainless steel304 |
| Adaptationfor working head | 10G/19G/25G/35G |
| Permissible ambient temperature | Lower than40℃ |
| Permissible relative humidity | Less than |
| Size of the mixer(T×B×H) | 215×310×720mm |
| Weight: | 10kg |
Work Head Parameters:
Specifications (G) | 10 | 19 | 25 | 35 |
Handling capacity(ml) | 35-100 | 45-1600 | 80-5000 | 150-13000 |
Stator diameter(mm) | Φ 10 | Φ 19 | Φ25 | Φ35 |
Rotor diameter (mm) | Φ7.2 | Φ 15 | Φ 19 | Φ28 |
Allow maximum speed (rpm) | 24000 | 22000 | 18000 | 15000 |
The maximum line speed of the rotor(m/s) | 9.0 | 17.2 | 17.9 | 21.9 |
Working head length(mm) | 182 | 220 | 225 | 235 |
Min / Max immersion liquid height (mm) | 25/120 | 45/160 | 50/165 | 60/175 |
Suspension particle size ( μm) | 5-25 | 10-50 | 10-50 | 10-50 |
Floating liquid particle size ( μm) | 1-10 | |||
Allowable ambient temperature(℃) | 5-40 | |||
Maximum operating temperature (℃) | 120 | |||
Working head bearing material(#) | PTFE,SS304 | |||
Sterilization method | Chemical wet process | |||
Work Head Parameters:
Specifications (G) | 10 | 19 | 25 | 35 |
Handling capacity(ml) | 35-100 | 45-1600 | 80-5000 | 150-13000 |
Stator diameter(mm) | Φ 10 | Φ 19 | Φ25 | Φ35 |
Rotor diameter (mm) | Φ7.2 | Φ 15 | Φ 19 | Φ28 |
Allow maximum speed (rpm) | 24000 | 22000 | 18000 | 15000 |
The maximum line speed of the rotor(m/s) | 9.0 | 17.2 | 17.9 | 21.9 |
Working head length(mm) | 182 | 220 | 225 | 235 |
Min / Max immersion liquid height (mm) | 25/120 | 45/160 | 50/165 | 60/175 |
Suspension particle size ( μm) | 5-25 | 10-50 | 10-50 | 10-50 |
Floating liquid particle size ( μm) | 1-10 | |||
Allowable ambient temperature(℃) | 5-40 | |||
Maximum operating temperature (℃) | 120 | |||
Working head bearing material(#) | PTFE,SS304 | |||
Sterilization method | Chemical wet process | |||
