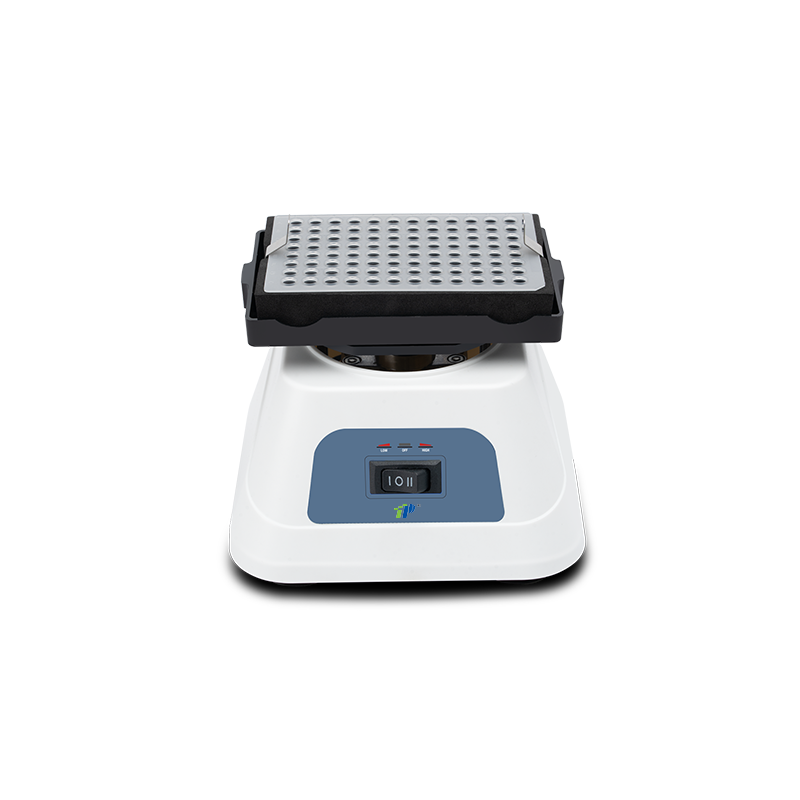

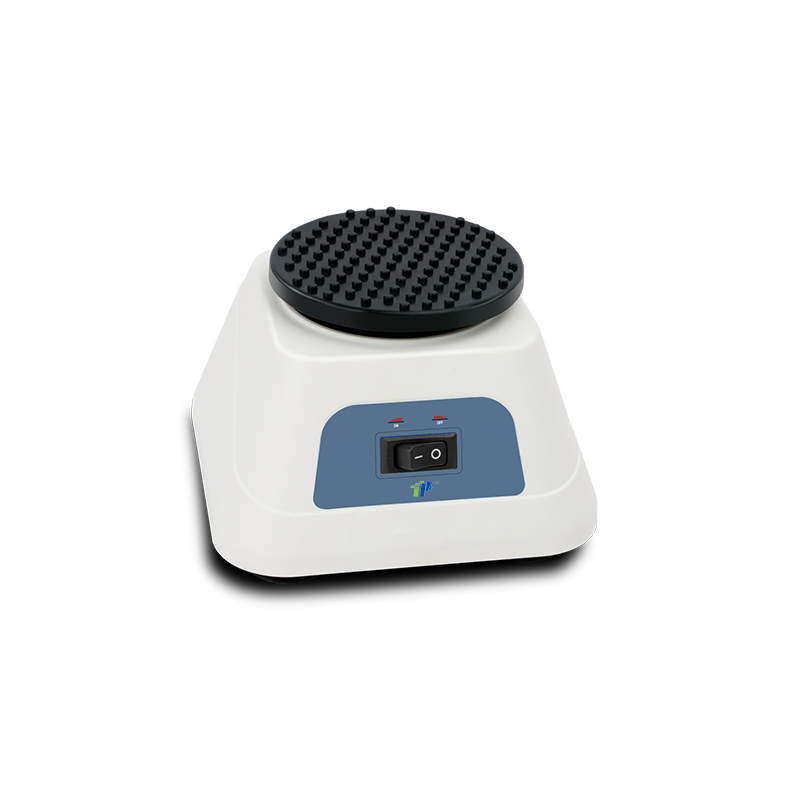

Orbital Vortex Mixer with Multiple Adapters for 0.2-50ml Tubes, Low Noise, Continuous Operation, 2800rpm Speed Range
You are here: home » Products » Lab Shakers » Vortex Mixers / Mini Shakers » Orbital Vortex Mixer with Multiple Adapters for 0.2-50ml Tubes, Low Noise, Continuous Operation, 2800rpm Speed Range

Product Category

Orbital Vortex Mixer with Multiple Adapters for 0.2-50ml Tubes, Low Noise, Continuous Operation, 2800rpm Speed Range

Load adapter: Flat vibrating head or Flat vibrating head/Microplate clamp (depend on models)
Speed range: 2800rpm / L:1300rpm H:2800rpm (depend on models)
Vibration amplitude: 4mm
Mix method: Orbital
Working mode: Continuous

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PM25/PVM25D

  • TOP

Main Features:



Vortex mixers are used in the fields of life science,physical and chemical analysis for oscillation, mixing and stirring of sample tissues, cells, bacterial liquids,chemical reagents, etc. A variety of adapters areavailable for 0.2~50ml test tubes or small containers with a diameter less than 108mm.


Features:


  • Simple and reliable structure, small dimension, low power consumption and low noise

  • Two models optional: fixed and high/low speed

  • Used for various mixing application with optional adaptor

  • Accept a variety of test sample container: centrifuge tube/PCR plate/cell culture plate/deep well plate

  • Stable operation, small speed error and long service life



Machine parameters:


Model

PM25

PM25D

Power

30W


Load adapter

Flat vibrating head

Flat vibrating head/Microplate clamp

Speed range

2800rpm

L:1300rpm

H:2800rpm

Vibration amplitude

4mm

Mix method

Orbital

Working mode

Continuous

Dimension

L160×W160×H115mm


Weight

3.75kg


Power supply

110V/220V;50/60Hz
