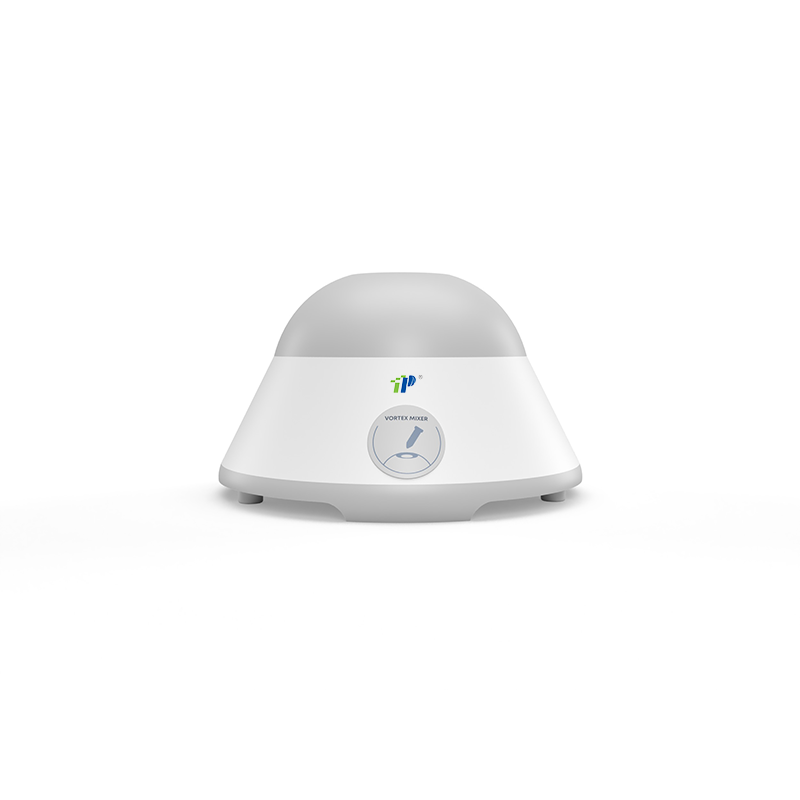

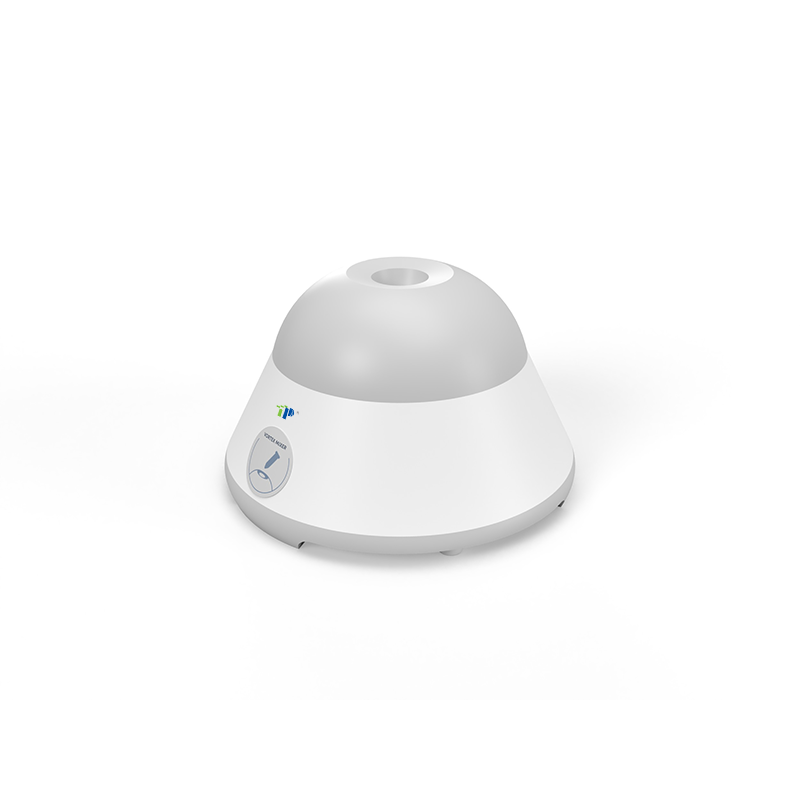

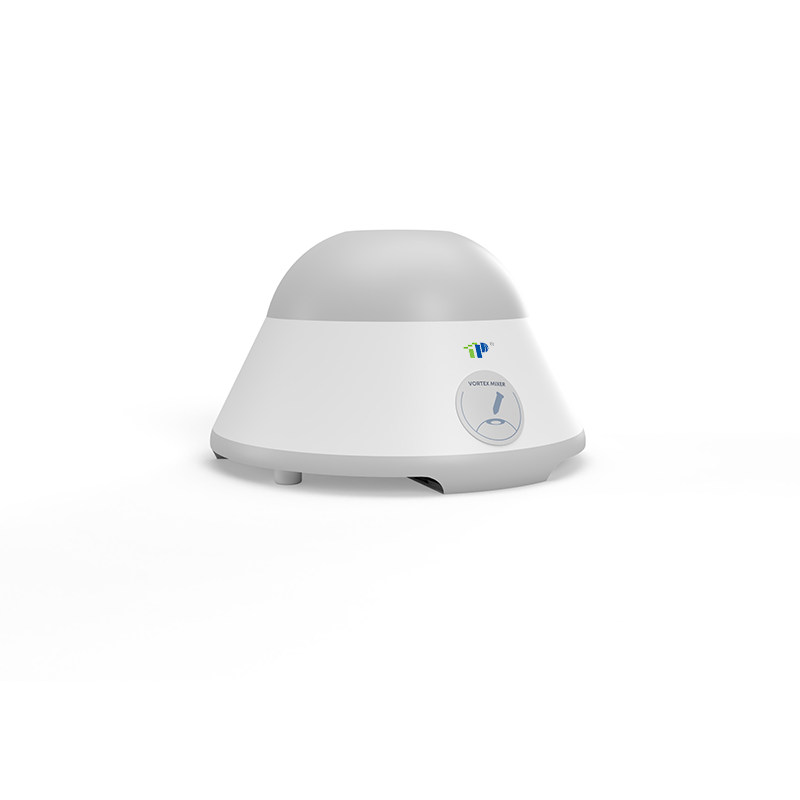

Mini Vortex Mixer with Brushless DC Motor, Adjustable Speed & Inching Function, 4000rpm, 50ml Capacity – Compact Lightweight Lab Mixer for Life Sciences and Chemical Analysis
You are here: home » Products » Lab Shakers » Vortex Mixers / Mini Shakers » Mini Vortex Mixer with Brushless DC Motor, Adjustable Speed & Inching Function, 4000rpm, 50ml Capacity – Compact Lightweight Lab Mixer for Life Sciences and Chemical Analysis

Product Category

Mini Vortex Mixer with Brushless DC Motor, Adjustable Speed & Inching Function, 4000rpm, 50ml Capacity – Compact Lightweight Lab Mixer for Life Sciences and Chemical Analysis

Speed: 4000rpm / 0~4000rpm (depend on models)
Control method: Fixed / Step-less knob speed control (depend on models)
Circulation diameter: 4.5 mm
Max processing capacity: 50ml
Mixing method: Circular Oscillation
Mixing mode: Powder and liquid vibration mixing
Work surface material: Rubber

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PVM30-mini/ PVM30D-mini

  • TOP

Main Features:

It is a mini mixing oscillator equipped with brushless Dc motor, focusing on the inching function. It is exquisite, compact and lightweight to operate with one hand. Gently pressing the tube to start, it can achieve fast mixing in 5 seconds at a speed of 4000rpm, maximum mixing capacity in 50 ml. lt is very safe and convenient, and is widely used in liquid mixing work in the fields of life sciences and physical/ chemical analysis, beauty and nail art, art studios, etc.


● External intelligent inching mode, press to start, convenient and fast

● DC brushless motor for strong power, long life, and maintenance-free

● Two models: fixed speed and adjustable speed

● Two oscillation modes: inching and continuous

● Stepless knob for precise speed control

● Eccentric circular shaft for uniform and fast mixing

● Anti-slip foot pads for stable operation

● Durable silicone anti-vibration head


Machine parameters:

Model

PVM30-mini

PVM30D-mini

Speed

4,000 rpm

0~4,000 rpm

Control method

Fixed

Step-less knob speed control

Circulation diameter

4.5 mm

Mixing method

Circular Oscillation

Mixing mode

Powder and liquid vibration mixing

Power

≤12 W

Motor type

Brushless DC Motor

Work surface material

Rubber

Max processing capacity

50 ml

Working temp/humidity

5℃~40℃/80%

Waterproof level

IP42

Instrument net weight

0.55KG

Input voltage/frequency

100~240 V    50/60 HZ
