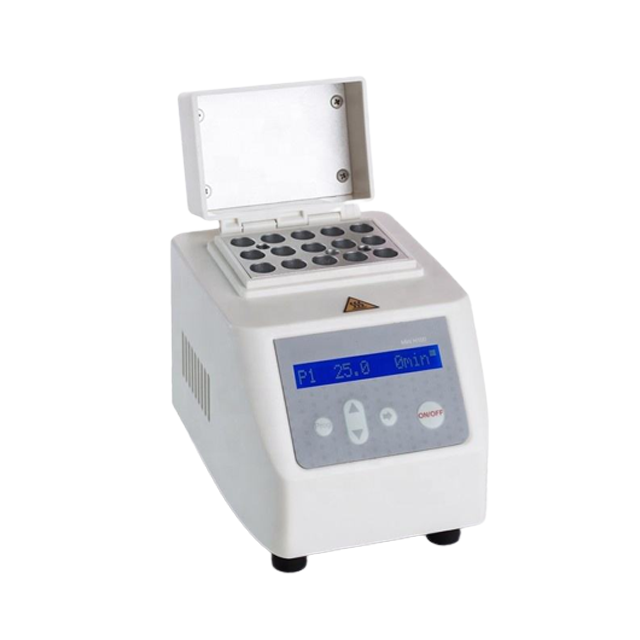

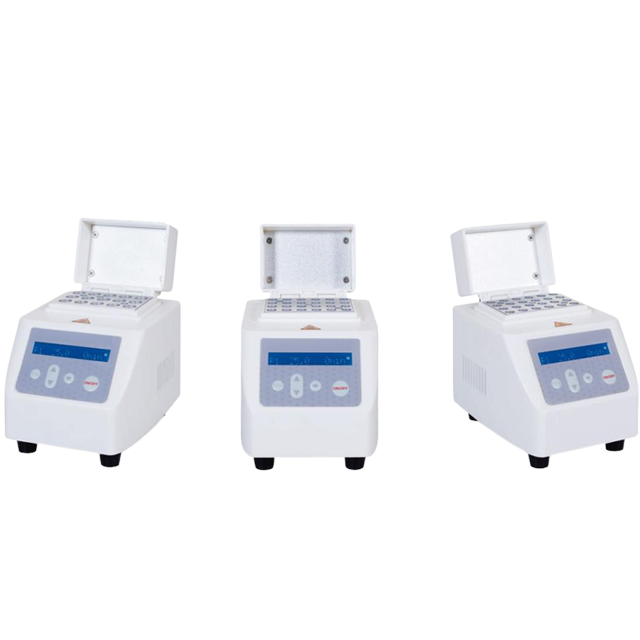

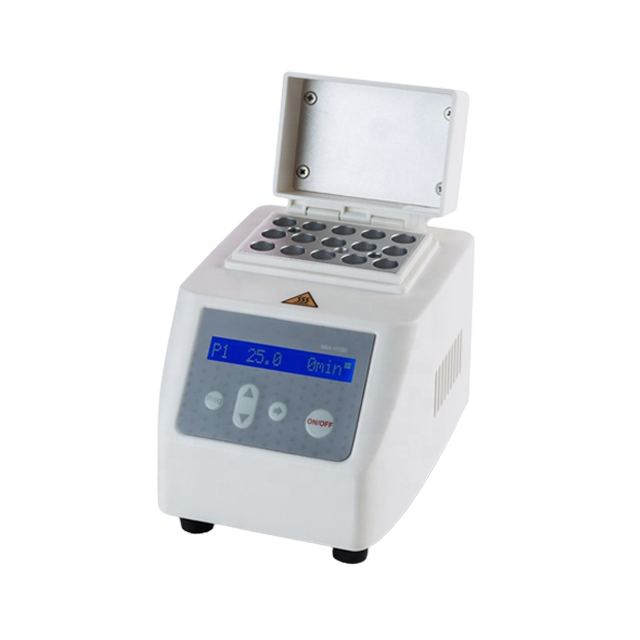

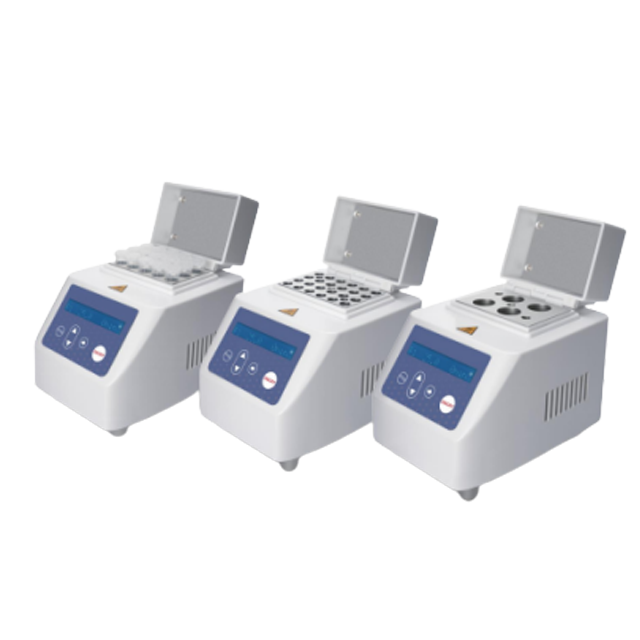

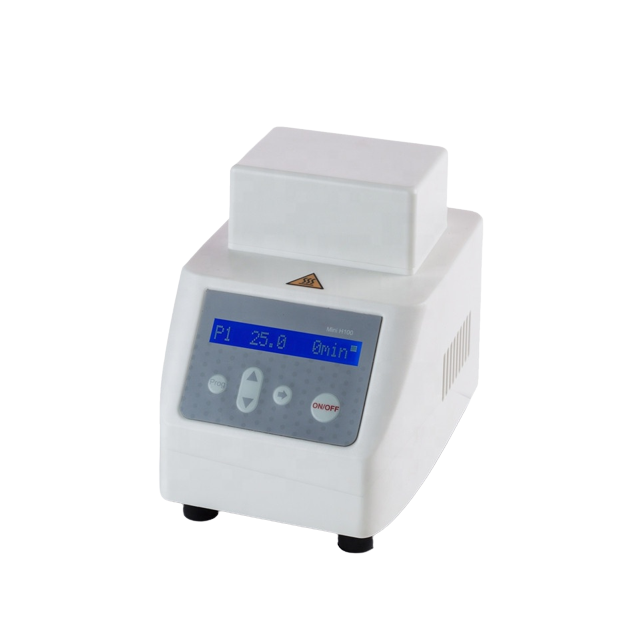

Mini Dry Bath Incubator with LCD Display, Digital Temperature Control, Optional Cooling & Hot Lid – Portable Laboratory Heating Block for Biological Samples
Temperature Range: RT23~100 °C (Mini HCL100 & HC100), RT+5~100 °C (Mini H100)
Temperature Accuracy: ±0.5 °C with 0.1 °C display resolution
Heating Rate: Up to 8 °C/min; Cooling Rate: Up to 3 °C/min (HCL100 & HC100)
Time Setting Range: 0–999 min / 0–999 sec, 9 program memory slots
Display & Control: LCD display, digital temperature & time control, USB interface
Dimensions & Weight: 110×162×140 mm, ≤1 kg, 60 W power
Special Features: Overheating protection, interchangeable tube blocks, optional hot lid (HCL100), optional cooling function
Temperature Accuracy: ±0.5 °C with 0.1 °C display resolution
Heating Rate: Up to 8 °C/min; Cooling Rate: Up to 3 °C/min (HCL100 & HC100)
Time Setting Range: 0–999 min / 0–999 sec, 9 program memory slots
Display & Control: LCD display, digital temperature & time control, USB interface
Dimensions & Weight: 110×162×140 mm, ≤1 kg, 60 W power
Special Features: Overheating protection, interchangeable tube blocks, optional hot lid (HCL100), optional cooling function
| Quantity: | |
|---|---|
-
HCL100 / Mini HC100 / Mini H100
Laboratory Mini Dry Bath Used In Histology
MiniHCL100
Useful for rapid and uniform heating of biological samples in applications like preservation, denaturation of nucleic acids and proteins, and many other applications.
•Mini Dry Bath
•Mini HCL100 / Mini HC100 / Mini H100
•Portable and option to power by automobile power adapter
•Mini, lightweight, safe with LCD display
•Digital control over both temperature and time
•Built-in user recalibration function guarantees long term temperature accuracy
•Overheating protection
•Optional cooling function
•Interchangeable blocks for a wide variety of test tube sizes
•Mini HCL100 with hot lid to prevent water condensing on the tube cap
Specifications | Mini HCL100 | Mini HC100 | Mini H100 |
Display | LCD | LCD | LCD |
Temperature setting range[℃] | 0-100 | 0-100 | 25-100 |
Temperature range [℃] | Room temperature-23~100 | Room temperature-23~100 | Room temperature+5~100 |
Temperature control accuracy[℃] | ±0.5 | ±0.5 | ±0.5 |
Temperature display accuracy[℃] | 0.1 | 0.1 | 0.1 |
Minimum time taken for heating(25℃+100℃) | ≤20min | ≤20min | ≤20min |
Minimum time for cooling(20℃-0℃) | ≤25min | ≤25min | - |
Max. Heating Rate | 8℃/min | 8℃/min | 6.5℃/min |
Max. Cooling Rate | 3℃/min | 3℃/min | - |
Time setting range | 0-999min/0-999sec | 0-999min/0-999sec | 0-999min/0-999sec |
Program Memory | 9(2steps for each) | 9(2steps for each) | 9(2steps for each) |
Temperature self-calibration | Support | Support | Support |
USB interface | Support | Support | Support |
Error code display | Support | Support | Support |
Dimension[WxDxH] | 110x162x140mm | 110x162x140mm | 110x162x140mm |
Total Weight [kg] | ≤1 | ≤1 | ≤1 |
Voltage,Frequency | DC12V,100-240V, 50/60Hz | DC12V,100-240V, 50/60Hz | DC12V,100-240V, 50/60Hz |
Power [w] | 60 | 60 | 60 |
Operating temperature[℃] | +10-40 | +10-40 | +10-40 |
Operating humidity [% RH] | ≤80 | ≤80 | ≤80 |
