PTSH-P4
TOP
Main Features:

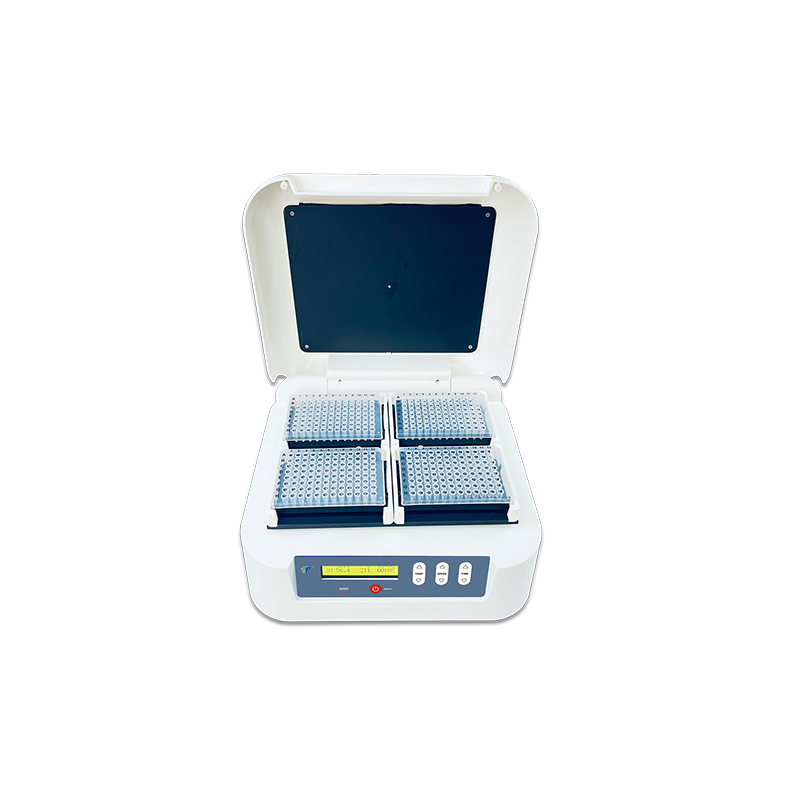

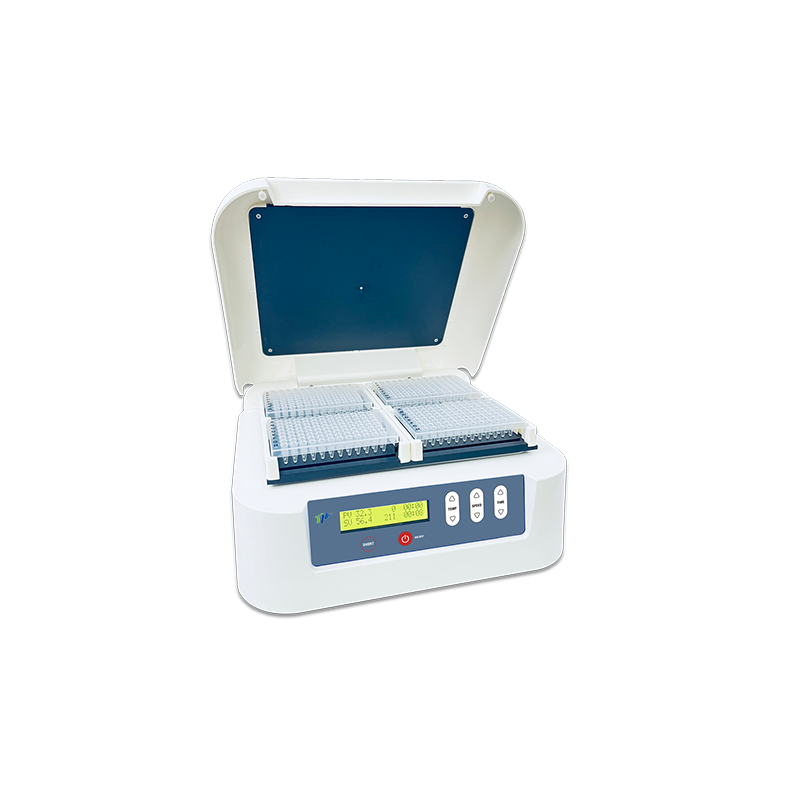

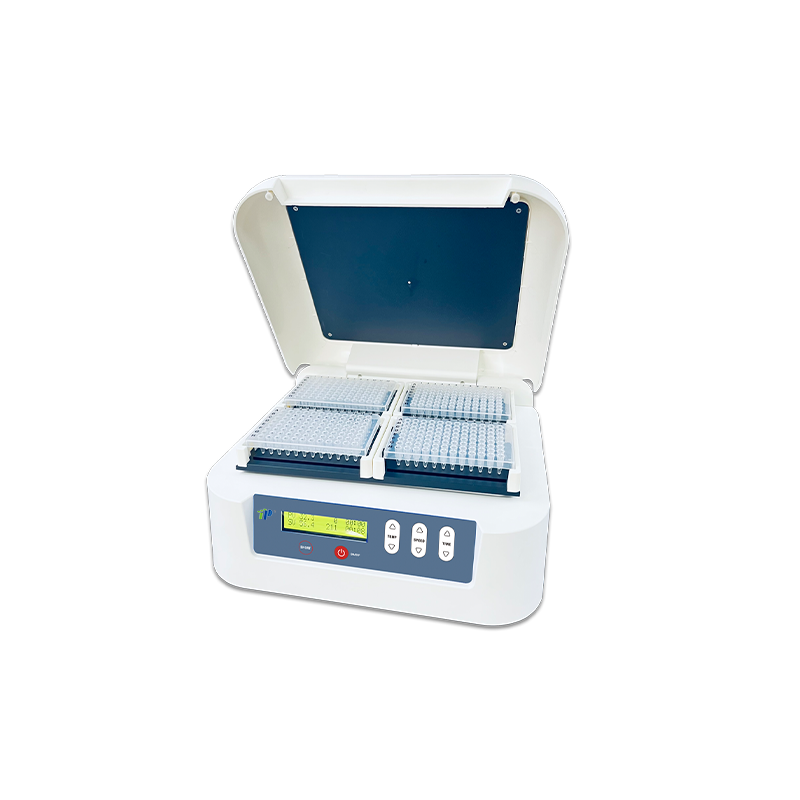

The microplate incubator shaker adopts micro-processing technology combined with PID control, which can quickly keep stability after reaching the target temperature. It is mainly used for ELISA plate, cell culture plate, etc. Suitable for mixing, incubation and cultivationof biological and chemical components in life science disciplines, such as immunochemical reactions, enzyme and protein analysis, molecular biology techniques, microarray analysis.
● Using brushless DC motor, low noise and maintenance-free

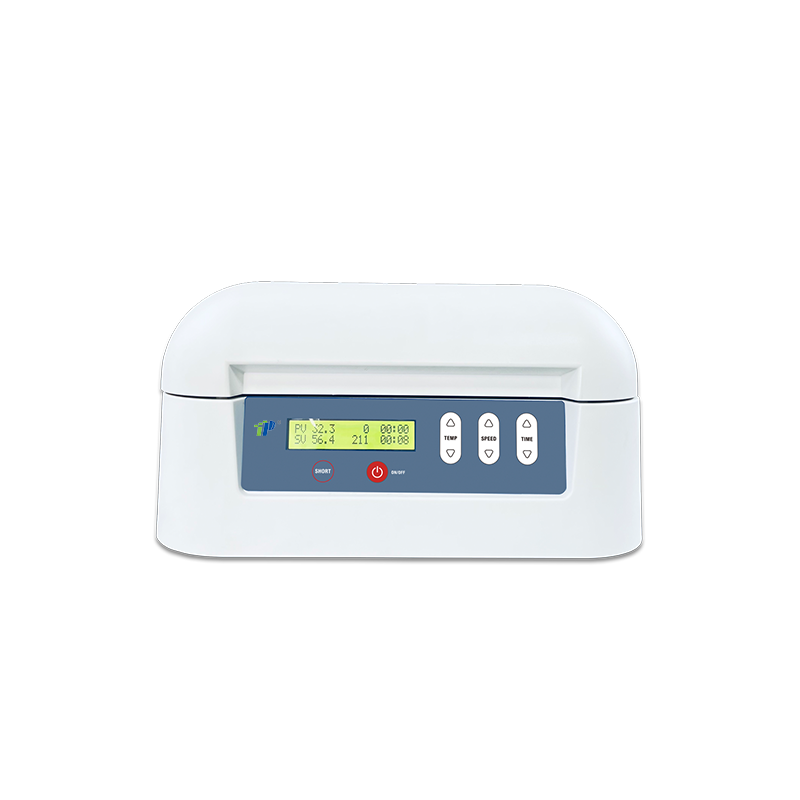

● LCD display actual speed, temperature and time decrement display
● Can process 4pcs ELISA plates, microplate or deep well plates at one time
● Support automatic recovery function after power outage
● Microprocessor controls temperature and time, with good temperature linearity control and micro fluctuations
● Using hot lid technology, the heating plate can provide two-direction heating, ensure superior temperature uniformity and stability while also eliminating condensation.
● Continuous and timed operation, standard alarm warning and automatic cut-off function
● Integrated bi-directional heating and powerful circular shaking provide maximum efficiency for incubation
Main Features:
The microplate incubator shaker adopts micro-processing technology combined with PID control, which can quickly keep stability after reaching the target temperature. It is mainly used for ELISA plate, cell culture plate, etc. Suitable for mixing, incubation and cultivationof biological and chemical components in life science disciplines, such as immunochemical reactions, enzyme and protein analysis, molecular biology techniques, microarray analysis.
● Using brushless DC motor, low noise and maintenance-free
● LCD display actual speed, temperature and time decrement display
● Can process 4pcs ELISA plates, microplate or deep well plates at one time
● Support automatic recovery function after power outage
● Microprocessor controls temperature and time, with good temperature linearity control and micro fluctuations
● Using hot lid technology, the heating plate can provide two-direction heating, ensure superior temperature uniformity and stability while also eliminating condensation.
● Continuous and timed operation, standard alarm warning and automatic cut-off function
● Integrated bi-directional heating and powerful circular shaking provide maximum efficiency for incubation
Machine parameters:
Model | PTSH-P4 |
Sample capacity | 4pcs microplates/cell culture plates/deep well plate |
Speed range | 200~1500rpm |
Shake amplitude | 3mm horizontal rotation |
Time range | 1min~99h59min |
Heating method | Heating film |
Temp control | RT +5℃~80℃ |
Module temp uniformity | ±0.5℃ |
Temp accuracy | 0.1℃ |
Heating time | ≤10 minutes |
Power | 250W |
Dimension | L350×W320×H200mm |
Weight | 8kg |
Power supply | 110V/220V;50/60Hz |
Machine parameters:
Model | PTSH-P4 |
Sample capacity | 4pcs microplates/cell culture plates/deep well plate |
Speed range | 200~1500rpm |
Shake amplitude | 3mm horizontal rotation |
Time range | 1min~99h59min |
Heating method | Heating film |
Temp control | RT +5℃~80℃ |
Module temp uniformity | ±0.5℃ |
Temp accuracy | 0.1℃ |
Heating time | ≤10 minutes |
Power | 250W |
Dimension | L350×W320×H200mm |
Weight | 8kg |
Power supply | 110V/220V;50/60Hz |
