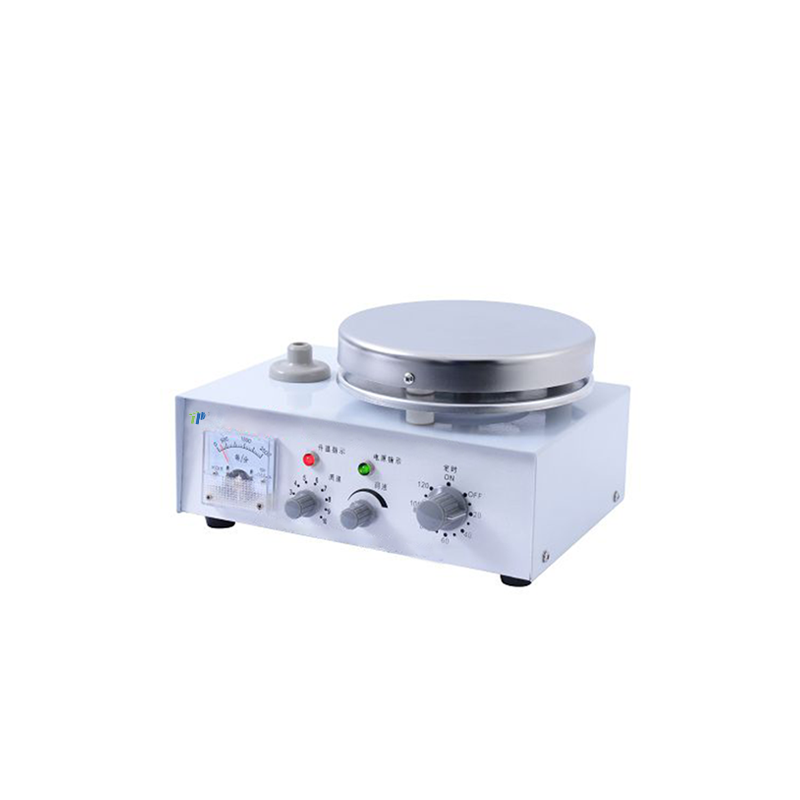

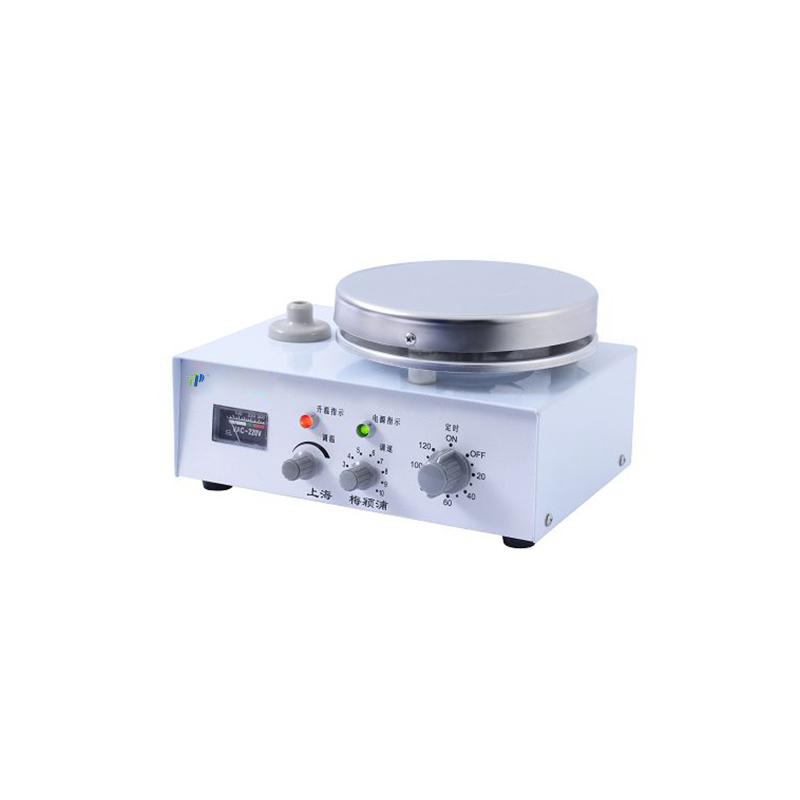

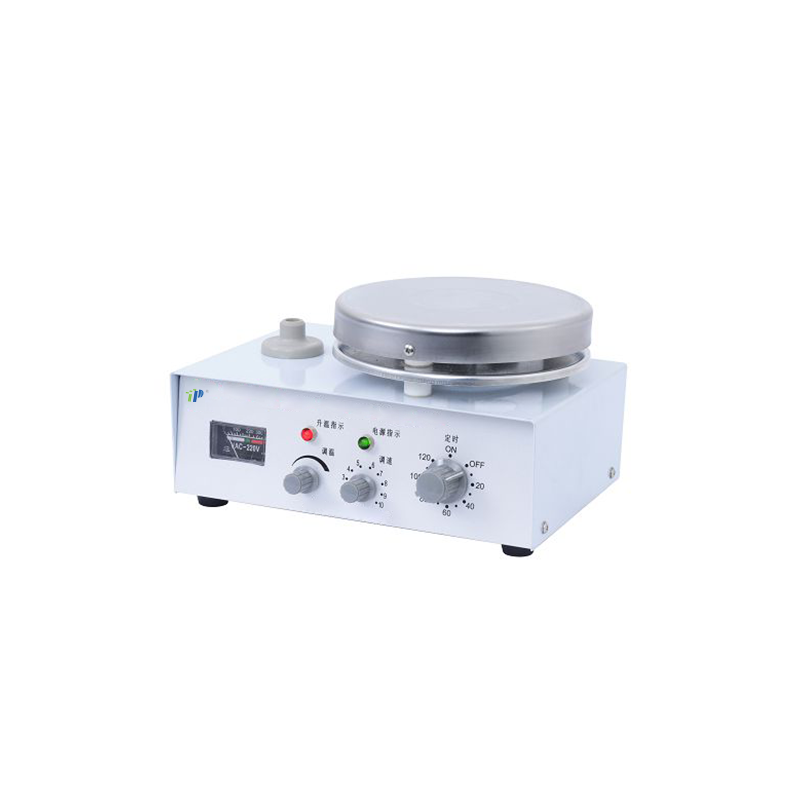

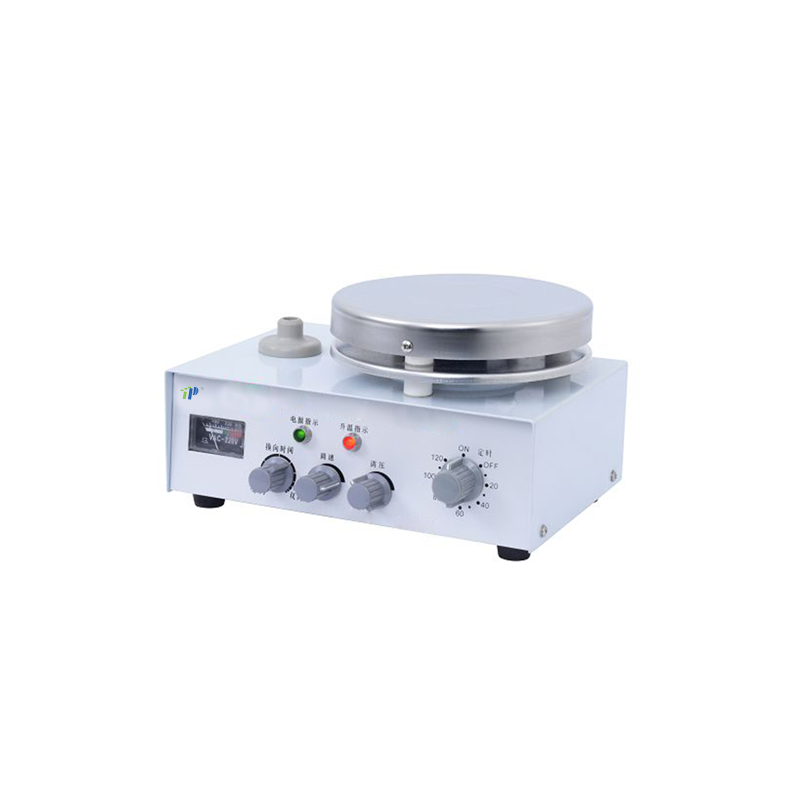

Magnetic Hotplate Stirrer, 3L–5L Capacity, 0–2000 rpm, 360W Heating, Timer, Stainless Steel Plate

You are here: home » Products » Hotplates & Stirrers » Hotplate Stirrers (Combination) » Magnetic Hotplate Stirrer, 3L–5L Capacity, 0–2000 rpm, 360W Heating, Timer, Stainless Steel Plate

Product Category

Magnetic Hotplate Stirrer, 3L–5L Capacity, 0–2000 rpm, 360W Heating, Timer, Stainless Steel Plate

Motor Type: AC servo motor (94-2) or brushless DC motor (95-1, P97, P97-A)
Max Stirring Capacity: 3 L (95-1, 94-2) / 5 L (P97, P97-A)
Speed Range: 0–1200 rpm, 0–1500 rpm, or 0–2000 rpm depending on model
Heating Power: 360 W adjustable, φ145 mm stainless steel plate
Temperature Range: Room temperature to 150°C (within 1 L)
Timing Function: Mechanical timer up to 120 minutes
Dimensions & Weight: 225×155×125 mm, approx. 3.5–3.6 kg

Quantity:
Availability:





Inquire Add to Basket

Model:
95-1 / 94-2 / P97 / P97-A
Brand:
TOP

Brushless DC motor drive, variable speed. Mechanical timer and the longest time: 120 minutes φ145mm stainless steel heating plate Driven by brshless DC motor; stepless speed regulating

Thermostat Magnetic Stirrer Heated Magnetic Stirrer Magnetic stirrer hotplate Stirring hot plate with thermostat Heating magnetic mixer lab

Related Products

P-FlatSpin Portable Motorless Magnetic Stirrer – High-Speed 15-1500rpm, PET Workplate for Laboratory

P-S DC Motor Magnetic Stirrer – Compact Single-Position Laboratory Stirring with Adjustable Speed

P-H-S10 10-Position Magnetic Hotplate Stirrer – Multi-Sample Heating and Stirring with Adjustable Speed for Laboratory Use

P-H-S Magnetic Hotplate Stirrer – Brushless DC Motor, 20L Capacity, 340°C Heating for Laboratory Use

LCD Digital Hotplate Magnetic Stirrer with Timer P-H-ProT

P-H-ProT Magnetic Hotplate Stirrer with LCD Display, Timer, PT1000 Sensor, and RS232 Data Interface

Type	95-1	94-2	P97	P97-A
Control	Knob	Knob	Knob	Knob
( AC ) Voltage	220V	220V	220V	220V
Max.stirring capacity	3L	3L	5L	5L
Motor type	AC servomotors reversing agitation	Brushless DC Motor	Brushless DC Motor	Brushless DC Motor
Motor Power	8W	8W	10W	10W
(r/min) Speed Range	0~1200	0~1500	0~2000	0~2000
Working platematerial	Stainless steel	Stainless steel	Stainless steel	Stainless steel
(mm) Working platesize	φ145	φ145	φ145	φ145
(W) Heating power	360Wadjustable within	360Wadjustable within	360W adjustable within	360Wadjustable within
℃ Liquid temperature range	Room temperature-150 （Within 1L）	Room temperature-150 （Within 1L）	Room temperature-150 （Within 1L）	Room temperature-150 （Within 1L）
Liquid temperature	(Customer provided) Conductive thermometers	(Customer provided) Conductive thermometers	(Customer provided) Conductive thermometers	(Customer provided) Conductive thermometers
(min) Timing range	120	120	120	120
(mm) Dimension	225×155×125	225×155×125	225×155×125	225×155×125
(kg) Weight	3.5	3.5	3.6	3.6

Type	95-1	94-2	P97	P97-A
Control	Knob	Knob	Knob	Knob
( AC ) Voltage	220V	220V	220V	220V
Max.stirring capacity	3L	3L	5L	5L
Motor type	AC servomotors reversing agitation	Brushless DC Motor	Brushless DC Motor	Brushless DC Motor
Motor Power	8W	8W	10W	10W
(r/min) Speed Range	0~1200	0~1500	0~2000	0~2000
Working platematerial	Stainless steel	Stainless steel	Stainless steel	Stainless steel
(mm) Working platesize	φ145	φ145	φ145	φ145
(W) Heating power	360Wadjustable within	360Wadjustable within	360W adjustable within	360Wadjustable within
℃ Liquid temperature range	Room temperature-150 （Within 1L）	Room temperature-150 （Within 1L）	Room temperature-150 （Within 1L）	Room temperature-150 （Within 1L）
Liquid temperature	(Customer provided) Conductive thermometers	(Customer provided) Conductive thermometers	(Customer provided) Conductive thermometers	(Customer provided) Conductive thermometers
(min) Timing range	120	120	120	120
(mm) Dimension	225×155×125	225×155×125	225×155×125	225×155×125
(kg) Weight	3.5	3.5	3.6	3.6
