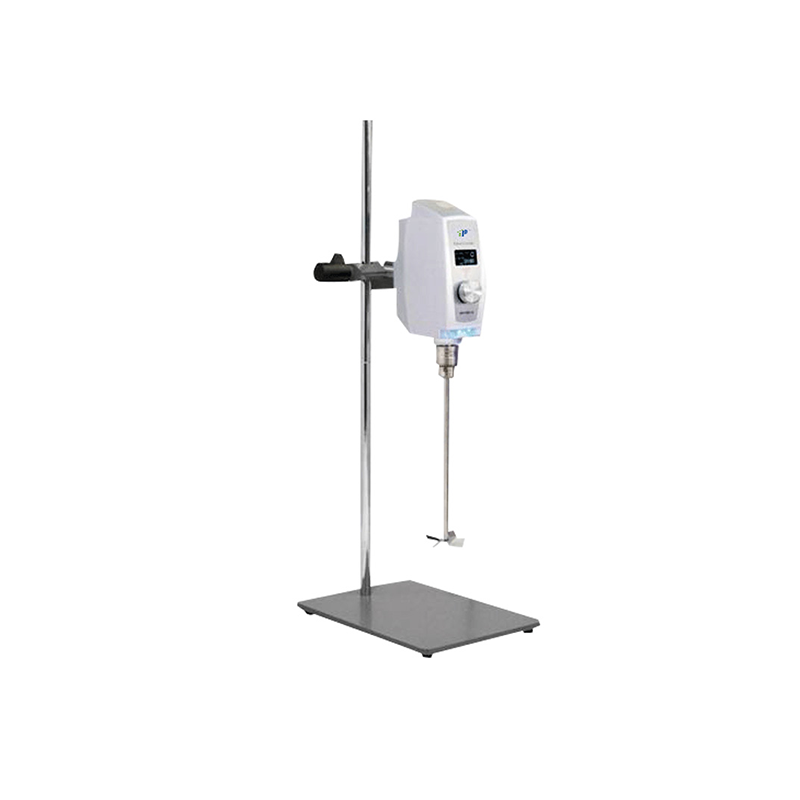

Laboratory Overhead Stirrer 20L – Brushless Homogeneous Dispersing Mixer, 30–2000rpm, High Viscosity 20000mPa·s

Drive type: Brushless DC motor
Output torque of mixing shaft: 13.1N.cm
Output peak torque of mixing shaft: 39N.cm
Operationcontrol method: Capacitive Touch Keyboard / Combined Control Knob (depend on models)
Speed regulation range-no load: 30-2000rpm
Timing control range: 1~6000min
Clamping range of rotary chuck: 2~10mm
Mixing rod penetration diameter (shutdown): 8mm
Treatment capacity (H2O): 20L
Stirring viscosity: 0~20000mPa.s

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PM110W-O/T

  • TOP

It is suitable for mixing liquid from low viscosity to high viscosity. The mixer has reasonable and compact structure, ultra-low noise and maintenance free. The stirring speed is controlled by microprocessor, which can timely and effectively compensate the speed change caused by load change and power supply voltage fluctuation. The constant speed is reliable. Built in automatic overload protection device to ensure the safety of long-term and high-load continuous operation of the experiment; the rotary control of the running state makes the operation of the experiment easier, and the mixing speed can be adjusted steplessly to meet the requirements of adjusting the mixing speed at any time in the experiment; the digital display setting and the actual output mixing speed ensure the intuitive acquisition of experimental data.


Machine parameters:

Product ModelPM110W-TPM110W-O
Rated voltage100~240100~240
Rated frequency50/6050/60
Input power162W162W
Output power110W110W
Drive typeBrushless DC motorBrushless DC motor
Output torque of mixing shaft13.1N.cm13.1N.cm
Output peak torque of mixing shaft39N.cm39N.cm
Working systemS1 (Continuity)S1 (Continuity)
Operationcontrol methodCapacitive Touch KeyboardCombined Control Knob
Speed regulation range-no load30-2000rpm30-2000rpm
Speed control typeInfinityInfinity
Running dynamic displayTFTOLED
Timing control range1~6000min1~6000min
Fixing methodof mixing barQuick type chuckQuick type chuck
Clamping range of rotary chuck2~10mm2~10mm
Mixing rod penetration diameter(shutdown)8mm8mm
Impeller configurationFour blade screw agitatorFour blade screw agitator
Treatment capacity (H2O)20L20L
Stirring viscosity0~20000mPa.s0~20000mPa.s
Allowable ambient temperatureNo more than 40℃No more than 40℃
Allowable relative humidityNo more than 80%No more than 80%
Machine overall size215*310*600mm215*310*600mm
Total weight7.67.6
Protection level/Impeller materialIP40/SS316L stainless steelIP40/SS316L stainless steel
