PE10/PE30
TOP

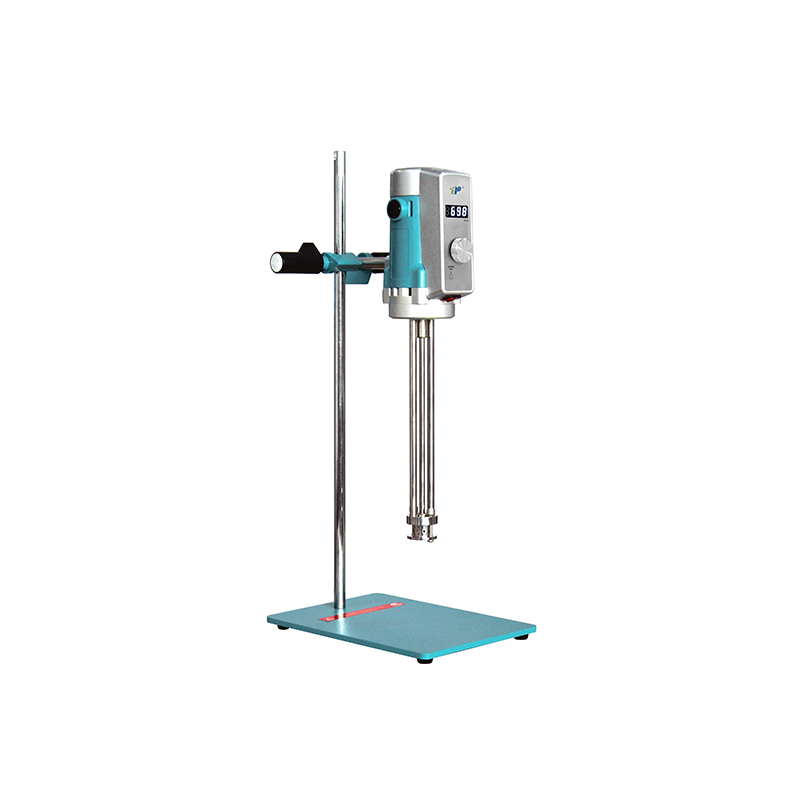

PE10/30 Experimental Shear Emulsifying Machine is powered by micro motors of compact-structured Series excitation type, so it can be widely used in laboratories orpilot experim ents for the mixingof low, moderate or high viscosity liquids and it can also be used to dispersehomogeneous particle material and to break fiber material in a liquid medium,specially designed for experiments of small capacity and mushy medium .The product consists of high-speed motor, dispersed homogeneous stirring head and speed control.The driving machine is made of high quality engineering piastic and die-cast aluminum to ensure its stable operation
The stirring bead is made of stainless steel and can be of wide experimental application.The running speed is controlled by a microprocessor and can compensate for the speed variation caused by load changes or the fhuctaation of power supply voltage. The speed is constant andreliable with Built-in soft-start and automatic overload protection, which ensures the security of acontinous operation at full load for a long time, $tepless adjustment of speed can ensure you can correct the mixing speed in the experiment at any time.The running speed is controlled by a microprocessor and can compensate for the speed variationcaused by load changes or the flucbuation of power supply voltage, The speed is constant and reliable with Built-in soft-start and automatic overload protection, which ensures the security of acontinuous operation at full load for a long time. Stepiess adjustment of speed can ensure you cancorrect the mixing speed in the experiment at any time.
PE10/30 Experimental Shear Emulsifying Machine is powered by micro motors of compact-structured Series excitation type, so it can be widely used in laboratories orpilot experim ents for the mixingof low, moderate or high viscosity liquids and it can also be used to dispersehomogeneous particle material and to break fiber material in a liquid medium,specially designed for experiments of small capacity and mushy medium .The product consists of high-speed motor, dispersed homogeneous stirring head and speed control.The driving machine is made of high quality engineering piastic and die-cast aluminum to ensure its stable operation
The stirring bead is made of stainless steel and can be of wide experimental application.The running speed is controlled by a microprocessor and can compensate for the speed variation caused by load changes or the fhuctaation of power supply voltage. The speed is constant andreliable with Built-in soft-start and automatic overload protection, which ensures the security of acontinous operation at full load for a long time, $tepless adjustment of speed can ensure you can correct the mixing speed in the experiment at any time.The running speed is controlled by a microprocessor and can compensate for the speed variationcaused by load changes or the flucbuation of power supply voltage, The speed is constant and reliable with Built-in soft-start and automatic overload protection, which ensures the security of acontinuous operation at full load for a long time. Stepiess adjustment of speed can ensure you cancorrect the mixing speed in the experiment at any time.
Machine parameters:
Model: | PE10 | PE30 |
Rated voltage: | 220 ±10 % | 220 ±10 % |
Rated frequency: | 50 / 60 | 50 / 60 |
Input power: | 1050W | 1350W |
Output power: | 600W | 800W |
Rated torque: | 38 N·cm | 51 N·cm |
Work mode: | S1(Continuous) | S1(Continuous) |
Operation control mode: | modular control knob | modular control knob |
Speed adjustment range | 2000 ~ 15000 rpm | 2000 ~ 15000 rpm |
Speed control mode: | stepless | stepless |
Timing control range | 1 ~ 1000 | 1 ~ 1000 |
Speed digital display | LED | LED |
Speed dynamic detection: | Yes | Yes |
Speed memory function: | Yes | Yes |
Overload protection function: | Yes | Yes |
Degree of protection | IP20 | IP20 |
Mixing head material: | stainless steel 316 | stainless steel 316 |
Stirring head diameter | 42mm | 50mm |
Rotor diameter | 24mm | 29mm |
Stator and rotor clearance | 0.5mm | 0.5mm |
Maximum circumferential speed | 18.9m/s | 22.8m/s |
Immersion length | 38~250 | 38~260 |
Standard configuration of stator | circular/ square/long / large round hole | circular/ square/long / large round hole |
Operation type | batch processing | batch processing |
Handling capacity(H2O) | 100 ~ 20000ml | 150 ~ 30000ml |
Maximum handling viscosity | 8000 mpa.s | 12000 mpa.s |
Maximum allowable temperature | 180 °C | 180 °C |
PH value | 2~13 | 2~13 |
Sterilization method | chemical wet treatment | chemical wet treatment |
Suspension particle size | 15~65 μm | 15~65 μm |
Emulsion particle size | 5~30 μm | 5~30 μm |
Allowable ambient temperature | ≦40 °C | ≦40 °C |
Allowable relative humidity | ≦80% | ≦80% |
Overall dimension | 215*310*720mm | 215*310*720mm |
Overall weight | 9 kg | 9 kg |
