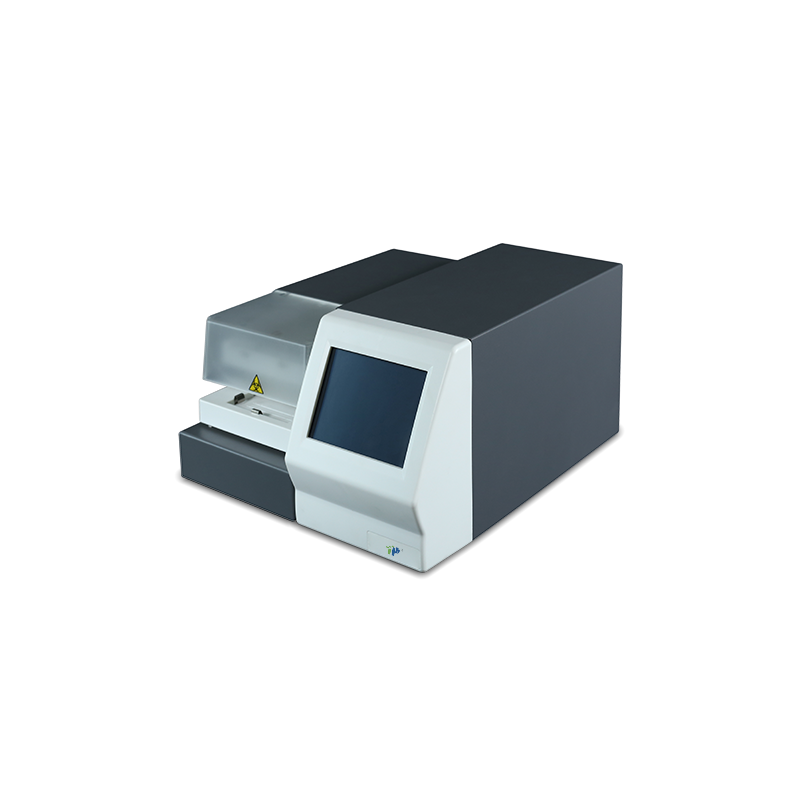

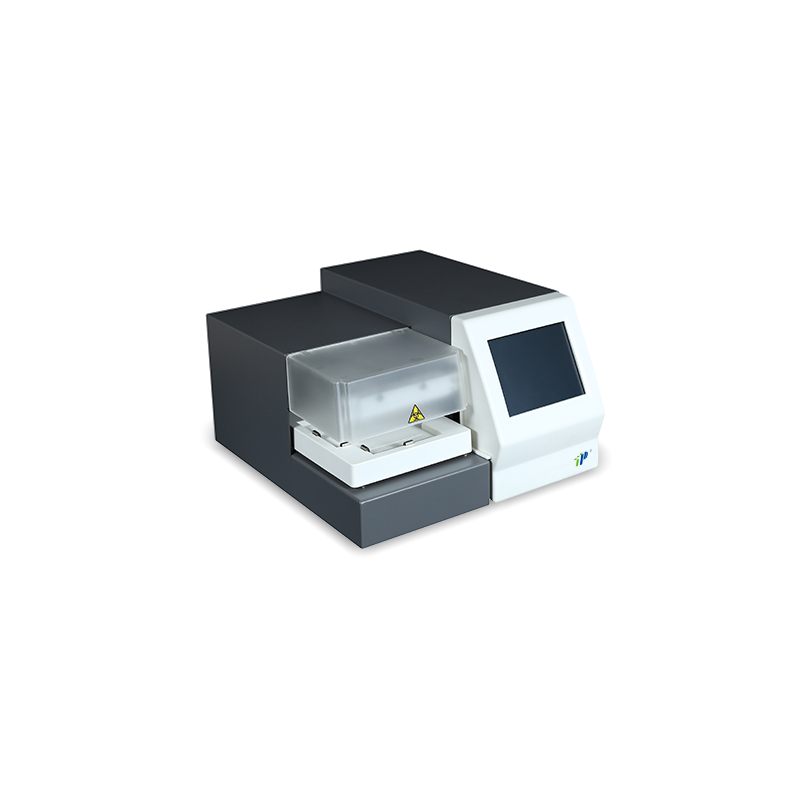

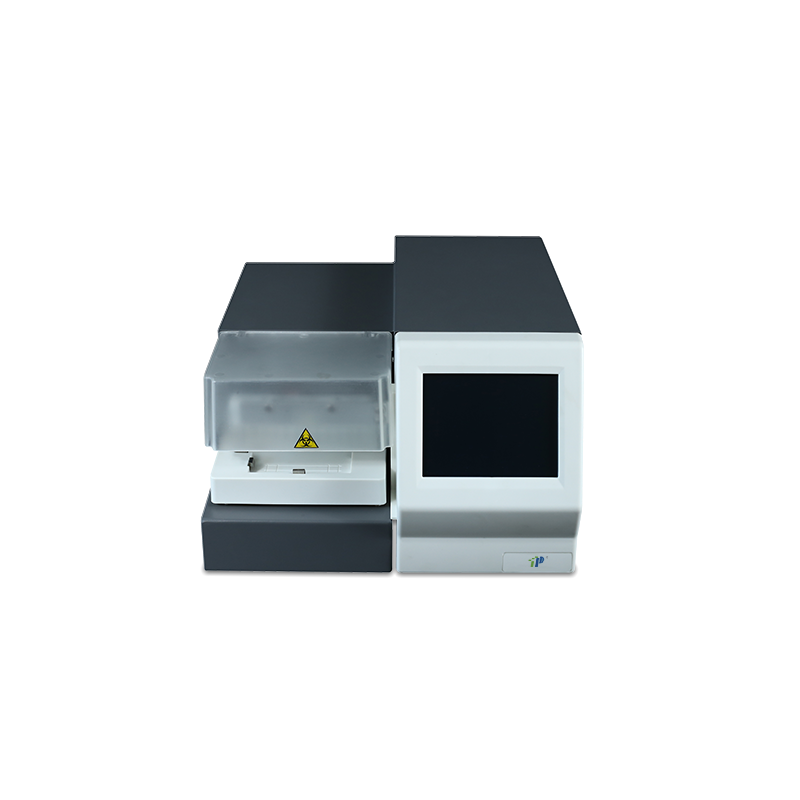

Industrial Automatic Multi-Channel Plate Washer with Touchscreen, 8/12 Wash Heads, Programmable Washing Modes, Ultra-Long Soak Time, and Liquid Level Alarm

Wash heads: 8/12 /Wash heads, can be dismantled and Washed
Wash channels: Standard 4 channels
Residue volume: 1ul (the average per hole)
Wash times: 0-99times
Wash strip: 1-12,Support skip Washing
Delay time: 0-9 seconds for delay
Injection velocity: About 100 boards/hour
Program storage: Support user programming, 200 groups of washing program storage, preview, delete,call, support for changing.
Vibrate speed: 3 grade, time: 0 - 24 hours.
Level monitor: Support the liquid level alarm function

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TS-4011

  • TOP

Main Features:


● Industrial grade color LCD display, touch screen operation

● Three kinds of linear vibration plate function.

● Ultra long soak time design 、can serve multiple purposes

● Have a variety of Washing mode、Support user programming

● Extra Wide voltage input design、Global voltage application

● Up to 4 kinds of liquid channels can be selected 、No need to replace reagent bottle


Machine parameters:

Wash heads8/12 /Wash heads, can be dismantled and Washed
Wash channelsStandard 4 channels
Residue volume1ul(the average per hole)
Wash Times0-99times
Wash Strip1-12,Support skip Washing
Delay time0-9 seconds for delay
Injection velocityAbout 100 boards/hour
Soak  time0-24 hours, Step 1 second
Wash modDesign of advanced non positive negative pressure technology,With the center of washing, two points washing, prevent the bottom of the cup from being scratched.
Program storageSupport user programming、200 groups of washing program storage, preview, delete,call, support for changing.
Vibrate Speed3 grade, time: 0 - 24 hours.
Level monitorSupport the liquid level alarm function
Display5.6 inch color LCD screen、Touch screen input,Support 7*24 hours continuous boot,And has the non working period energy conservation management function.
Power inputAC100-240V  50-60Hz
Bottle washing2000mL* 3
Weight9Kg
Size380mm(L)*330mm(W)*218mm(H)
