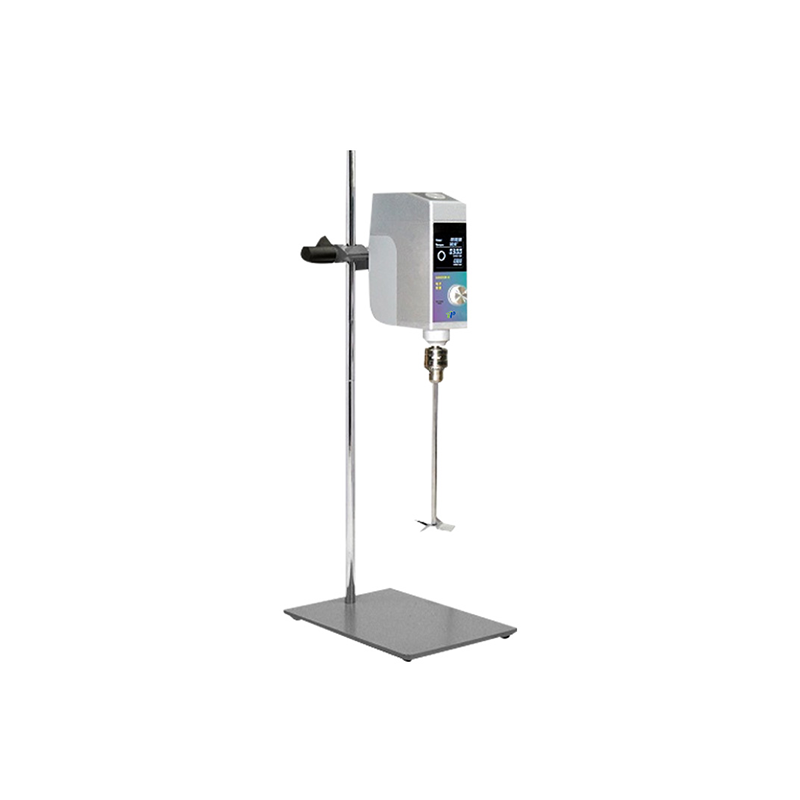

High-Torque Overhead Stirrer – Brushless DC Motor, 30–2000rpm, 300N·cm Torque, Digital Speed Control | PM400W-H Laboratory Mixer

Drive type: Brushless DC motor
Output torque of mixing shaft: 100N.cm
Outputpeak torque of mixing shaft: 300N.cm
Timing control range: 1~6000min
Speed regulation range-no load: 30-2000rpm
Stirring viscosity: 0~80000mPa.s
Treatment capacity (H2O)/Impeller material: 60/SS316L stainlesssteel

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PM400W-H

  • TOP

It is suitable for mixing liquid from low viscosity to high viscosity. The mixer has reasonable and compact structure,   ultra-low noise and maintenance free. The stirring speed is controlled by microprocessor, which can timely and effectively compensate the speed change caused by load change and power supplyvoltage fluctuation. The constant speed is reliable. Built in automatic overload protection device to ensure the safety of long-term and high-load continuous operation of the experiment; the rotary control of the running state makes the operation of the experiment easier, and the mixing speed can be adjusted steplessly to meet the requirements of adjusting the mixing speed at any time in the experiment;the digital display setting and the actual output mixing speed ensure the intuitive acquisition of experimental data.


Machine parameters:

Product Model

PM400W-H

Rated voltage

100~240

Rated frequency

50/60HZ

Input power

615W

Output power

418W

Drive type

Brushless DC motor

Output torque of mixing shaft

100N.cm

Outputpeak torque of mixing shaft

300N.cm

Working system

S1(Continuity)

Operation control method

Combined control knob

Speed regulation range-no load

30-2000rpm

Speed control type

Infinity

Running dynamic display

LCD

Timing control range

1~6000min

Fixing method of mixing bar

Quick type chuck

Clamping range of rotary chuck

2~13mm

Mixing rod penetration diameter(shutdown)

0 mm

Impeller configuration

Four blade screw agitator

Treatment capacity (H2O)/Impeller material

60/SS316L stainlesssteel

Stirring viscosity

0~80000mPa.s

Allowable ambient temperature

No morethan 40℃

Allowable relative humidity

No morethan 80%

Machine overall size

250*350*835mm

Total weight

15.4kg

Protection level

IP40
