PE500S-H(50/70/90G)
TOP

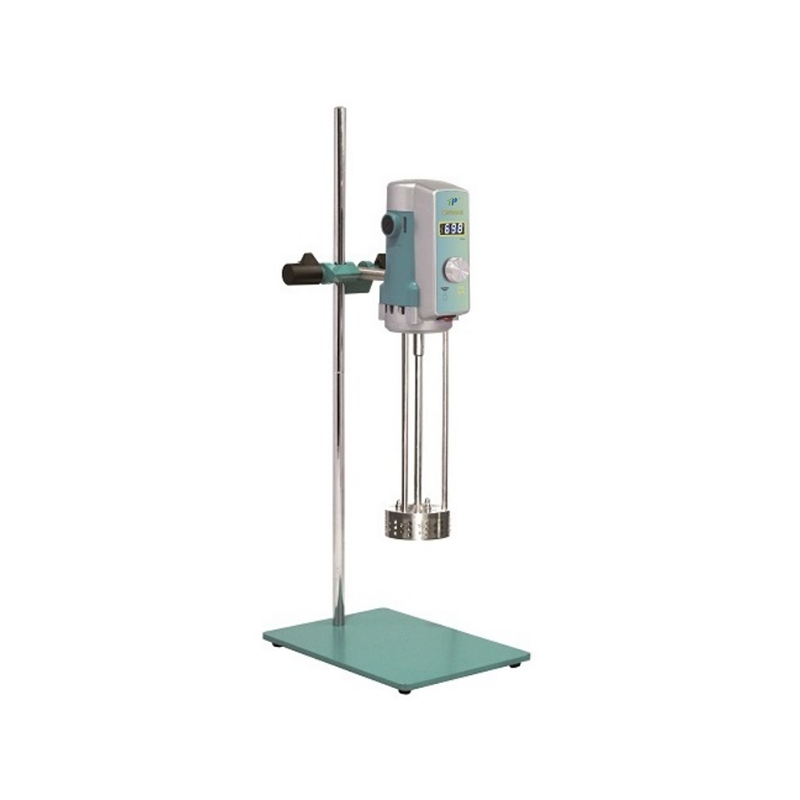

The high shear dispersing emulsifying machine is driven by a compact series micro high speed motor,which is suitable for mixing low to medium and high viscosity liquid in laboratory or pilot plant,crushing granular materials and shearing emulsi- fying them in liquid medium.The machine is composed of high-speed motor,shear emulsification head and speed control- er.The driving host adopts high-quality engineering plastic and die-casting aluminum alloy as the body,and the running state is stable; the working head is refined with high-quality stainless steel,which has a wide range of experimental applications;the stepless speed adjustment can meet the requirements of the operation speed correction at any time in the experiment.
The high shear dispersing emulsifying machine is driven by a compact series micro high speed motor,which is suitable for mixing low to medium and high viscosity liquid in laboratory or pilot plant,crushing granular materials and shearing emulsi- fying them in liquid medium.The machine is composed of high-speed motor,shear emulsification head and speed control- er.The driving host adopts high-quality engineering plastic and die-casting aluminum alloy as the body,and the running state is stable; the working head is refined with high-quality stainless steel,which has a wide range of experimental applications;the stepless speed adjustment can meet the requirements of the operation speed correction at any time in the experiment.
Machine parameters:
| Product model | PE500S-H(50G) | PE500S-H(70G) | PE500S-H(90G) |
| Rated voltage | AC220 | AC220 | AC220 |
| Rated frequency | 50/60 | 50/60 | 50/60 |
| Input power | 850W | 850W | 1350W |
| output power | 500W | 500W | 800W |
| Rated torque | 34.1N.cm | 34.1N.cm | 69.5N.cm |
| Working mode | S1(continuous) | S1(Continuity) | S1(continuous) |
| Operation control method | Combined control knob | Combined Control Knob | Combined control knob |
| Speed regulation range -no load | 1000~14000rpm | 2000~14000rpm | 2000~11000rpm |
| Speed control type | Infinity | Infinity | Infinity |
| Running dynamic display | LED(digital) | LED(Number) | LED(digital) |
| Maximum torque of working head | 34N.cm | 34N.cm | 69.5N.cm |
| Maximum linear speed of rotor | 16m/s | 20.5m/s | 22m/s |
| Material of working head | SS316L stainless steel | SS316LStainless Steel | SS316L stainless steel |
| Working head diameter | 50mm | 70mm | 90mm |
| Maximum /small liquid immersion height | 50/236mm | 50/236mm | 50/236mm |
| Standard configuration of stator | Square hole/long hole /inclined holemm2 | 5/20/50mm2 | 5/20/50mm2 |
| Treatment capacity(H20) | 300~20000ml | 2000~40000ml | 800~60000ml |
| Maximum processing viscosity | 8000mPa.s | 8000mPa.s | 8000mPa.s |
| Allowable ambient temperature | Not more than 40℃ | Not more than 40℃ | Not more than 40℃ |
| Permissible relative humidity | No more than 80% | No more than 80% | No more than 80% |
| Timing control range | 1~1000min | 1~1000min | 1~1000min |
| machine overall size | 215*310*720mm | 215*310*720mm | 215*310*720mm |
| Total weight | 9.2kg | 9.2kg | 10.8kg |
