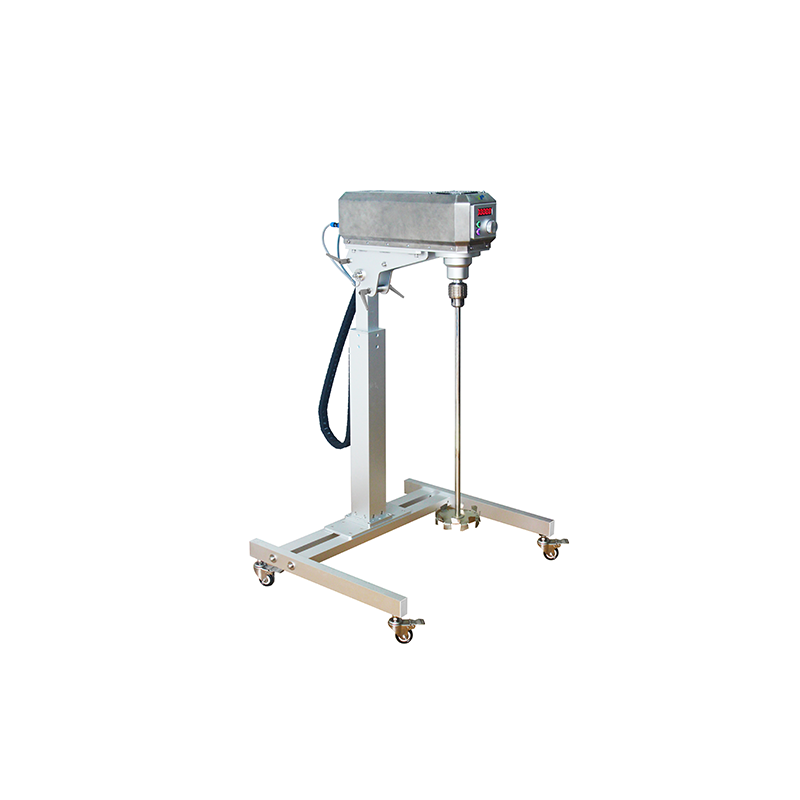

High Power Overhead Stirrer PM800 – 800W Brushless DC Mixer, 200–2000rpm, 355N·cm Torque, 120L Capacity, Stepless Speed Control

Stirrer configuration: Dissolved agitator blade, made of stainless steel 316L
Rotary clamp head range: Φ3~16 mm
Processing capacity (H2O): 120L
Treatment viscosity: 100000 mPa.s
Rated torque: 355N.cm
Speed adjustment range: 200~2000 rpm
Main engine lifting stroke: 500mm
Speed control type: Stepless

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PM800

  • TOP

PM800 High Power Constant Speed Mixer is driven by brushless DC servo motor and is suitable for pilot mixing and blending of low to medium and high viscosity liquids in the laboratory. The machine has low-speed operation with super torque output, low noise, maintenance-free, mixing speed controlled by microprocessor, can instantly and effectively compensate for changes in speed caused by load changes and power supply voltage fluctuations, constant speed and reliable. Built-in automatic overload protection device ensures the safety of long time and high load continuous operation of the experiment; stepless adjustment and control of stirring speed makes the operation of the experiment easier and meets the correction of the stirring speed at any time during the experiment; digital display of the actual output stirring speed ensures the intuitive collection of the experimental data. Stable stirring speed, capable of high viscosity media, slurry mixing.

Machine parameters:

Rated voltage

AC100~220 V

Stir bar fixing method

Quick type rotary chuck

Rated frequency

50\60 Hz

Rotary clamp head range

Φ3~16 mm


Input power


1100 W


Stirrer configuration

Dissolved agitator blade, made of stainless steel    316L

Output power

800 W

Processing capacity (H2O)

120L

Drive type

Brushless DC Motor

Treatment viscosity

100000 mPa.s

Rated torque

355N.cm

Allowable ambient temperature

Not more than40 ℃

Work mode

S1 (Continuous)

Allowable relative humidity

Not more than80 %

Operation statusdisplay

LED

Machinesize

800×710× 1235mm

Operation control method

Speed control knob

Weight

35kg

Speed adjustment range

200~2000 rpm

Main engine lifting stroke

500mm

Speed control type

Stepless

Overload protection

Yes

Host bias angle

Not more than30°

Host forward distance

100mm
