High Power 10L Brushless DC Motor Magnetic Stirrer with Aluminum Heating Plate, Precise Temperature Control & Digital Display
You are here: home » Products » Hotplates & Stirrers » Hotplate Stirrers (Combination) » High Power 10L Brushless DC Motor Magnetic Stirrer with Aluminum Heating Plate, Precise Temperature Control & Digital Display

Product Category

loading

High Power 10L Brushless DC Motor Magnetic Stirrer with Aluminum Heating Plate, Precise Temperature Control & Digital Display

Max stirring capacity: 10L
Motor type: Brushless DC Motor, 40W power
Speed range: 0~1500 r/min, stepless speed regulation
Heating plate: Aluminum alloy, φ200mm, 1000W heating power
Temperature range: Room temperature to 320℃, max safety temp 350℃
Temperature control precision: ±0.5℃
Timing range: 1 to 9999 minutes, with digital display (speed, temperature, time)

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

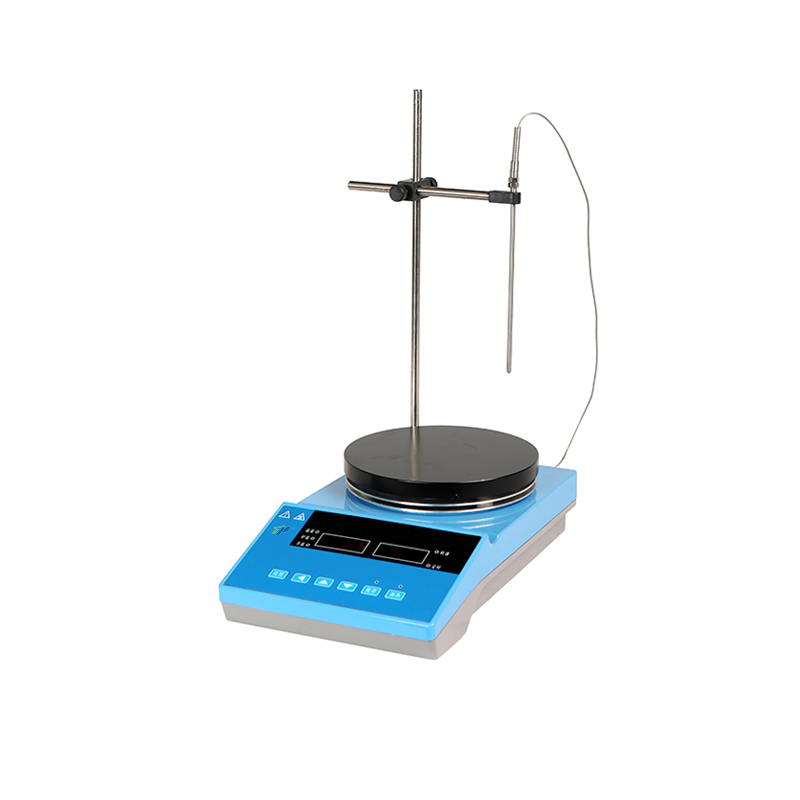

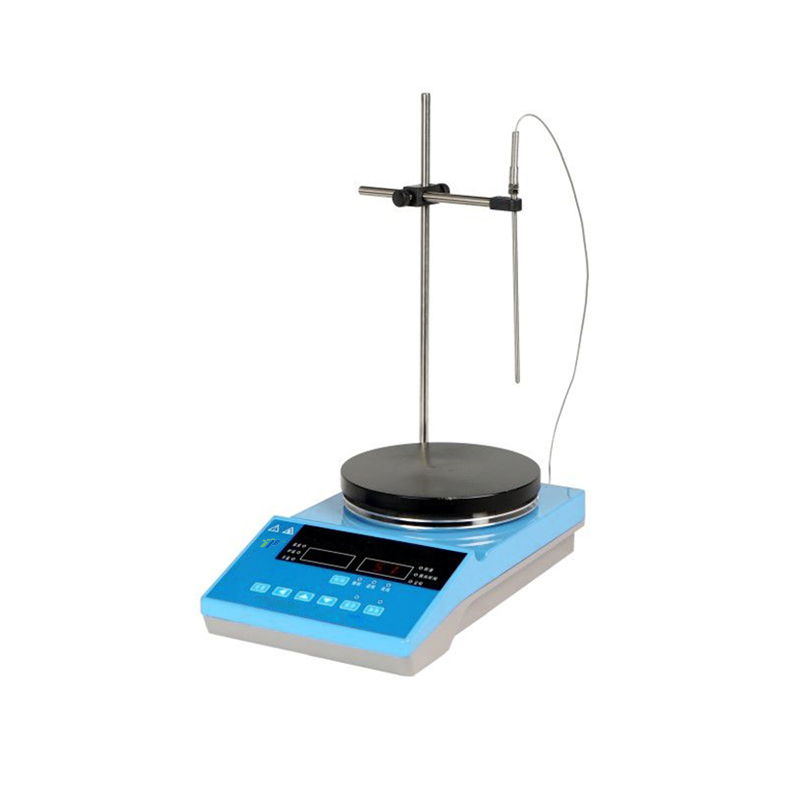

  • PYP19-2 / PYP19-2AT

  • TOP

Aluminum alloy die-casting shell, high-power aluminum heating plate, high-power brushless DC motor, strong magnetic stirring magnet steel, microprocessor control, stable rotation speed, two temperature control modes, precise control of heating temperature, long-time timing function, PYP19-2AT model also has forward and reverse mixing function, which can be forward mixing, reverse mixing, two-way mixing, reversing time adjustable. Suitable for large capacity heating and stirring.

Control

Button

( AC ) Voltage

220V

Max.stirring capacity

10L

Motor type

Brushless DC Motor

Motor Power

40W

(r/min) Speed Range

0~1500

Digital Display

Speed temperature time

Working plate material

Aluminum Alloy

(mm)Working plate size

φ200

(W)  Heating power

1000

(℃)Heating temperaturerange

Room temperature-320

(℃)working plate max.safety temperature

350

(℃)Extermal  temperature  t emperature  control  precision

±0.5

(min) Timing range

1~9999

(mm) Dimension

375*220*110

(kg) Weight

4.8
