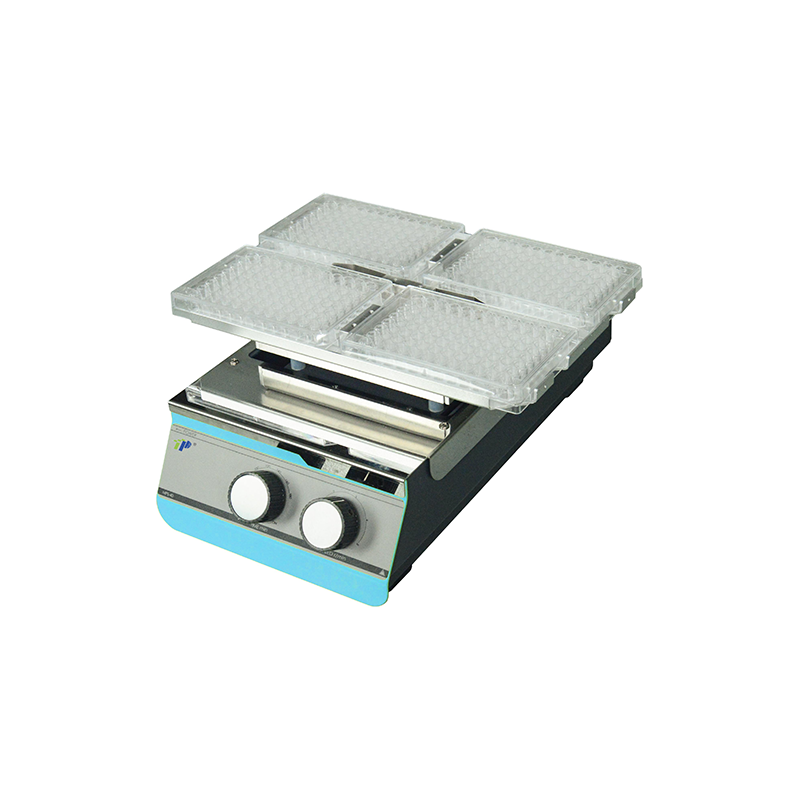

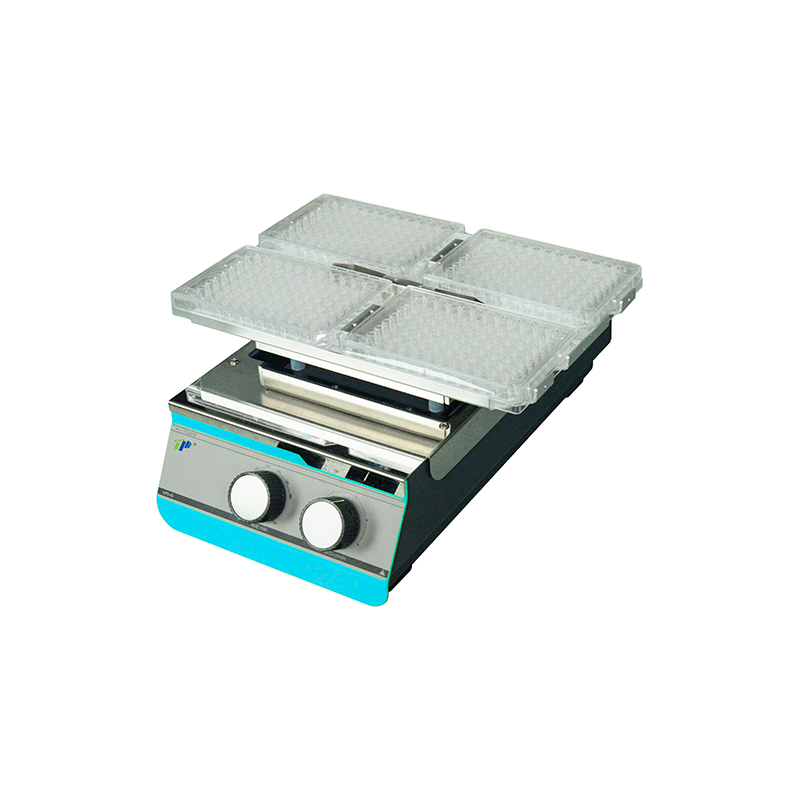

ELISA Plate Shaker – 4 Positions, Timed Circular Oscillation

Oscillation radius: 1.5mm
Maximum capacity: 4 PLATES
Speed range: 50-1200 RPM
Timing range: 180MIN
Standard fixture: Microplate fixture/4 pieces
Optional fixtures: deep hole plate/96 hole plate/blood collection tube/centrifuge tube
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PS-4

  • TOP

Advantages:

1. Adjustable oscillation speed.

2. Silent design, low working noise.

3. Various fixtures to choose, can be applied to enzyme-linked immunosorbent assay (ELISA) plates, deep well plates, culture plates, 96 well plates, etc.

4. Equipped with balanced counterweights and weighted bottom plates, it can improve oscillation stability and reduce noise.

5. The power adapter is external, with an internal voltage of 24V and good safety performance.

6. It has a timing function, which is convenient for time control and reproducing experiments.

7. 4 oscillation positions, can simultaneously process four enzyme-linked immunosorbent assay plates.


Technical parameters:

Oscillation modecircular
Oscillation radius1.5mm
Maximum capacity4 PLATES
Motor power25W
Standard fixtureMicroplate fixture/4 pieces
Optional fixturesdeep hole plate/96 hole plate/blood collection tube/centrifuge tube
Trial vesselsenzyme-linked immunosorbent assay plate/96 well plate/deep well plate/culture plate
Working modecontinuous/timed
Speed range50-1200 RPM
Timing range180MIN
Speed displayScale
Timed displayScale
Dimensions325*270 *150 MM
Weight7.5kg
