Digital Magnetic Hotplate Stirrer with Brushless DC Motor, Dual LED Display, 5L Capacity, Up to 320°C – PYP11 Series
Max.stirring capacity: 5L
Speed Range: 0~1500(r/min)
Timing range: 1~9999
Working plate size: φ145(mm)
Timing range: 1~9999
Working plate size: φ145(mm)
(℃)Heating temperature range: Room temperature-320
(℃)working plate max.safety temperature: 350
| Availability: | |
|---|---|
| Quantity: | |
-
PYP11-2 Series
-
TOP
Aluminum alloy die castingshell asa whole, brushless DC motor drive, variable speed. 2 LED display windows, displaying respectively rotational speed, timing, liquid temperature and heating plate temperature.
Aluminum alloy die castingshell asa whole, brushless DC motor drive, variable speed. 2 LED display windows, displaying respectively rotational speed, timing, liquid temperature and heating plate temperature.

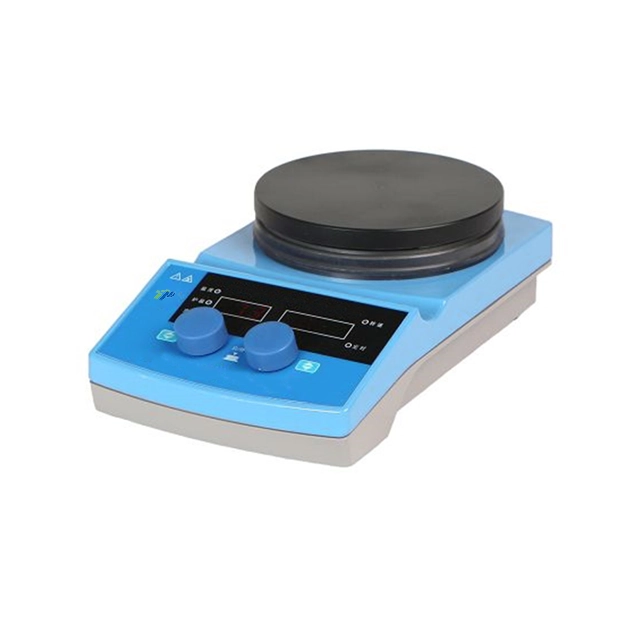

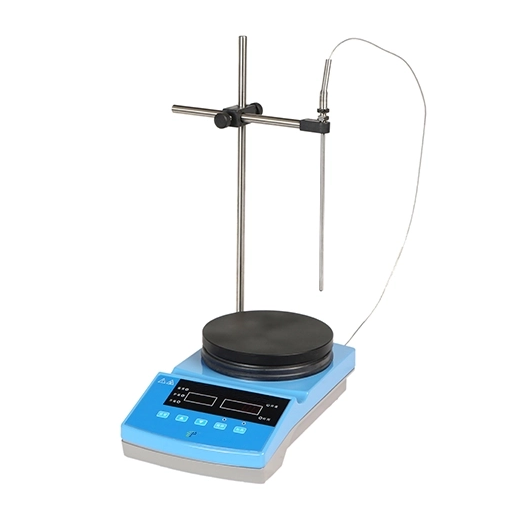

Type | PYP11-2A | PYP11-2 |
Control | Knob+Button | Button |
( AC ) Voltage | 220V | 220V |
Max.stirring capacity | 5L | 5L |
Motor type | Brushless DC Motor | Brushless DC Motor |
Motor Power | 15W | 15W |
(r/min) Speed Range | 0~1500 | 0~1500 |
Digital Display | Speed temperature time | Speed temperature time |
Working plate material | Aluminum Alloy | Aluminum Alloy |
(mm)Working plate size | φ145 | φ145 |
(W) Heating power | 600 | 600 |
(℃)Heating temperature range | Room temperature-320 | Room temperature-320 |
(℃)working plate max.safety temperature | 350 | 350 |
(℃)External temperaturetemperaturecontrolprecision | ±0.5 | ±0.5 |
(min) Timing range | 1~9999 | 1~9999 |
(mm) Dimension | 280×160×90 | 280×160×90 |
(kg) Weight | 2.7 | 2.7 |
Type | PYP11-2A | PYP11-2 |
Control | Knob+Button | Button |
( AC ) Voltage | 220V | 220V |
Max.stirring capacity | 5L | 5L |
Motor type | Brushless DC Motor | Brushless DC Motor |
Motor Power | 15W | 15W |
(r/min) Speed Range | 0~1500 | 0~1500 |
Digital Display | Speed temperature time | Speed temperature time |
Working plate material | Aluminum Alloy | Aluminum Alloy |
(mm)Working plate size | φ145 | φ145 |
(W) Heating power | 600 | 600 |
(℃)Heating temperature range | Room temperature-320 | Room temperature-320 |
(℃)working plate max.safety temperature | 350 | 350 |
(℃)External temperaturetemperaturecontrolprecision | ±0.5 | ±0.5 |
(min) Timing range | 1~9999 | 1~9999 |
(mm) Dimension | 280×160×90 | 280×160×90 |
(kg) Weight | 2.7 | 2.7 |
