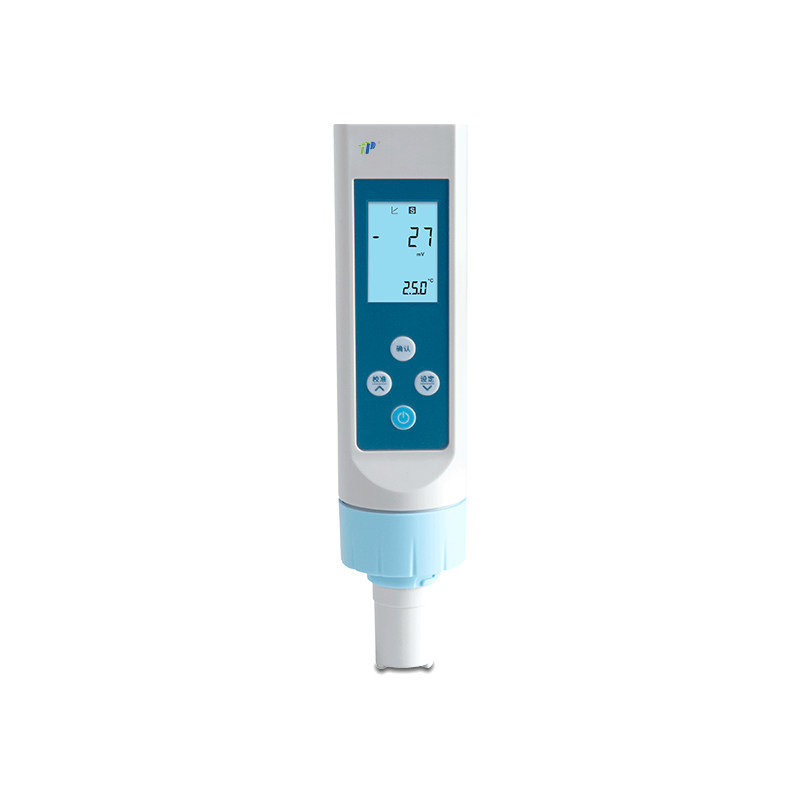

Compact Portable PT-M300 Pen ORP Meter with Backlit LCD – Accurate Redox Potential & Temperature Tester for Lab & Field Use
You are here: home » Products » Water Quality Testing Equipment » Multiparameter Water Quality Meters » Compact Portable PT-M300 Pen ORP Meter with Backlit LCD – Accurate Redox Potential & Temperature Tester for Lab & Field Use

Product Category

loading

Compact Portable PT-M300 Pen ORP Meter with Backlit LCD – Accurate Redox Potential & Temperature Tester for Lab & Field Use

Measurement Range: ORP -1000 to 1000 mV, Temperature 0.0℃ to 100.0℃
Accuracy: ORP ±1 mV, Temperature ±0.5℃
Resolution: ORP 1 mV, Temperature 0.1℃
Display: 20×30mm Multi-line Backlit LCD
Power Supply: 1×1.5V AAA battery, easy to replace
Protection Level: IP65 waterproof and dustproof
Dimensions & Weight: 180×40×45mm, 95g, compact and portable design

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PT-M300

  • TOP

Product Description:


PT-M300 pen ORP tester is designed to save your space.

PT-M300 pen ORP tester, delicate and compact design concept to save your space, clear and easy-to-read data interface, excellent anti-interference performance, has been calibrated point display, accurate measurement, easy to operate, combined with high-brightness backlight illumination, it is your professional test tool for laboratory precision measurement of solution ORP (oxidation-reduction potential) value.


Widely used in scientific research institutes, tap water, hospital sewage, swimming pool water, domestic sewage, aquaculture water, environmental monitoring, petrochemical, papermaking, pharmaceutical, food, agriculture, electricity, industry, printing and dyeing, textile, leather, brewing, electronics, municipal government, colleges and universities, etc. and has been praised by the majority of users.

Product features:


1. 4 keys easy to operate and comfortable to hold one hand to complete the precise value measurement.

2. Backlit screen multi-line display easy to read no operation 20 minutes automatic shutdown.

3. 1*1.5V AAA batteries in the whole series, easy to replace the batteries and electrodes.

4. Can be thrown water quality measurement (automatic locking function).

5. Unlimited extension of the application range.

6. Wide range of applications: can meet the needs of laboratory and field measurements.

7. Self-exchangeable planar platinum circular ORP electrode; fast response; accurate measurement; easy to clean and maintain.


Scope of application:

- Environmental protection

- Education and Research

- Food and Beverage

- Aquaculture

- Waterworks

- Pool water


Technical parameters:


Item

Instrumentation electronic unit parameters

Instrument set measurement parameters

Redox Potential

Measuring range -1000-1000mV

Measuring range -1000-1000mV

Resolution 1mV

Resolution 1mV

Accuracy

±1mV

±5%F.S

Temperature

Measuring range

0.0℃~100.0℃/32-212℉

Range of use

0.0℃~60.0℃/32-140℉

Resolution

0.1℃/1℉

±0.5℃

Display Error

±0.5℃

Power supply

1*1.5V (AAA) size 7 battery

Calibration

1 point (any point calibration within full scale range)

ORP Electrode

Replaceable platinum round plane electrode

Auto Backlight

1 minute

Auto Optical

20 minutes

Screen

20*30mm multi-line LCD backlit display

Environment

0℃~60℃; Relative humidity <90%

Dimension

(W*L*H)180*40*45mm

Weight

95g

Protection class

IP65
