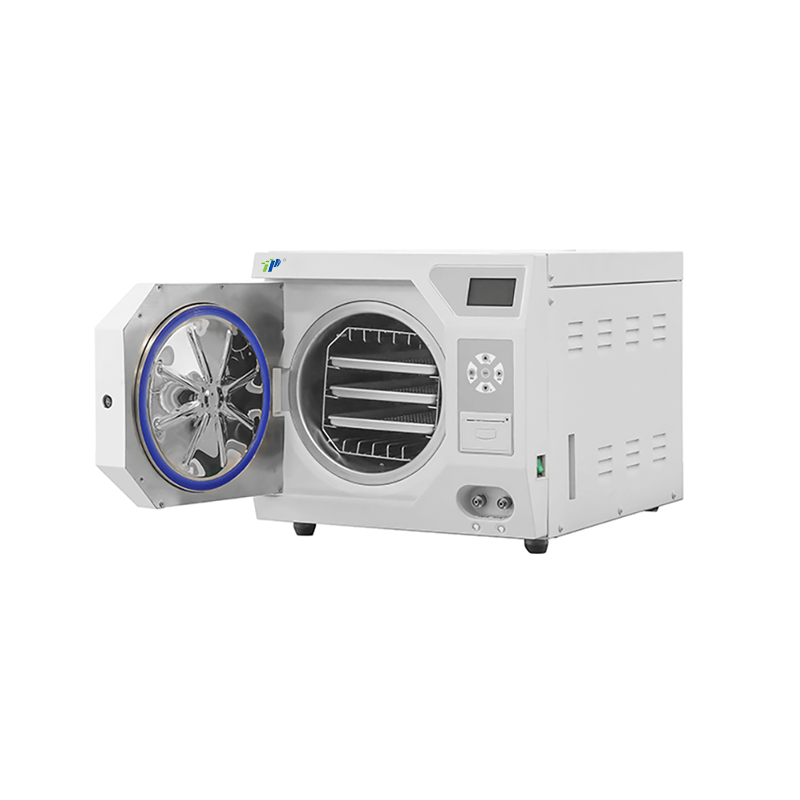

Class B Autoclave TM-23 | 23L Pre-Vacuum Steam Sterilizer with LCD Display for Medical & Laboratory Use
Chamber Capacity: 23 L (Ø250 × 452 mm)
Sterilization Temperature Range: 115–134°C | Nominal 134°C
Working Pressure: 0.22 MPa | Heating Type: Built-in Steam Generator
Vacuum System: Triple Pulsation Pre-Vacuum (EN13060 Class B)
Control & Display: Microcomputer Controller with LCD Display
Safety Features: Over-temperature, Over-pressure, Low-water, Anti-dry Burning, Safety Door Lock
Power Supply: AC220V/50Hz, 2200 W | Net Weight: 53 kg
Sterilization Temperature Range: 115–134°C | Nominal 134°C
Working Pressure: 0.22 MPa | Heating Type: Built-in Steam Generator
Vacuum System: Triple Pulsation Pre-Vacuum (EN13060 Class B)
Control & Display: Microcomputer Controller with LCD Display
Safety Features: Over-temperature, Over-pressure, Low-water, Anti-dry Burning, Safety Door Lock
Power Supply: AC220V/50Hz, 2200 W | Net Weight: 53 kg
| Quantity: | |
|---|---|
-
TM-23
-
TOP
Product advantages
Precise control and efficient sterilization
· The built-in independent steam generator can quickly generate saturated steam, andmake the steam fully contact every corner of the instrument under the pre-vacuumstate, which can truly achieve efficient and thorough sterilization
· Convenient operation, LCD dynamic display, and detailed display of current status duringsterilization
After vacuum deep drying, the drying achieves the best effect
· Meet the European grade B standard, three pulsating vacuum to ensure sterilization effect
· Pressure safety protection, overtemperature and overpressure double protection
· Fully comply with European EN13060 small sterilizer standard
· Multi-level protection, safe and reliable
Product details
· Automatic protection function: over temperature protection; over pressure protection low water level protection, anti-dry burning, safety door lock
· After sterilization, the buzzer will remind and the machine will stop automatically
· Automatically discharge cold air and steam after sterilization
· Built-in steam generator to quickly provide saturated steam.
· High-quality stainless steel liner, sealed cover
· Door lock safety interlock device
· BD test, HELIX test, vacuum test
· Equipped with standard test interface
· Open top water tank
· European Class B standard
· Triple pulsation vacuum
· LCD display, touch button
· Microcomputer control
Product advantages
Precise control and efficient sterilization
· The built-in independent steam generator can quickly generate saturated steam, andmake the steam fully contact every corner of the instrument under the pre-vacuumstate, which can truly achieve efficient and thorough sterilization
· Convenient operation, LCD dynamic display, and detailed display of current status duringsterilization
After vacuum deep drying, the drying achieves the best effect
· Meet the European grade B standard, three pulsating vacuum to ensure sterilization effect
· Pressure safety protection, overtemperature and overpressure double protection
· Fully comply with European EN13060 small sterilizer standard
· Multi-level protection, safe and reliable
Product details
· Automatic protection function: over temperature protection; over pressure protection low water level protection, anti-dry burning, safety door lock
· After sterilization, the buzzer will remind and the machine will stop automatically
· Automatically discharge cold air and steam after sterilization
· Built-in steam generator to quickly provide saturated steam.
· High-quality stainless steel liner, sealed cover
· Door lock safety interlock device
· BD test, HELIX test, vacuum test
· Equipped with standard test interface
· Open top water tank
· European Class B standard
· Triple pulsation vacuum
· LCD display, touch button
· Microcomputer control
