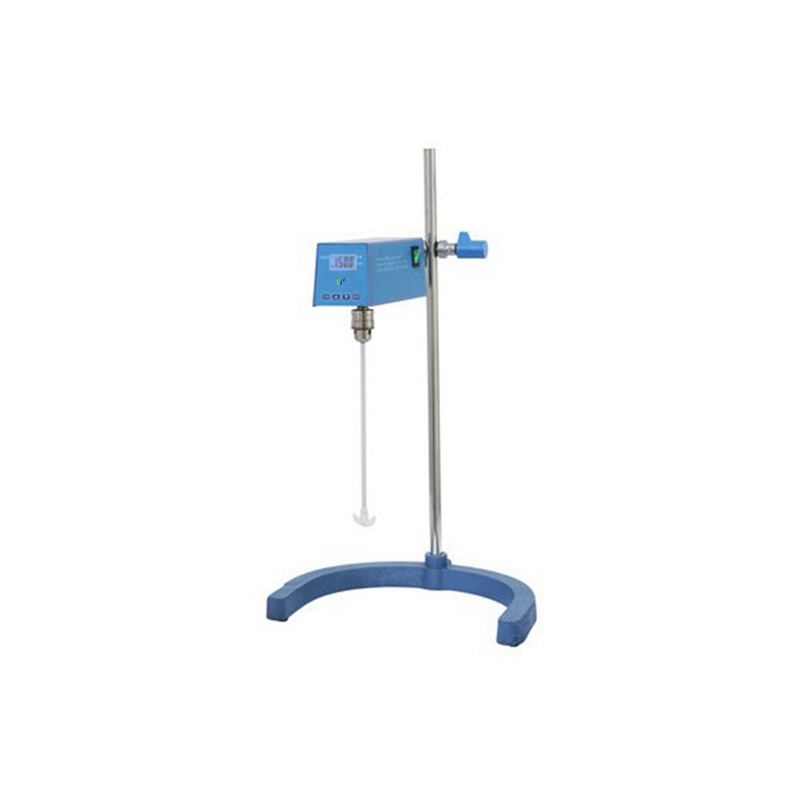

Brushless DC Overhead Stirrers – Digital Display, 0–1500 Rpm, High Torque Laboratory Mixers

You are here: home » Products » Hotplates & Stirrers » Overhead Stirrers / Mechanical Stirrers » Brushless DC Overhead Stirrers – Digital Display, 0–1500 Rpm, High Torque Laboratory Mixers

Product Category

Brushless DC Overhead Stirrers – Digital Display, 0–1500 Rpm, High Torque Laboratory Mixers

Motor Type: Brushless DC Motor
Motor Power: 40W / 100W / 150W / 250W
Torque: 200 mN·m / 450 mN·m / 600 mN·m / 1 N·m
Speed Range: 0–1500 rpm, Stepless, LCD Display
Stirring Rod Length & Material: 300–350 mm, PTFE or Stainless Steel
Chuck Clamping Range: Ø1.5–10 mm / Ø1.5–13 mm
Dimensions (Host): 410×93×160–180 mm | Weight: 12–12.6 kg

Quantity:
Availability:





Inquire Add to Basket

Model:
P2004G/P2010G/P2015G/P2025G
Brand:
TOP

Brushless DCmotor drive penetrationtype stirring shaft MCU closed-loop control Constant and stable rotational speed Digital display and speed setting,rotary encoder operation.

Constant speed electric mixer Fixed-speed laboratory mixer Industrial constant speed mixer Non-variable speed mixer Precision steady-speed mixer Reliable electric lab mixer Continuous-speed stirrer

Related Products

LED Digital Magnetic Hotplate Stirrer with Ceramic Plate P-H280-PRO

P-H280-PRO Magnetic Hotplate Stirrer – Digital Display, 10L Capacity, 550°C Heating for Laboratory Use

LCD Digital Hotplate Magnetic Stirrer P7-H550-PRO

P7-H550-PRO Magnetic Hotplate Stirrer – LCD Display, PID Control, 20L Capacity, 550°C Heating

LED Digital Magnetic Hotplate Stirrer P7-H550-S

P7-H550-S Magnetic Hotplate Stirrer – LED Display, 10L Capacity, 550°C Heating with PT1000 Sensor

LCD Digital Hotplate Magnetic Stirrer with Timer P-H-ProT

P-H-ProT Magnetic Hotplate Stirrer with LCD Display, Timer, PT1000 Sensor, and RS232 Data Interface

LCD Digital Hotplate Magnetic Stirrer P-H-PRO+

P-H-PRO+ Digital Magnetic Hotplate Stirrer with LCD Display, PT1000 Sensor, and RS232 Data Interface for Laboratory Use

Digital Magnetic Hotplate Stirrer TH Series

TH Series Magnetic Hotplate Stirrer – Adjustable Heating and Stirring for Laboratory and Industrial Use

Digital Magnetic Stirrer With Ceramic Plate TH Series

TH-4C/TH-II-4C Digital Magnetic Hotplate Stirrer – Adjustable Heating and Stirring with LCD Display for Laboratory and Industrial Use

P-H-S10 10-Position Magnetic Hotplate Stirrer – Multi-Sample Heating and Stirring with Adjustable Speed for Laboratory Use

Type	P2004G	P2010G	P2015G	P2025G
Control	Button	Button	Button	Button
Motor type	Brushless DC Motor	Brushless DC Motor	Brushless DC Motor	BrushlessDC Motor
Motor torque	200mN.M	450mN.M	600mN.M	1N.M
Motor Power	40W	100W	150W	250W
(AC) Voltage	220V	220V	220V	220V
(r/min) Speed Range	0~1500	0~1500	0~1500	0~1500
Digital Display	LCD	LCD	LCD	LCD
(mm) Stirring rod length	300	350	350	350
Stirring rod material	PTFE	Stainless steel	Stainless steel	Stainless steel
(mm) Pole length	700	700	700	700
(mm) chuck clamping range	φ1.5-10	φ1.5-13	φ1.5-13	φ1.5-13
(mm) Dimension	410×93×160(Host)	410×93×160(Host)	410×93×170(Host)	410×93×180(Host)
(kg) Weight	12	12.3	12.5	12.6

Type	P2004G	P2010G	P2015G	P2025G
Control	Button	Button	Button	Button
Motor type	Brushless DC Motor	Brushless DC Motor	Brushless DC Motor	BrushlessDC Motor
Motor torque	200mN.M	450mN.M	600mN.M	1N.M
Motor Power	40W	100W	150W	250W
(AC) Voltage	220V	220V	220V	220V
(r/min) Speed Range	0~1500	0~1500	0~1500	0~1500
Digital Display	LCD	LCD	LCD	LCD
(mm) Stirring rod length	300	350	350	350
Stirring rod material	PTFE	Stainless steel	Stainless steel	Stainless steel
(mm) Pole length	700	700	700	700
(mm) chuck clamping range	φ1.5-10	φ1.5-13	φ1.5-13	φ1.5-13
(mm) Dimension	410×93×160(Host)	410×93×160(Host)	410×93×170(Host)	410×93×180(Host)
(kg) Weight	12	12.3	12.5	12.6
