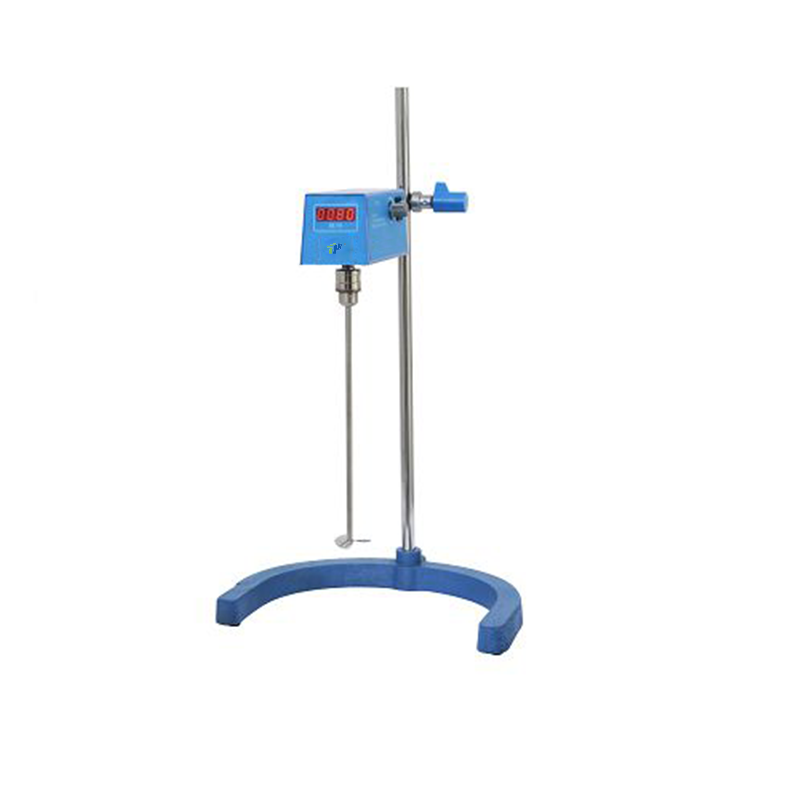

Brushless DC Motor Overhead Stirrers | Digital Speed Display Laboratory Mixers 50W–200W

You are here: home » Products » Hotplates & Stirrers » Overhead Stirrers / Mechanical Stirrers » Brushless DC Motor Overhead Stirrers | Digital Speed Display Laboratory Mixers 50W–200W

Product Category

Brushless DC Motor Overhead Stirrers | Digital Speed Display Laboratory Mixers 50W–200W

Motor Type: Brushless DC Motor (50W / 90W / 200W)
Torque: 200 mN·m / 450 mN·m / 1 N·m
Speed Range: 0–1500 rpm, Stepless Control, LED Digital Display
Voltage: AC 220V
Chuck Clamping Range: Ø1.5–10 mm (PB50-S) / Ø1.5–13 mm (PB90-S & PB200-S)
Stirring Rod: PTFE (PB50-S) or Stainless Steel (PB90-S & PB200-S)
Dimensions (Host): 390×93×160 mm / 390×93×180 mm

Quantity:
Availability:





Inquire Add to Basket

Model:
PB50-S/PB90-S/PB200-S
Brand:
TOP

Brushless DC motor drive;Digital display rotation speed.

Electric laboratory mixer Industrial electric mixer Commercial stand mixer Heavy-duty mixing machine Digital control electric mixer Benchtop lab mixer Variable-speed electric mixer Portable electric stirrer

Related Products

LED Digital Magnetic Hotplate Stirrer with Ceramic Plate P-H280-PRO

Digital Magnetic Hotplate Stirrer, 550°C, P-H280-PRO

LCD Digital Hotplate Magnetic Stirrer P7-H550-PRO

Digital Magnetic Hotplate Stirrer, 550°C, P7-H550-PRO

LED Digital Magnetic Hotplate Stirrer P7-H550-S

Digital Magnetic Hotplate Stirrer, 550°C, P7-H550-S

LCD Digital Hotplate Magnetic Stirrer with Timer P-H-ProT

Digital Magnetic Hotplate Stirrer, 340°C, P-H-ProT

LCD Digital Hotplate Magnetic Stirrer P-H-PRO+

Digital Magnetic Hotplate Stirrer, 340°C, P-H-PRO+

Digital Magnetic Hotplate Stirrer TH Series

Magnetic Hotplate Stirrer, 380℃

Digital Magnetic Stirrer With Ceramic Plate TH Series

Digital Magnetic Hotplate Stirrer

10-Position Magnetic Hotplate Stirrer

Type	PB50-S	PB90-S	PB200-S
Control	Knob	Knob	Knob
Motor type	Brushless DC Motor	BrushlessDC Motor	Brushless DC Motor
Motor torque	200mN.M	450mN.M	1N.M
Motor Power	50W	90W	200W
( AC ) Voltage	220V	220V	220V
(r/min) Speed Range	0~1500	0~1500	0~1500
Digital Display	LED	LED	LED
(mm) Stirring rod length	300	350	350
Stirring rod material	PTFE	Stainless steel	Stainless steel
(mm) Pole length	700	700	700
(mm) chuck clamping range	φ1.5-10	φ1.5-13	φ1.5-13
(mm) Dimension	390×93×160(Host)	390×93×160(Host)	390×93×180(Host)
(kg)Weight	8.4	12.1	12.5

Type	PB50-S	PB90-S	PB200-S
Control	Knob	Knob	Knob
Motor type	Brushless DC Motor	BrushlessDC Motor	Brushless DC Motor
Motor torque	200mN.M	450mN.M	1N.M
Motor Power	50W	90W	200W
( AC ) Voltage	220V	220V	220V
(r/min) Speed Range	0~1500	0~1500	0~1500
Digital Display	LED	LED	LED
(mm) Stirring rod length	300	350	350
Stirring rod material	PTFE	Stainless steel	Stainless steel
(mm) Pole length	700	700	700
(mm) chuck clamping range	φ1.5-10	φ1.5-13	φ1.5-13
(mm) Dimension	390×93×160(Host)	390×93×160(Host)	390×93×180(Host)
(kg)Weight	8.4	12.1	12.5
