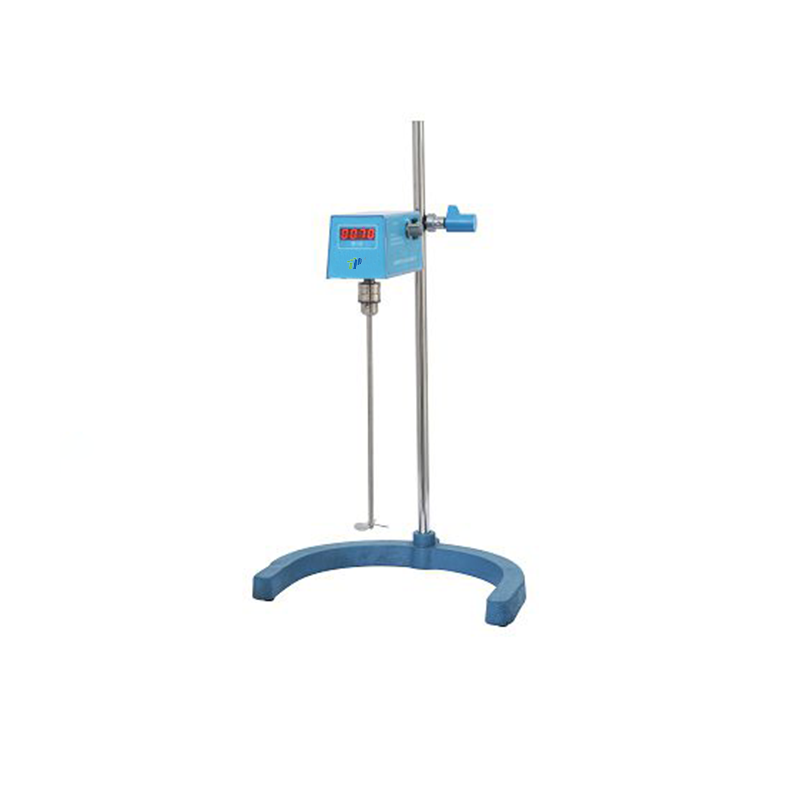

Brushless DC Motor Overhead Stirrer with Digital Speed Display, High Torque Laboratory Mixer (40–250W, 0–1500 rpm)

You are here: home » Products » Hotplates & Stirrers » Overhead Stirrers / Mechanical Stirrers » Brushless DC Motor Overhead Stirrer with Digital Speed Display, High Torque Laboratory Mixer (40–250W, 0–1500 rpm)

Product Category

Brushless DC Motor Overhead Stirrer with Digital Speed Display, High Torque Laboratory Mixer (40–250W, 0–1500 rpm)

Control Method: Knob speed control with LED digital display
Motor Type: Brushless DC motor (high torque, long lifespan)
Power / Torque: 40W / 200 mN·m, 100W / 450 mN·m, 150W / 600 mN·m, 250W / 1 N·m
Speed Range: 0–1500 rpm (adjustable)
Chuck Clamping Range: φ1.5–10 mm (P2004W) / φ1.5–13 mm (P2010W/P2015W/P2025W)
Stirring Rod Material: PTFE or stainless steel (optional)
Dimensions / Weight: 390×93×160/180 mm; 8.4–13 kg

Quantity:
Availability:





Inquire Add to Basket

Model:
P2004W/P2010W/P2015W/P2025W
Brand:
TOP

Brushless DC motor drive; Digital display rotation speed.

Electric laboratory mixer Industrial electric mixer Commercial stand mixer Heavy-duty mixing machine Digital control electric mixer Benchtop lab mixer Variable-speed electric mixer Portable electric stirrer

Related Products

LED Digital Magnetic Hotplate Stirrer with Ceramic Plate P-H280-PRO

P-H280-PRO Magnetic Hotplate Stirrer – Digital Display, 10L Capacity, 550°C Heating for Laboratory Use

LCD Digital Hotplate Magnetic Stirrer P7-H550-PRO

P7-H550-PRO Magnetic Hotplate Stirrer – LCD Display, PID Control, 20L Capacity, 550°C Heating

LED Digital Magnetic Hotplate Stirrer P7-H550-S

P7-H550-S Magnetic Hotplate Stirrer – LED Display, 10L Capacity, 550°C Heating with PT1000 Sensor

LCD Digital Hotplate Magnetic Stirrer with Timer P-H-ProT

P-H-ProT Magnetic Hotplate Stirrer with LCD Display, Timer, PT1000 Sensor, and RS232 Data Interface

LCD Digital Hotplate Magnetic Stirrer P-H-PRO+

P-H-PRO+ Digital Magnetic Hotplate Stirrer with LCD Display, PT1000 Sensor, and RS232 Data Interface for Laboratory Use

Digital Magnetic Hotplate Stirrer TH Series

TH Series Magnetic Hotplate Stirrer – Adjustable Heating and Stirring for Laboratory and Industrial Use

Digital Magnetic Stirrer With Ceramic Plate TH Series

TH-4C/TH-II-4C Digital Magnetic Hotplate Stirrer – Adjustable Heating and Stirring with LCD Display for Laboratory and Industrial Use

P-H-S10 10-Position Magnetic Hotplate Stirrer – Multi-Sample Heating and Stirring with Adjustable Speed for Laboratory Use

Type	P2004W	P2010W	P2015W	P2025W
Control	Knob	Knob	Knob	Knob
Motor type	BrushlessDC Motor	Brushless DC Motor	Brushless DC Motor	BrushlessDCMotor
Motor torque	200mN.M	450mN.M	600mN.M	1N.M
Motor Power	40W	100W	150W	250W
( A C ) Voltage	220V	220V	220V	220V
(r/min) Speed Range	0~1500	0~1500	0~1500	0~1500
Digital Display	LED	LED	LED	LED
(mm)Stirring rod length	300	350	350	350
Stirring rod material	PTFE	Stainless steel	Stainless steel	Stainless steel
(mm) Pole length	700	700	700	700
(mm)chuck clamping range	φ1.5-10	φ1.5-13	φ1.5-13	φ1.5-13
(mm) Dimension	390×93×160(Host)	390×93×160(Host)	390×93×180(Host)	390×93×180(Host)
(kg) Weight	8.4	12.1	12.5	13

Type	P2004W	P2010W	P2015W	P2025W
Control	Knob	Knob	Knob	Knob
Motor type	BrushlessDC Motor	Brushless DC Motor	Brushless DC Motor	BrushlessDCMotor
Motor torque	200mN.M	450mN.M	600mN.M	1N.M
Motor Power	40W	100W	150W	250W
( A C ) Voltage	220V	220V	220V	220V
(r/min) Speed Range	0~1500	0~1500	0~1500	0~1500
Digital Display	LED	LED	LED	LED
(mm)Stirring rod length	300	350	350	350
Stirring rod material	PTFE	Stainless steel	Stainless steel	Stainless steel
(mm) Pole length	700	700	700	700
(mm)chuck clamping range	φ1.5-10	φ1.5-13	φ1.5-13	φ1.5-13
(mm) Dimension	390×93×160(Host)	390×93×160(Host)	390×93×180(Host)	390×93×180(Host)
(kg) Weight	8.4	12.1	12.5	13
