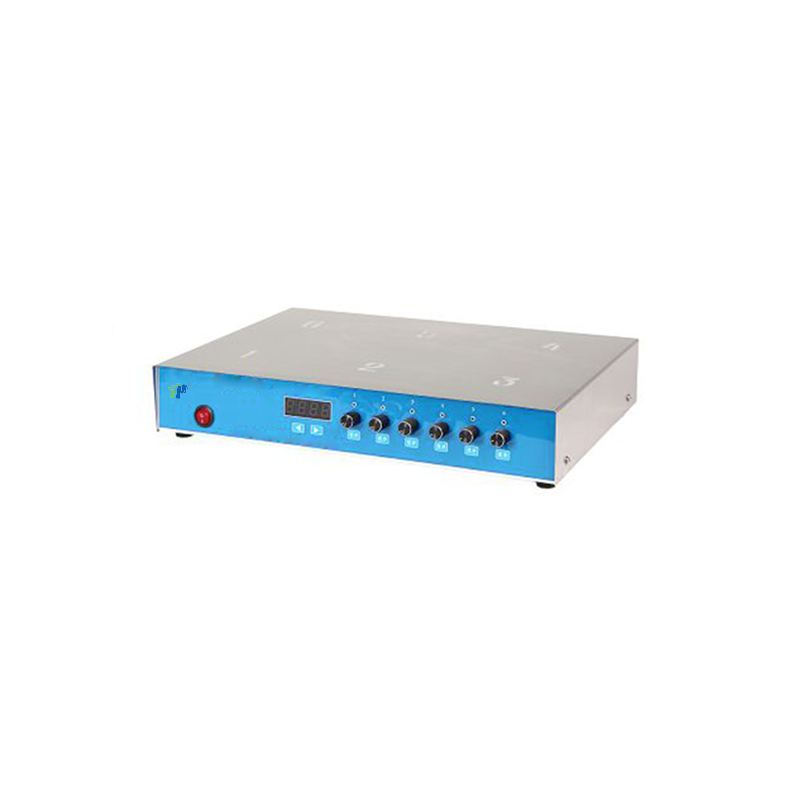

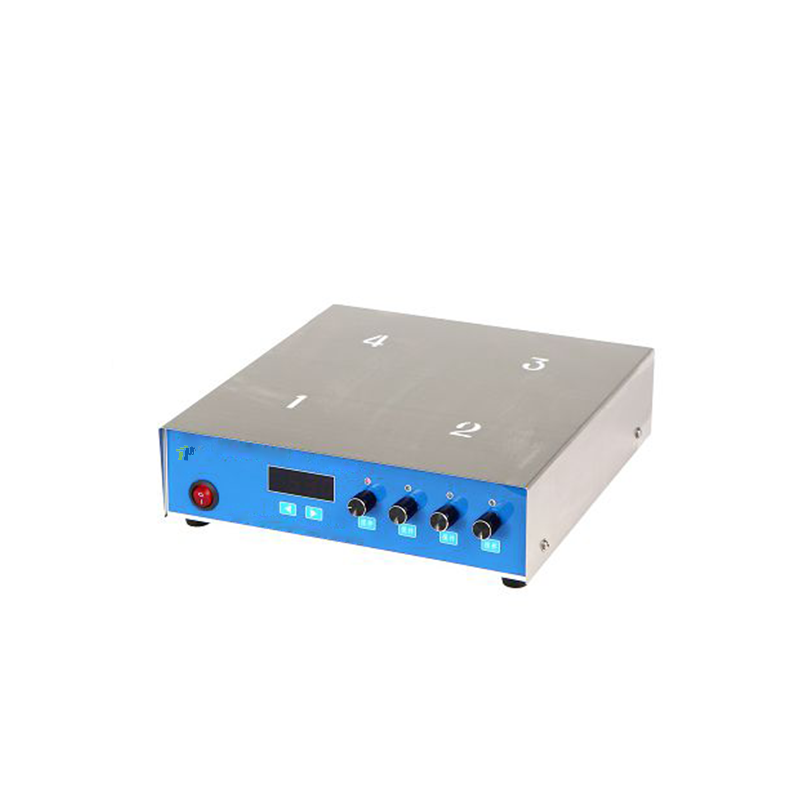

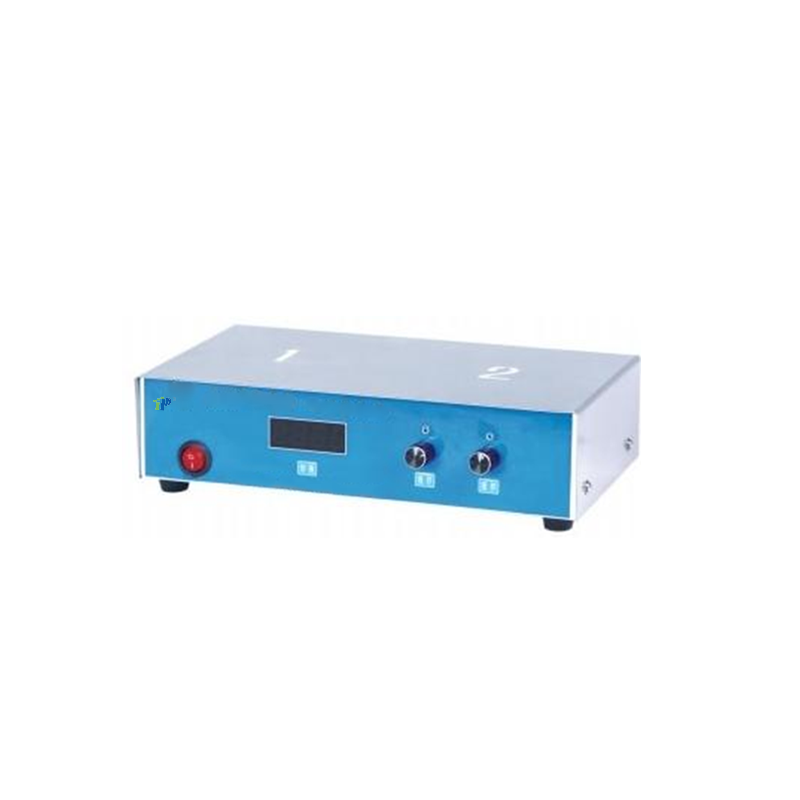

Brushless DC Motor Multi-Position Magnetic Stirrer with Dual LED Display, Independent Control, 2/4/6 Stations, 0–1500 rpm
Control Method: Knob + button control, dual LED display windows
Motor Type: Brushless DC motor (low noise, long lifespan)
Mixing Positions: 2, 4, or 6 stations (independent operation)
Max Stirring Capacity: 1.5 L per station
Speed Range: 0–1500 rpm (adjustable)
Work Plate Material: Stainless steel countertop
Dimensions / Weight: 280×165×80 mm / 6 kg (2-position), 290×275×80 mm / 8.2 kg (4-position), 420×275×80 mm / 11 kg (6-position)
Motor Type: Brushless DC motor (low noise, long lifespan)
Mixing Positions: 2, 4, or 6 stations (independent operation)
Max Stirring Capacity: 1.5 L per station
Speed Range: 0–1500 rpm (adjustable)
Work Plate Material: Stainless steel countertop
Dimensions / Weight: 280×165×80 mm / 6 kg (2-position), 290×275×80 mm / 8.2 kg (4-position), 420×275×80 mm / 11 kg (6-position)
| Availability: | |
|---|---|
| Quantity: | |
-
PYP84-1 (II) / PYP84-1 (IV) / PYP84-1 (VI)
-
TOP
Brushless DC motor drive, variable speed. 2 LED display windows, Every station can be operated independently Stainless steel countertops.
Brushless DC motor drive, variable speed. 2 LED display windows, Every station can be operated independently Stainless steel countertops.
Type | PYP84-1 (II) | PYP84-1 (IV) | PYP84-1 (VI) |
Control | Knob+Button | Knob+Button | Knob+Button |
( A C ) Voltage | 220V | 220V | 220V |
Mixing site | 2 | 4 | 6 |
Max.stirring capacity | 1.5L×2 | 1.5L×4 | 1.5L×6 |
Motor type | BrushlessDC Motor | Brushless DC Motor | Brushless DC Motor |
Motor Power | 8W×2 | 8W×4 | 8W×6 |
Digital Display | Speed | Speed | Speed |
(r/min) Speed Range | 0~1500 | 0~1500 | 0~1500 |
Working plate material | Stainless steel | Stainless steel | Stainless steel |
(mm) Dimension | 280×165×80 | 290×275×80 | 420×275×80 |
(kg) Weight | 6 | 8.2 | 11 |
Type | PYP84-1 (II) | PYP84-1 (IV) | PYP84-1 (VI) |
Control | Knob+Button | Knob+Button | Knob+Button |
( A C ) Voltage | 220V | 220V | 220V |
Mixing site | 2 | 4 | 6 |
Max.stirring capacity | 1.5L×2 | 1.5L×4 | 1.5L×6 |
Motor type | BrushlessDC Motor | Brushless DC Motor | Brushless DC Motor |
Motor Power | 8W×2 | 8W×4 | 8W×6 |
Digital Display | Speed | Speed | Speed |
(r/min) Speed Range | 0~1500 | 0~1500 | 0~1500 |
Working plate material | Stainless steel | Stainless steel | Stainless steel |
(mm) Dimension | 280×165×80 | 290×275×80 | 420×275×80 |
(kg) Weight | 6 | 8.2 | 11 |
