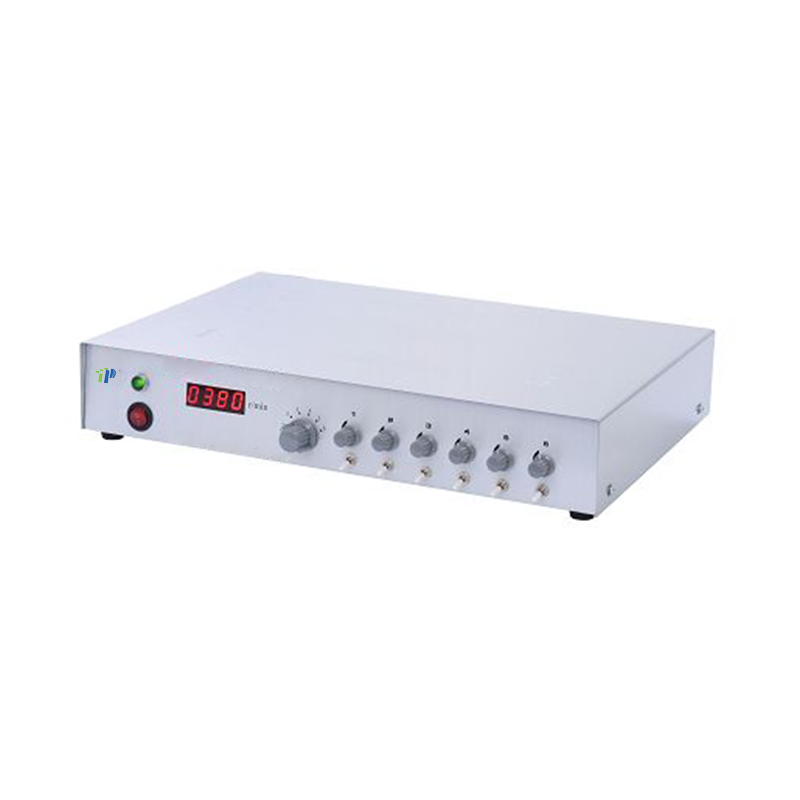

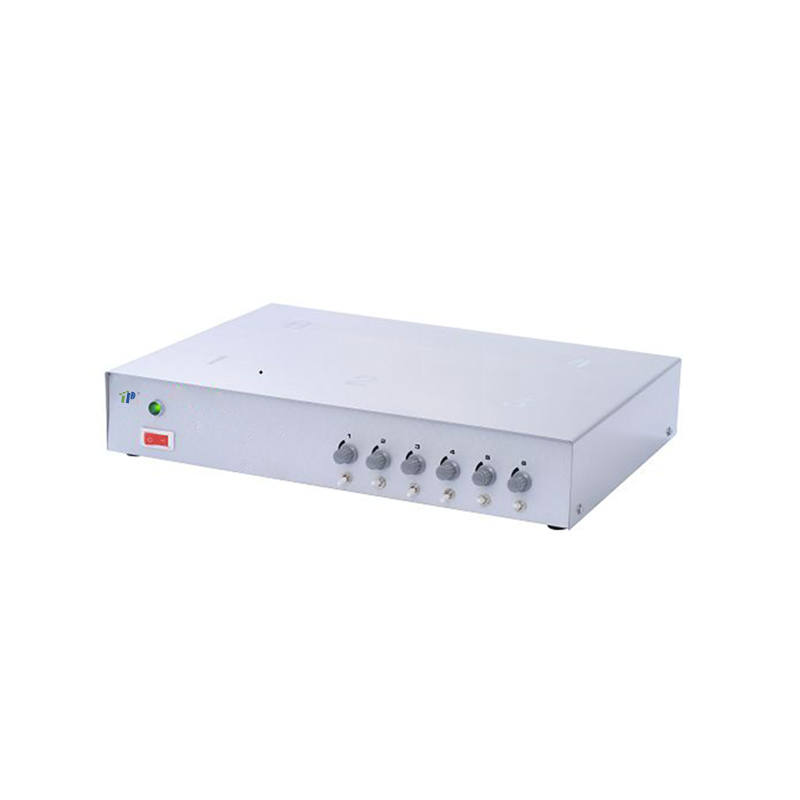

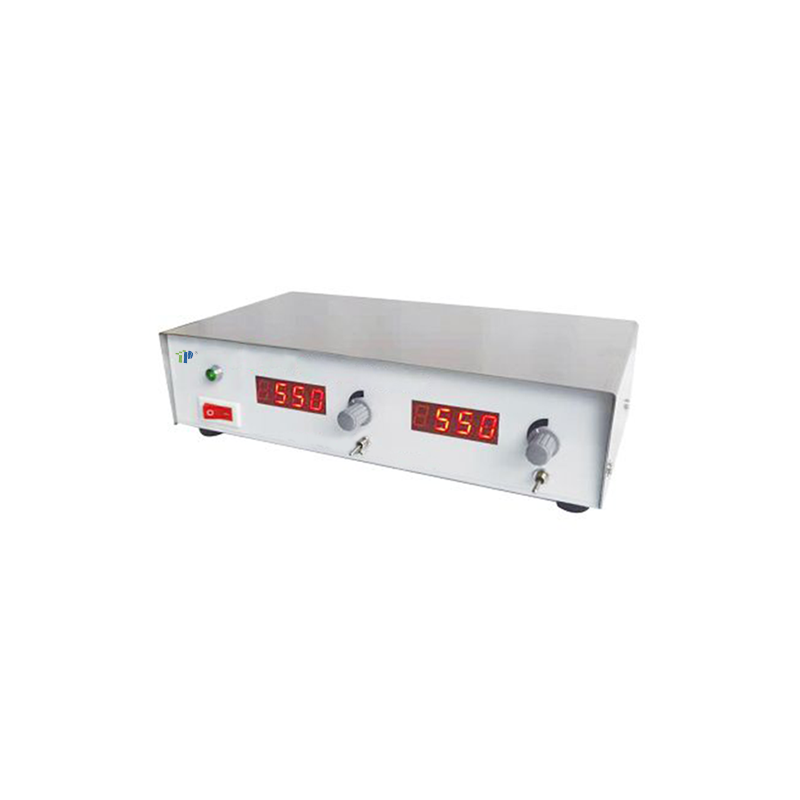

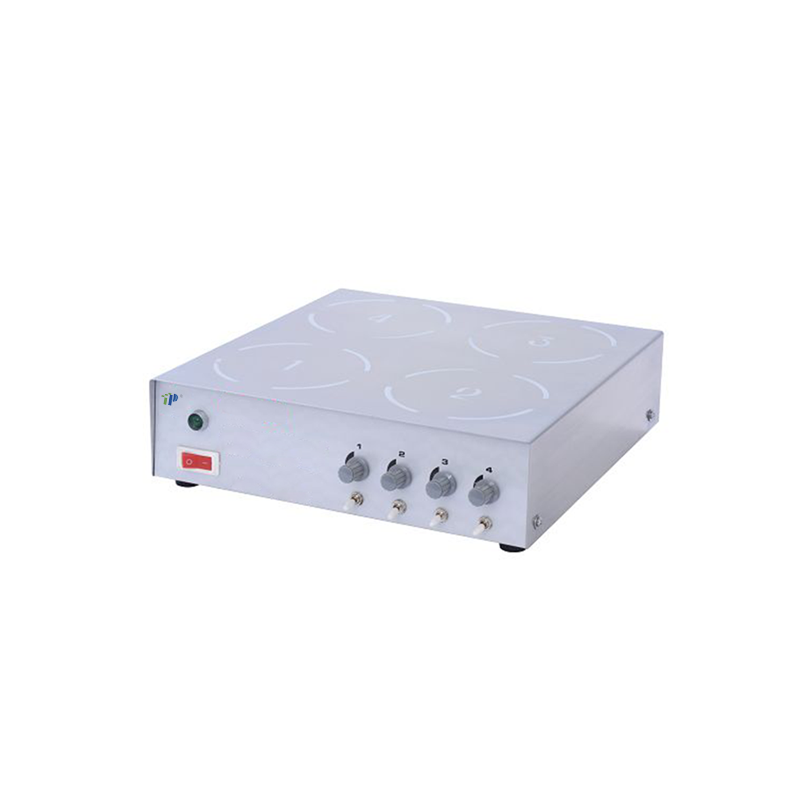

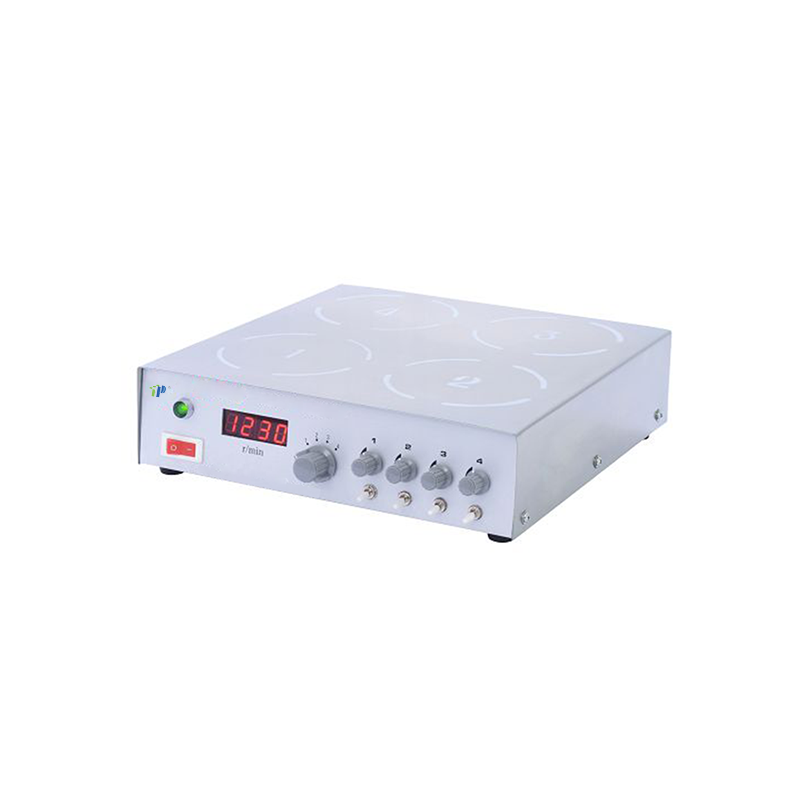

Brushless DC Motor Multi-Position Magnetic Stirrer, 2/4/6 Stations, Independent Control, Stainless Steel Plate, 0–1500 rpm

Control Method: Knob control, dual LED speed display (84-1) / no display (84-1A)
Motor Type: Brushless DC motor, low noise and long service life
Mixing Positions: 2, 4, or 6 stations, each independently controlled
Max Stirring Capacity: 1.5 L per station
Speed Range: 0–1500 rpm (adjustable)
Work Plate Material: Stainless steel countertop
Dimensions / Weight: 280×165×80 mm / 6 kg (2-position), 290×280×80 mm / 8.2 kg (4-position), 420×300×80 mm / 11 kg (6-position)

Quantity:
Availability:





Inquire Add to Basket

Model:
84-1 (II) / 84-1 (IV) / 84-1 (VI) / 84-1A (II) / 84-1A (IV) / 84-1A (VI)
Brand:
TOP

Brushless Dc motor drive,variable speed. 2 LED display windows,Every station can be operated independently Stainless steel countertops.

Parallel magnetic stirrer with heating Multi-sample heated stirrer lab Programmable multi-position stirrer Multi-zone lab stirrer hotplate Multi-position magnetic stirrer with heating Simultaneous heating magnetic stirrer

Related Products

LED Digital Magnetic Hotplate Stirrer with Ceramic Plate P-H280-PRO

P-H280-PRO Magnetic Hotplate Stirrer – Digital Display, 10L Capacity, 550°C Heating for Laboratory Use

LCD Digital Hotplate Magnetic Stirrer P7-H550-PRO

P7-H550-PRO Magnetic Hotplate Stirrer – LCD Display, PID Control, 20L Capacity, 550°C Heating

LED Digital Magnetic Hotplate Stirrer P7-H550-S

P7-H550-S Magnetic Hotplate Stirrer – LED Display, 10L Capacity, 550°C Heating with PT1000 Sensor

LCD Digital Hotplate Magnetic Stirrer with Timer P-H-ProT

P-H-ProT Magnetic Hotplate Stirrer with LCD Display, Timer, PT1000 Sensor, and RS232 Data Interface

LCD Digital Hotplate Magnetic Stirrer P-H-PRO+

P-H-PRO+ Digital Magnetic Hotplate Stirrer with LCD Display, PT1000 Sensor, and RS232 Data Interface for Laboratory Use

Digital Magnetic Hotplate Stirrer TH Series

TH Series Magnetic Hotplate Stirrer – Adjustable Heating and Stirring for Laboratory and Industrial Use

Digital Magnetic Stirrer With Ceramic Plate TH Series

TH-4C/TH-II-4C Digital Magnetic Hotplate Stirrer – Adjustable Heating and Stirring with LCD Display for Laboratory and Industrial Use

P-H-S10 10-Position Magnetic Hotplate Stirrer – Multi-Sample Heating and Stirring with Adjustable Speed for Laboratory Use

Type	84-1 (II)	84-1 (IV)	84-1 (VI)	84-1A (II)	84-1A (IV)	84-1A (VI)
Control	Knob	Knob	Knob	Knob	Knob	Knob
( A C ) Voltage	220V	220V	220V	220V	220V	220V
Mixing site	2	4	6	2	4	6
Max.stirring capacity	1.5L×2	1.5L×4	1.5L×6	1.5L×2	1.5L×4	1.5L×6
Motor type	Brushless DCMotor	Brushless DCMotor	Brushless DCMotor	Brushless DCMotor	Brushless DCMotor	Brushless DCMotor
MotorPower	8W×2	8W×4	8W×6	8W×2	8W×4	8W×6
Digital Display	Speed	Speed	Speed	一	一	一
(r/min) Speed Range	0~1500	0~1500	0~1500	0~1500	0~1500	0~1500
Working plate material	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
(mm) Dimension	280×165×80	290×280×80	420×300×80	280×165×80	290×280×80	420×300×80
(kg) Weight	6	8.2	11	6	8.2	11

Type	84-1 (II)	84-1 (IV)	84-1 (VI)	84-1A (II)	84-1A (IV)	84-1A (VI)
Control	Knob	Knob	Knob	Knob	Knob	Knob
( A C ) Voltage	220V	220V	220V	220V	220V	220V
Mixing site	2	4	6	2	4	6
Max.stirring capacity	1.5L×2	1.5L×4	1.5L×6	1.5L×2	1.5L×4	1.5L×6
Motor type	Brushless DCMotor	Brushless DCMotor	Brushless DCMotor	Brushless DCMotor	Brushless DCMotor	Brushless DCMotor
MotorPower	8W×2	8W×4	8W×6	8W×2	8W×4	8W×6
Digital Display	Speed	Speed	Speed	一	一	一
(r/min) Speed Range	0~1500	0~1500	0~1500	0~1500	0~1500	0~1500
Working plate material	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
(mm) Dimension	280×165×80	290×280×80	420×300×80	280×165×80	290×280×80	420×300×80
(kg) Weight	6	8.2	11	6	8.2	11
