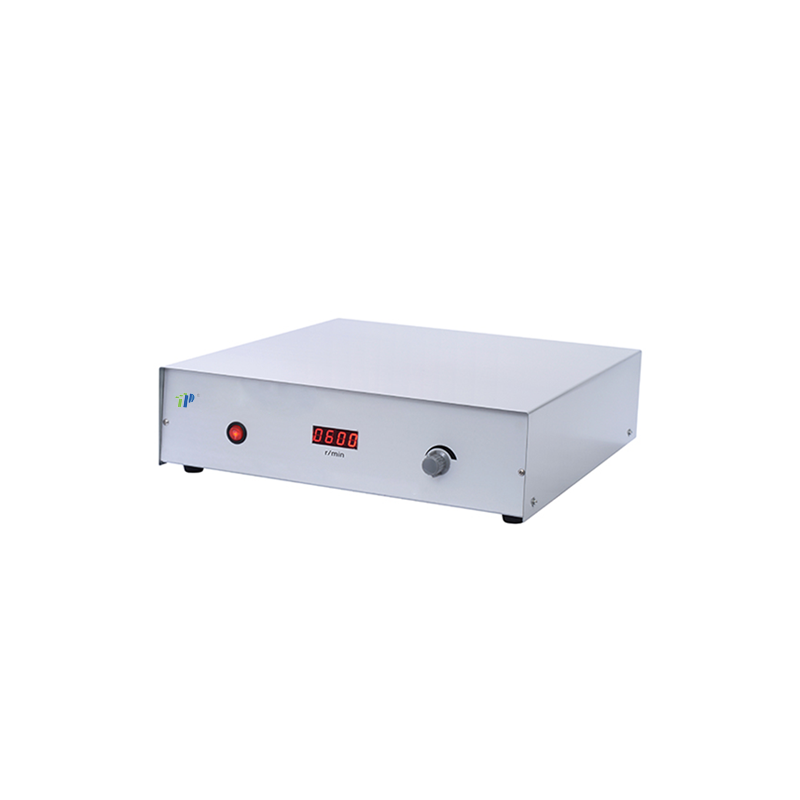

Brushless DC Motor Magnetic Stirrer with Knob Control, 20L & 50L Capacity, Stainless Steel Plate, Optional Heating & Digital Display
Motor Type: Brushless DC motor with strong magnetic force
Control Method: Knob control; optional digital speed display or voltmeter (90-1A)
Max Stirring Capacity: 20 L (90 series), 50 L (96-1, P01-2)
Speed Range: 0–2000 rpm (90 series), 0–1400 rpm (96-1, P01-2)
Work Plate Material: Stainless steel countertop
Dimensions (mm): 305×300×105 (90 series), 410×400×115 (96-1, P01-2)
Special Feature (90-1A): Adjustable output voltage socket with heating pipe and temperature control
Control Method: Knob control; optional digital speed display or voltmeter (90-1A)
Max Stirring Capacity: 20 L (90 series), 50 L (96-1, P01-2)
Speed Range: 0–2000 rpm (90 series), 0–1400 rpm (96-1, P01-2)
Work Plate Material: Stainless steel countertop
Dimensions (mm): 305×300×105 (90 series), 410×400×115 (96-1, P01-2)
Special Feature (90-1A): Adjustable output voltage socket with heating pipe and temperature control
| Availability: | |
|---|---|
| Quantity: | |
-
90-1/90-1A/90-1B/96-1/P01-2
-
TOP
Brushless DC motor drive,variable speed.Stainless steel working face Strong magneticforce Structure is strong enough to withstand ten weight of the maximum stirring capacity The company's self-produced special speed range can be customized.
Brushless DC motor drive,variable speed.Stainless steel working face Strong magneticforce Structure is strong enough to withstand ten weight of the maximum stirring capacity The company's self-produced special speed range can be customized.

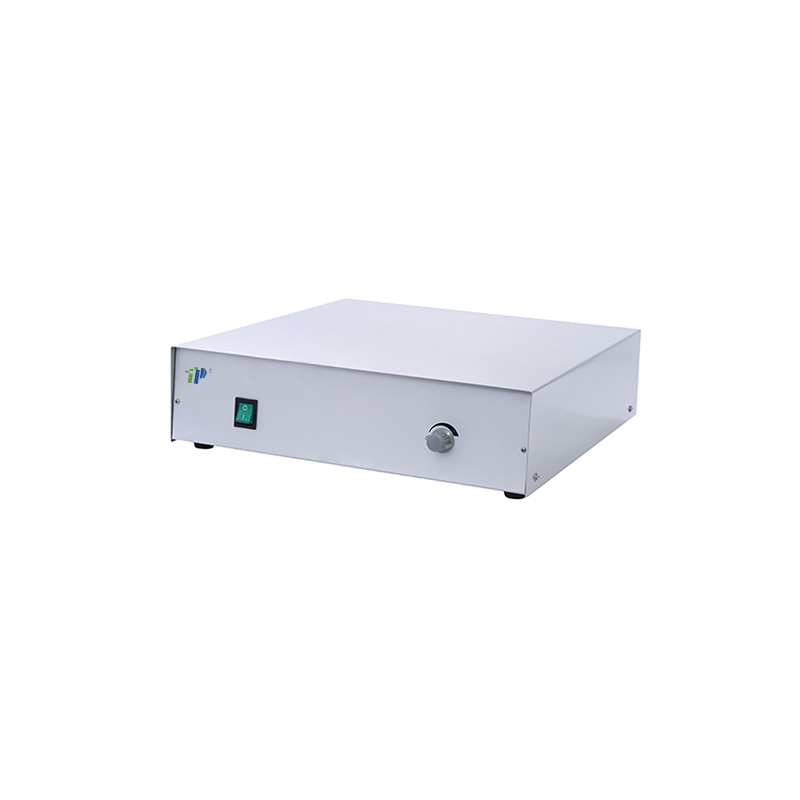

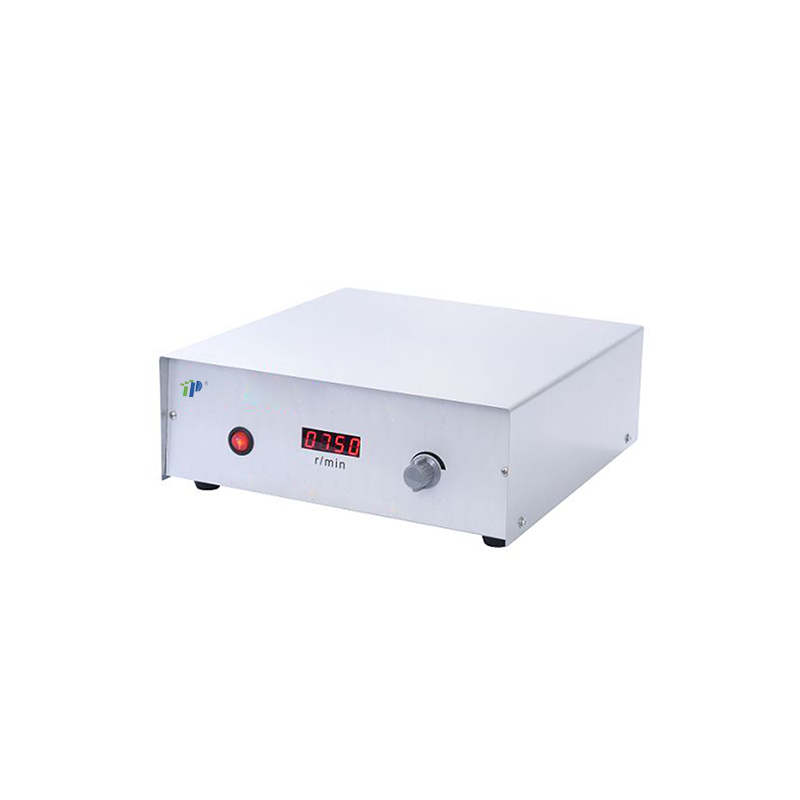

Type | 90-1 | 90-1A | 90-1B | 96-1 | P01-2 |
Control | Knob | Knob | Knob | Knob | Knob |
( AC ) Voltage | 220V | 220V | 220V | 220V | 220V |
Max.stirring capacity | 20L | 20L | 20L | 50L | 50L |
Motor type | Brushless DC Motor | Brushless DC Motor | Brushless DC Motor | Brushless DC Motor | Brushless DC Motor |
Motor Power | 40W | 40W | 40W | 100W | 100W |
Digital Display | 一 | Voltmeter shows the outputvoltage | Speed | 一 | Speed |
(r/min) Speed Range | 0~2000 | 0~2000 | 0~2000 | 0~1400 | 0~1400 |
Working platematerial | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainlesssteel |
(mm) Dimension | 305×300×105 | 305×300×105 | 305×300×105 | 410×400×115 | 410×400×115 |
(kg) Weight | 8.6 | 8.6 | 8.6 | 12.2 | 12.2 |

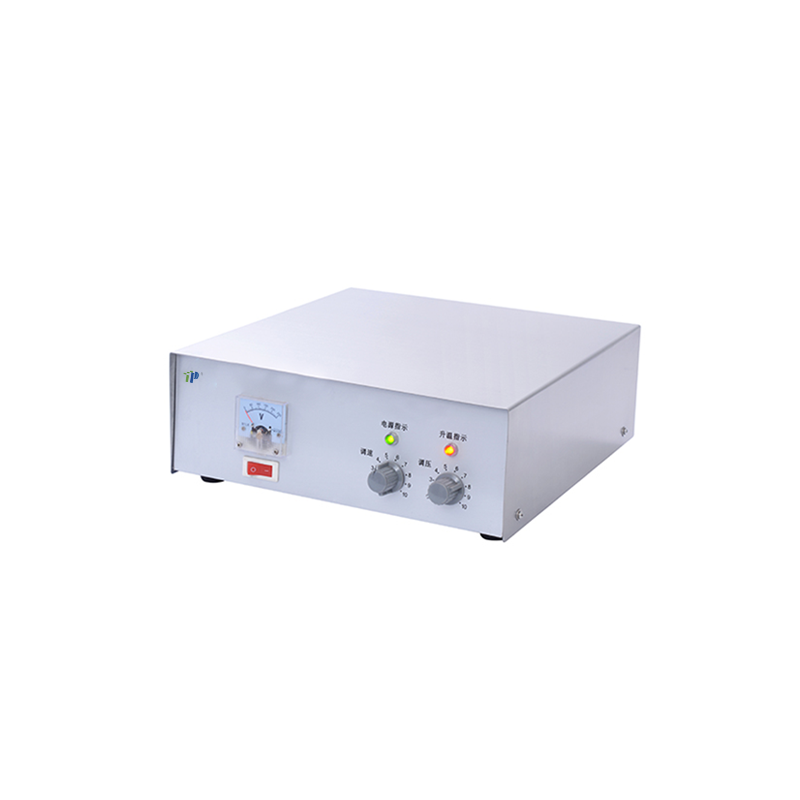

Note:The output voltage is adjustable for a 220V socket equipped with 90-1A magnetic stirrer.Coupled with heating pipes and conductive thermometers,Temperature control is available for it.
Type | 90-1 | 90-1A | 90-1B | 96-1 | P01-2 |
Control | Knob | Knob | Knob | Knob | Knob |
( AC ) Voltage | 220V | 220V | 220V | 220V | 220V |
Max.stirring capacity | 20L | 20L | 20L | 50L | 50L |
Motor type | Brushless DC Motor | Brushless DC Motor | Brushless DC Motor | Brushless DC Motor | Brushless DC Motor |
Motor Power | 40W | 40W | 40W | 100W | 100W |
Digital Display | 一 | Voltmeter shows the outputvoltage | Speed | 一 | Speed |
(r/min) Speed Range | 0~2000 | 0~2000 | 0~2000 | 0~1400 | 0~1400 |
Working platematerial | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainlesssteel |
(mm) Dimension | 305×300×105 | 305×300×105 | 305×300×105 | 410×400×115 | 410×400×115 |
(kg) Weight | 8.6 | 8.6 | 8.6 | 12.2 | 12.2 |
Note:The output voltage is adjustable for a 220V socket equipped with 90-1A magnetic stirrer.Coupled with heating pipes and conductive thermometers,Temperature control is available for it.
