Brushless DC Motor Magnetic Stirrer, Stainless Steel Plate, 2–20 L Capacity, 0–1500/2000 rpm, Optional Heating & Speed Display
Motor Type: Brushless DC motor (low noise, long lifespan)
Control Method: Knob control; optional speed display or voltmeter (98-1)
Max Stirring Capacity: 2 L, 3 L, 5 L, 10 L, or 20 L (depending on model)
Speed Range: 0–1500 rpm or 0–2000 rpm (model-specific)
Work Plate Material: Stainless steel working surface
Dimensions / Weight: 120×130×65 mm / 1.2 kg to 210×210×105 mm / 4.13 kg
Special Feature (98-1): Rear 220V socket, adjustable output voltage, heating tube with temperature control
Control Method: Knob control; optional speed display or voltmeter (98-1)
Max Stirring Capacity: 2 L, 3 L, 5 L, 10 L, or 20 L (depending on model)
Speed Range: 0–1500 rpm or 0–2000 rpm (model-specific)
Work Plate Material: Stainless steel working surface
Dimensions / Weight: 120×130×65 mm / 1.2 kg to 210×210×105 mm / 4.13 kg
Special Feature (98-1): Rear 220V socket, adjustable output voltage, heating tube with temperature control
| Availability: | |
|---|---|
| Quantity: | |
-
85-1A/85-1/85-2A/98-1/98-2/P03-A/P03-B
-
TOP
Brushless DC motor drive, Stainless steel working face Diferent dimensions and mixing capacity to adapt to different requirements.
Brushless DC motor drive, Stainless steel working face Diferent dimensions and mixing capacity to adapt to different requirements.
Type | 85-1A | 85-1 | 85-2A | 98-1 | 98-2 | P03-A | P03-B |
Control | Knob | Knob | Knob | Knob | Knob | Knob | Knob |
( AC ) Voltage | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
Max.stirring capacity | 2L | 3L | 5L | 10L | 10L | 10L | 20L |
Motor type | BrushlessDCMotor | BrushlessDCMotor | Brushless DCMotor | BrushlessDCMotor | BrushlessDCMotor | BrushlessDCMotor | BrushlessDCMotor |
MotorPower | 4W | 8W | 10W | 15W | 15W | 15W | 40W |
Digital Display | — | Voltmeter shows the output voltage | Speed | Speed | |||
(r/min) SpeedRange | 0~2000 | 0~1500 | 0~2000 | 0~2000 | 0~2000 | 0~2000 | 0~2000 |
Working plate material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainlesssteel | Stainless steel |
(mm) Dimension | 120×130×65 | 210×130×65 | 245×145×100 | 260×160×110 | 260×160×85 | 210×210×85 | 210×210×105 |
(kg) Weight | 1.2 | 2.5 | 3.8 | 4.7 | 4.8 | 4.1 | 4.13 |

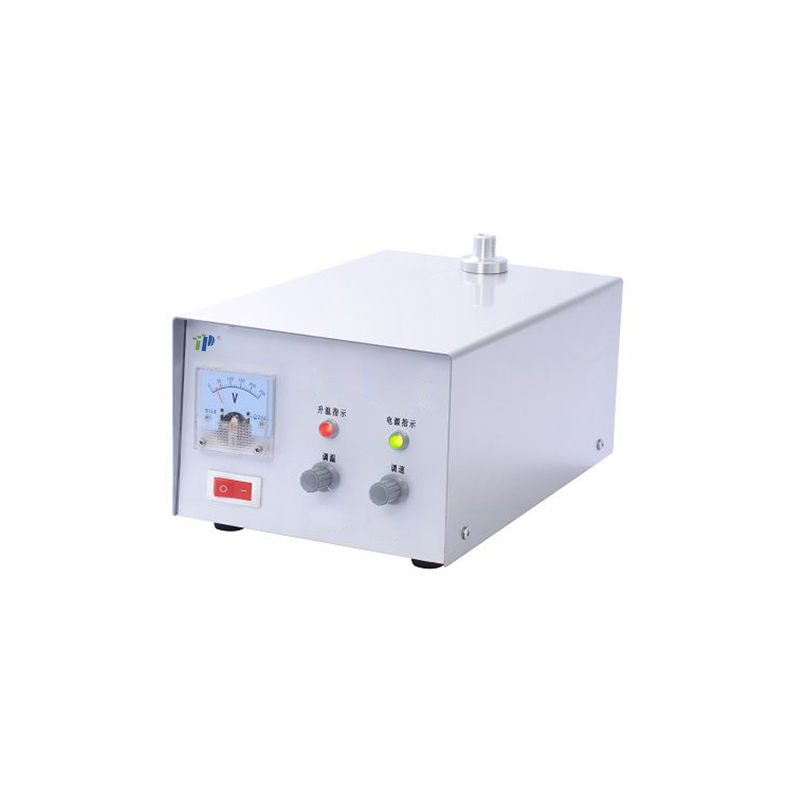

Note: The 98-1 magnetic stirrer is equipped with a 220V socket at the back of the machine, with adjustable output voltage, and is equipped with a heating tube and a conductive thermometer for heating and temperature control.
Type | 85-1A | 85-1 | 85-2A | 98-1 | 98-2 | P03-A | P03-B |
Control | Knob | Knob | Knob | Knob | Knob | Knob | Knob |
( AC ) Voltage | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
Max.stirring capacity | 2L | 3L | 5L | 10L | 10L | 10L | 20L |
Motor type | BrushlessDCMotor | BrushlessDCMotor | Brushless DCMotor | BrushlessDCMotor | BrushlessDCMotor | BrushlessDCMotor | BrushlessDCMotor |
MotorPower | 4W | 8W | 10W | 15W | 15W | 15W | 40W |
Digital Display | — | Voltmeter shows the output voltage | Speed | Speed | |||
(r/min) SpeedRange | 0~2000 | 0~1500 | 0~2000 | 0~2000 | 0~2000 | 0~2000 | 0~2000 |
Working plate material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainlesssteel | Stainless steel |
(mm) Dimension | 120×130×65 | 210×130×65 | 245×145×100 | 260×160×110 | 260×160×85 | 210×210×85 | 210×210×105 |
(kg) Weight | 1.2 | 2.5 | 3.8 | 4.7 | 4.8 | 4.1 | 4.13 |
Note: The 98-1 magnetic stirrer is equipped with a 220V socket at the back of the machine, with adjustable output voltage, and is equipped with a heating tube and a conductive thermometer for heating and temperature control.
