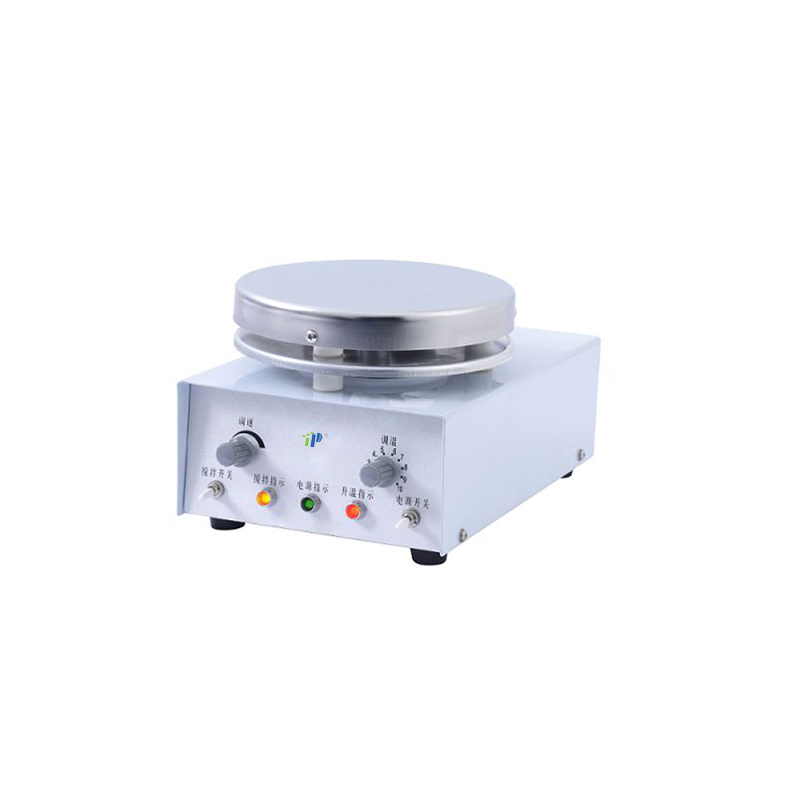

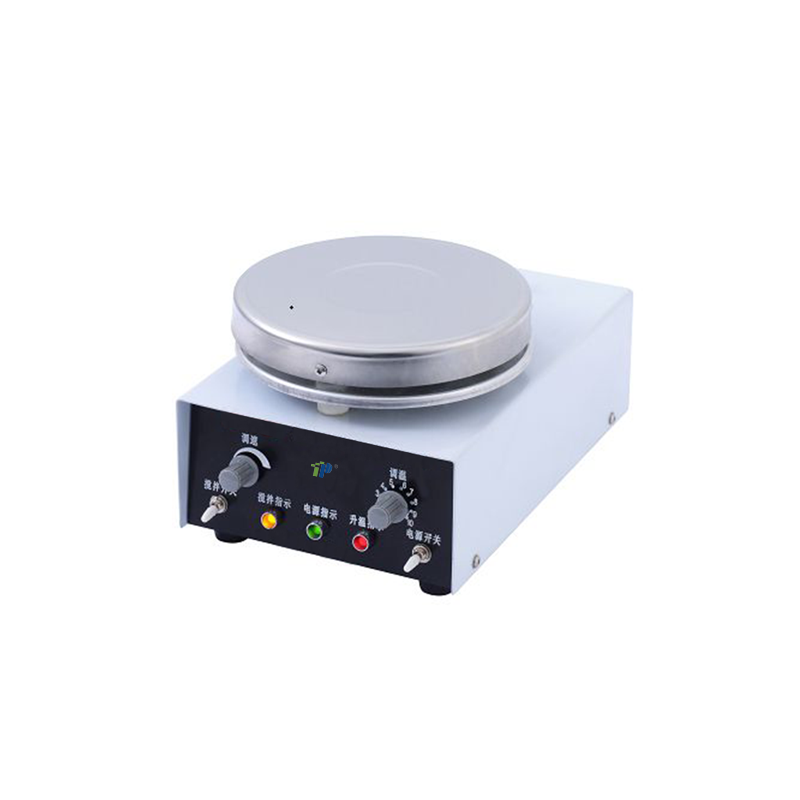

Brushless DC Motor Hotplate Stirrer, 3L–5L Capacity, 0–2000 rpm, 360W Adjustable Heating, Stainless Steel Plate

Motor Type: Brushless DC motor with variable speed control
Max Stirring Capacity: 5L (85-2), 3L (81-2)
Speed Range: 0–2000 rpm (85-2), 0–1500 rpm (81-2)
Heating Power: Adjustable 360W stainless steel heating plate (φ145 mm)
Temperature Range: Room temperature to 150°C (within 1L)
Liquid Temperature Sensor: Conductive thermometers (customer provided)
Dimensions & Weight: 260×150×125 mm; Weight approx. 3.5–3.6 kg

Quantity:
Availability:





Inquire Add to Basket

Model:
85-2 / 81-2
Brand:
TOP

Brushless DC motor drive, variable speed. φ145mm stainless steel heating plate Driven by brushless DC motor; steplesspeed regulating

Thermostat Magnetic Stirrer Heated Magnetic Stirrer Lab magnetic stirrer with heating Temperature-controlled stirrer Magnetic stirrer hotplate

Related Products

P-H-S10 10-Position Magnetic Hotplate Stirrer – Multi-Sample Heating and Stirring with Adjustable Speed for Laboratory Use

Digital Magnetic Stirrer With Ceramic Plate TH Series

TH-4C/TH-II-4C Digital Magnetic Hotplate Stirrer – Adjustable Heating and Stirring with LCD Display for Laboratory and Industrial Use

Digital Magnetic Hotplate Stirrer TH Series

TH Series Magnetic Hotplate Stirrer – Adjustable Heating and Stirring for Laboratory and Industrial Use

P-S DC Motor Magnetic Stirrer – Compact Single-Position Laboratory Stirring with Adjustable Speed

P7-S Square Magnetic Stirrer – Laboratory Stirring with Adjustable Speed and Chemical-Resistant Workplate

PS-PA / PS-PB LED Digital Magnetic Stirrer – 5-Inch Workplate, Adjustable Speed 0-1500rpm for Lab Use

Type	85-2	81-2
Control	Knob	Knob
(AC) Voltage	220V	220V
Max.stirring capacity	5L	3L
Motor type	Brushless DC Motor	Brushless DC Motor
Motor Power	10W	8W
(r/min) Speed Range	0~2000	0~1500
Working plate material	Stainless steel	Stainless steel
(mm) Working plate size	φ145	φ145
(W) Heating power	360Wadjustable within	360Wadjustable within
℃ Liquid temperature range	Room temperature-150（Within 1L）	Room temperature-150（Within 1L）
Liquid temperature	Conductive thermometers(Customer provided)	Conductive thermometers(Customer provided)
(mm) Dimension	260×150×125	260×150×125
(kg) Weight	3.6	3.5

Type	85-2	81-2
Control	Knob	Knob
(AC) Voltage	220V	220V
Max.stirring capacity	5L	3L
Motor type	Brushless DC Motor	Brushless DC Motor
Motor Power	10W	8W
(r/min) Speed Range	0~2000	0~1500
Working plate material	Stainless steel	Stainless steel
(mm) Working plate size	φ145	φ145
(W) Heating power	360Wadjustable within	360Wadjustable within
℃ Liquid temperature range	Room temperature-150（Within 1L）	Room temperature-150（Within 1L）
Liquid temperature	Conductive thermometers(Customer provided)	Conductive thermometers(Customer provided)
(mm) Dimension	260×150×125	260×150×125
(kg) Weight	3.6	3.5
