Benchtop Incubator Shaker with PID Temperature Control and Universal Platform – Model PTSH-02
You are here: home » Products » Lab Shakers » Incubator Shakers / Temperature-Controlled Shakers » Benchtop Incubator Shaker with PID Temperature Control and Universal Platform – Model PTSH-02

Product Category

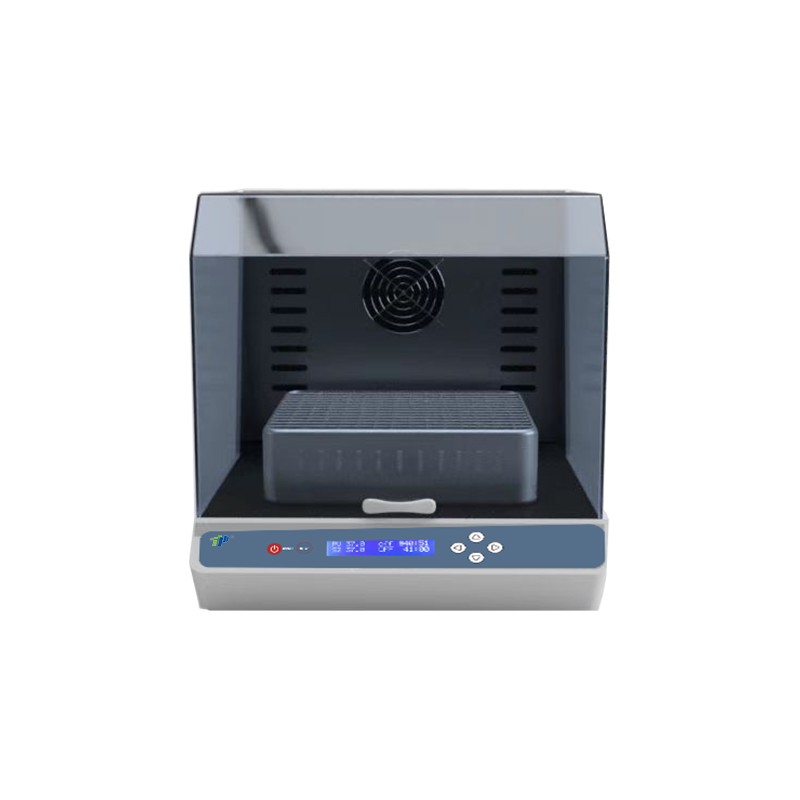

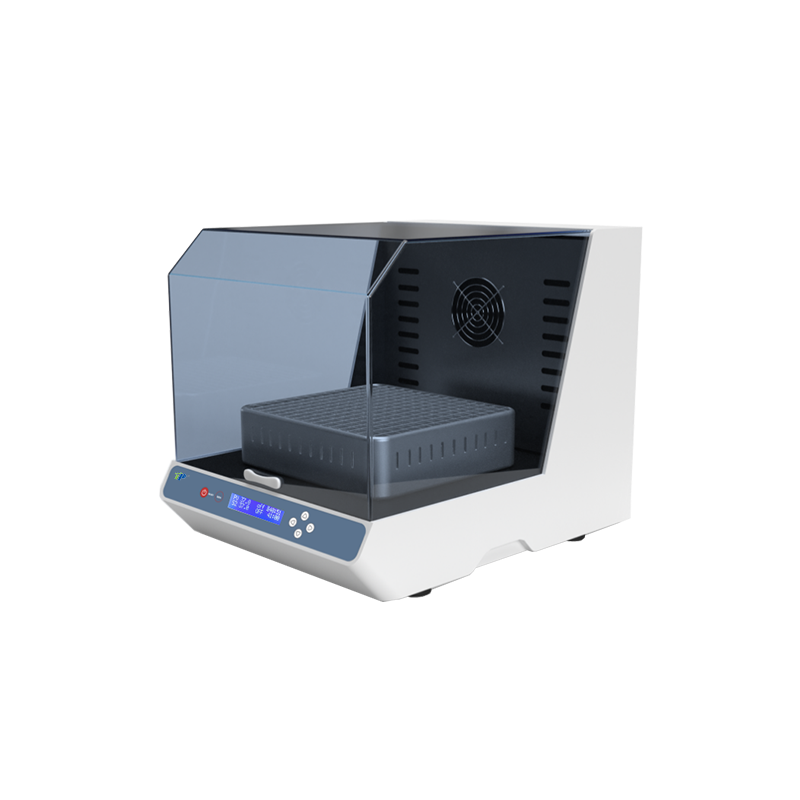

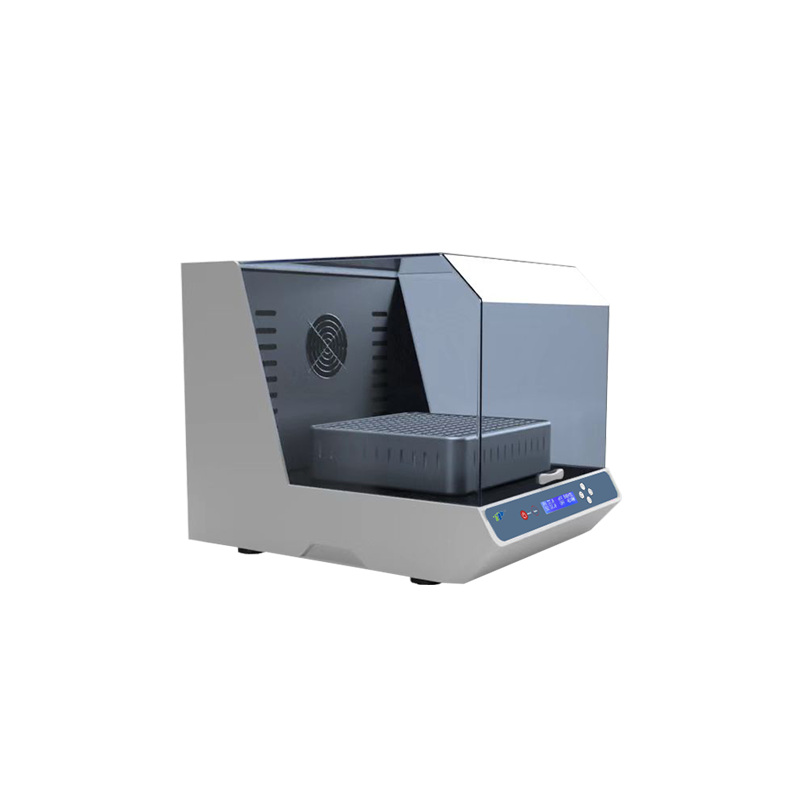

Benchtop Incubator Shaker with PID Temperature Control and Universal Platform – Model PTSH-02

Temp setting range: 0℃~60℃
Temp control range: RT +5℃~60℃
Time setting: 1min~99h59min/∞
Speed range: 50-300Rpm
Horizontal amplitude: 20mm
Standard tray: Universal tray
Platform size: 230x230mm
Inner cavity height: 182mm
Loading weight: 4.0Kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PTSH-02

  • TOP

Main Features:

As a small desktop laboratory instrument, it integrates a precise temperature control incubator and a low-frequency, high-amplitude oscillator. It is easy to operate and maintain, and equipping with a universal tray to place and fix a variety of containers.


Widely used in cell culture, fermentation, hybridization, biochemistry and other fields that have high requirements for temperature and oscillation frequency, applying for running or static culture of microbial cells and various strains.


● Comfortable human-machine operation interface, to display the whole running and time/ speed setting information,convenient for real-time observation

● Adopting PID temperature control technology, built-in temperature calibration function and compact constant temperature space, to ensure the accuracy and uniformity of experimental temperature

● Unique speed control circuit, to ensure smooth starting for the shaker and prevents liquid splashing and damage to the instrument

● DC brushless motor driving, large starting torque, low noise, low interference, maintenance-free, long-term continuous operation and long lifetime

● The speed of the circulating fan automatically controlled, to avoid sample volatilization caused by excessively fast speed of circulating fan during the experiment

● Automatic recovery for setting data after power off, automatic pause function when opening the cover, high safety

● Built-in double over-temperature protection device, much safer to use


Machine parameters:

Model

PTSH-02

Temp setting range

0℃~60℃

Temp control range

RT +5℃~60℃

Time setting

1min~99h59min/∞

Temp control accuracy

≤±0.5℃(@37℃)

Display accuracy

0.1℃

Temp uniformity

≤±0.5℃(@37℃)

Speed range

50-300Rpm

Horizontal amplitude

20mm

Standard tray

Universal tray

Platform size

230x230mm

Inner cavity height

182mm

Loading weight

4.0Kg

Heating time

≤15min(25℃ to 60°C)

Automatic recovery after power off

Support

Automatic pause when cover is open

Support

Input power

350W

Voltage

AC220V/50-60HZ

Fuse

250V 3A Φ5x20

Dimensions

421x320x338mm

Weight

18.5Kg
