TMC300W Series Homothermal Microscope 40X–1600X with LED Illumination, Achromatic Objectives, Binocular & Trinocular

You are here: home » Products » Microscopes » Biological Microscopes » TMC300W Series Homothermal Microscope 40X–1600X with LED Illumination, Achromatic Objectives, Binocular & Trinocular

Product Category

TMC300W Series Homothermal Microscope 40X–1600X with LED Illumination, Achromatic Objectives, Binocular & Trinocular

Total magnification 40X–1600X with compensation binocular or trinocular tube, 30° inclined, 360° rotatable, interpupillary distance 48–75mm
WF10X/20mm and WF16X/10mm wide-field eyepieces
195N Achromatic objectives: 4X, 10X, 40X(Spring), 100X(Spring, oil)
Coaxial coarse and fine focusing, coarse stroke 22mm, fine graduation 0.001mm, elasticity adjustable, upper limit adjustable, random positioning
Homothermal stage, temperature range: room temperature to 50℃, control accuracy ≤±1℃, heating power 12V
Illumination: upper 1W LED optional, bottom 3W LED standard, precision stepless dimming, no flicker
Condenser: Abbe N.A=1.25, iris diaphragm, center adjustable, lift up/down; optional C-type camera interfaces 0.5X, 0.65X, 1X

Quantity:
Availability:





Inquire Add to Basket

Model:
TMC300W Series
Brand:
TOP

Characteristic:

Thermostat stage

The heating stage is made of specially formed aluminum alloy, and the temperature rise is uniform and stable.

The working surface temperature adopts LED digital display, accurate reading, temperature control range: room temperature -50℃

Fast and uniform heating, easy operation and safe use

Focusing mechanism

Coaxial coarse and fine movement, with hand wheel tightness adjustment, random limit locking mechanism.

Aluminum alloy packaging (non-standard, optional)

TMC300 Series Laboratory Microscope with Infinity Achromatic Objectives and LED Illumination

Binocular Biological Microscope TMC100 series

TMC100 Series Binocular & Trinocular Microscope 40X–1000X with LED Illumination, Infinity Achromatic Objectives, Smart Display

Monocular And Binocular Biological Microscope TSP-30 Series

TSP-30 Series Monocular, Binocular & Trinocular Microscope 40X–1600X with LED Illumination and Rechargeable Battery

TMC500 Series High-Contrast Infinity Microscope 40X–1600X with LED & Halogen Illumination, Advanced Achromatic Objectives

TH200 Series Biological Microscope 40X–1000X with Achromatic Objectives, LED Illumination, and Double-Layer Stage

TH20 Series Student Biological Microscope 40X–1600X with LED Illumination, Achromatic Objectives, and Portable Design

TH50 Series Biological Microscope 40X–1600X with Achromatic/Plan Objectives, LED Illumination, and Trinocular Option

TH100 Series Trinocular Biological Microscope with Infinity Objectives, LED & Halogen Illumination

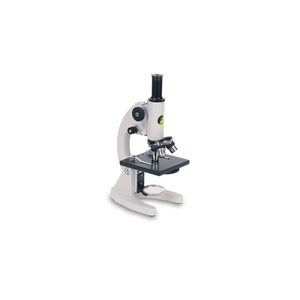

TP Series Monocular Laboratory Microscope with Achromatic Objectives and Adjustable Metal Stage

Model Number	TMC302W-A	TMC303W-A
Total magnification	40X-1600X
Viewing tube	Compensation binocular tube, 30°inclined, 360° rotatable, interpupillary distance : 48-75mm	Compensation trinocular tube, 30°incline, 360° rotatable, interpupillary distance : 48-75mm
Eyepiece	WF10X/20mm, WF16X/10mm
Objective	195N Achromatic objective 4X
	195N Achromatic objective 10X
	195N Achromatic objective 40X
	195N Achromatic objective 100X
Nosepiece	Inner clined quadruble nosepiece, ball bearing inner locating
Homothermal stage
Homothermal range	Room temperature -50℃
Control accuracy	≤±1℃
Heating power	12V
Power	36W
Focusing system	Coaxial coarse and fine focusing knob, coarse focusing range 22mm, fine focusing graduation: 0.001mm, elasticity adjustable, upper limit adjustable, random positioning
Condenser	Abbe condenser N.A=1.25, center adjustable, iris diaphragm, lift up and down
Upper light	1W LED cold light source (Non-standard, optional)
Bottom light	LED cold light source, 3W, precision stepless dimming, no flicker (Standard)
Power supply	External switch power supply, input AC90-240V
Others	0.5X C type interface
	0.65X C type interface
	1X C type interface

Model Number	TMC302W-A	TMC303W-A
Total magnification	40X-1600X
Viewing tube	Compensation binocular tube, 30°inclined, 360° rotatable, interpupillary distance : 48-75mm	Compensation trinocular tube, 30°incline, 360° rotatable, interpupillary distance : 48-75mm
Eyepiece	WF10X/20mm, WF16X/10mm
Objective	195N Achromatic objective 4X
	195N Achromatic objective 10X
	195N Achromatic objective 40X
	195N Achromatic objective 100X
Nosepiece	Inner clined quadruble nosepiece, ball bearing inner locating
Homothermal stage
Homothermal range	Room temperature -50℃
Control accuracy	≤±1℃
Heating power	12V
Power	36W
Focusing system	Coaxial coarse and fine focusing knob, coarse focusing range 22mm, fine focusing graduation: 0.001mm, elasticity adjustable, upper limit adjustable, random positioning
Condenser	Abbe condenser N.A=1.25, center adjustable, iris diaphragm, lift up and down
Upper light	1W LED cold light source (Non-standard, optional)
Bottom light	LED cold light source, 3W, precision stepless dimming, no flicker (Standard)
Power supply	External switch power supply, input AC90-240V
Others	0.5X C type interface
	0.65X C type interface
	1X C type interface
