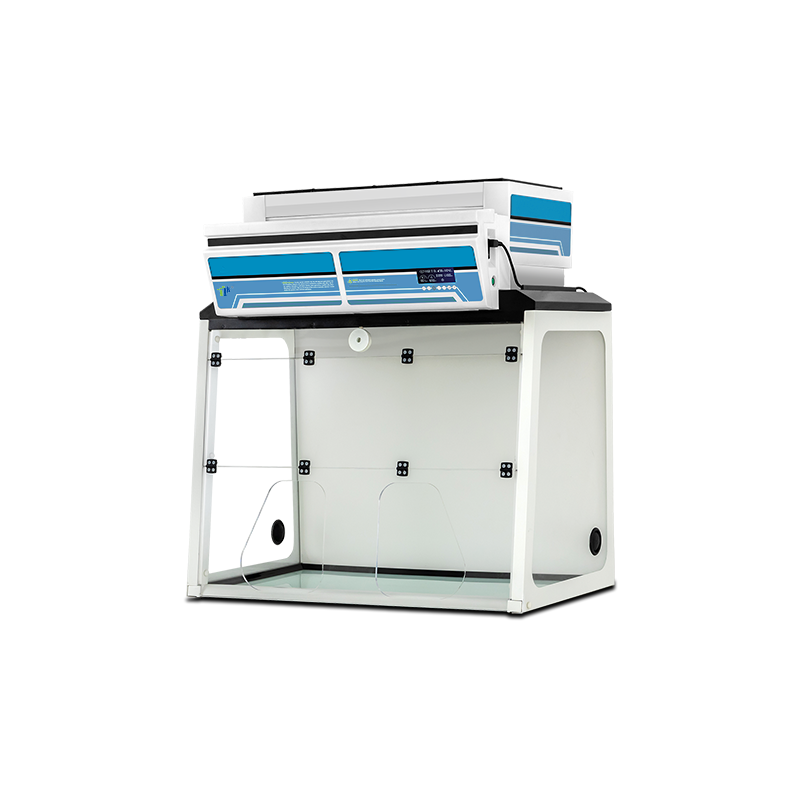

PCR Workstation


· Model: TF-B series
· Type: Desktop and floor standing
· UV sterilization: remote control switch, can be time segment timing sterilization
· Optional with intelligent networking function: APPEMonitor system, wireless connection, Wi-Fi, 4G network communication connection, real-time adjustable parameters, real-time alarm information push, APP will be pushed when closed
· Filter system: It has a modular function, which can be configured with the corresponding filter for liquid or dust and mixed experiments, and has the adsorption function for 500 common chemical substances



Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TF-B series

  • TOP

PCR Workstation used for providing a clean and sterile work environment for handling materials that are sensitive to contamination, such as PCR samples. It is commonly used in a wide range of applications such as molecular biology, genetics, and biotechnology research.


Characteristic:

  • Metal part material: galvanized steel plate, and coated with acid and alkali resistant epoxy polyester coating

  • The operating table can choose epoxy resin plate or paint explosion-proof tempered glass

  • The safe service life of the cold fluorescent lamp is more than 100,000 hours

  • UV sterilization, remote control switch, can be time segment timing sterilization, to avoid UV damage to the human body, to protect the occupational health and safety of the experimenter

  • LED display: LED intelligent display, display filter operating temperature, fan speed, instant surface wind speed, filter life countdown, filter outlet TVOC concentration probe; The fan speed can be adjusted to ensure the positive pressure in the cabinet

  • Filter outlet TVOC concentration display accuracy: 0.1PPM, can set the alarm value

  • The surface wind speed detection probe should be located at the front baffle of the fume hood, and the display accuracy is 0.1m /s

  • The filter system has a modular function, which can be configured with the corresponding filter for liquid or dust and mixed experiments, and has the adsorption function for 500 common chemical substances

Model

TF-800B

TF-1000B

TF-1300B

TF-1600B

TF-1800B

Internal Dimensions (mm)

786*560*760

986*560*760

1286*690*760

1586*690*760

1786*690*760

External Dimensions (mm)

800*620*1050~1350

1000*620*1050~1350

1300*790*1080~1502

1600*790*1080~1502

1800*790*1080~1502

No. of filters

2

4

6

8

Surface wind speed (m/s)

0.4-0.6

Air volume m³/h

240

480

720

960

Temp. monitoring

Standard configuration

Filter saturation monitoring

Standard configuration

Fan monitoring

Standard configuration

Indoor TVOC monitoring

Optional configuration

Remote monitoring

Optional configuration

7 inch touch screen

Optional configuration

Optional operation countertop:



Thickened 19/25mm epoxy resin board, with better stability, is more suitable for high-precision balance measurement




656437bcdd7535ba3ff21d96c13545a

Tempered glass countertop For the vast majority of chemical substances, it has good corrosion resistance (except for hydrofluoric acid). The glass countertop is equipped with a liquid holding function, and the front edge of the countertop is designed with a grooved arc shape, effectively preventing the overflow of chemical liquids. The ideal choice for the experiment.



Optional workbench:



The movable workbench is equipped with Foma wheels and has strong stability.




微信图片_20250512162415

Fixed workbench
