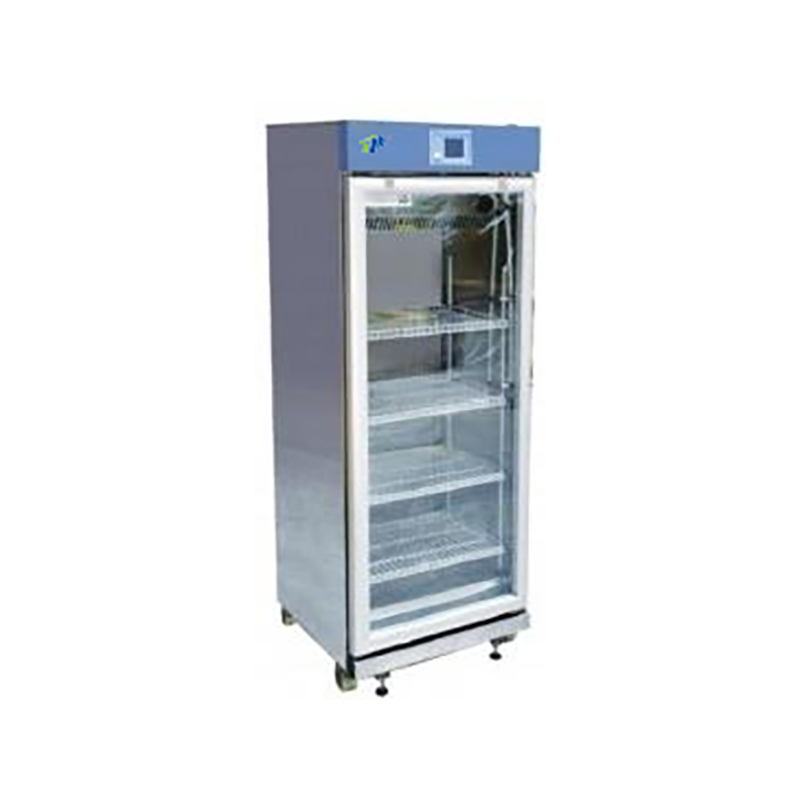

TJG SERIES
TOP
Heart warming, worry-free:
Used for IV infusion and washing fluid heating under guidance of doctor to help keeping proper body temperature during operation safest heating of drug and devices, effectively guaranteeing success rate of operative treat.
Product advantages:
Temperature control
● Microcomputer control, digital display, adjustable internal temperature.
● Unique color touch screen controller, accurate control of internal temperature.
Safety control system:
● Dual control system design: electric control system + standby mechanical control system.
● PTC with overheat protector, auto power-off in case high temperature (PTC protector surface temperature over 110°C)
Ergonomic design:
● PTC ceramic composite heating technology. Quick heating. Safe and stable.
● Wide voltage design for use under 187-242V.
● Safety door lock ensuring safety in use (except for TJG-650)
● SUS430 stainless iron shell, SUS430SS liner, resistant to corrosion.
● New C-shaped duct design to ensure uniform and stable temperature.
Heart warming, worry-free:
Used for IV infusion and washing fluid heating under guidance of doctor to help keeping proper body temperature during operation safest heating of drug and devices, effectively guaranteeing success rate of operative treat.
Product advantages:
Temperature control
● Microcomputer control, digital display, adjustable internal temperature.
● Unique color touch screen controller, accurate control of internal temperature.
Safety control system:
● Dual control system design: electric control system + standby mechanical control system.
● PTC with overheat protector, auto power-off in case high temperature (PTC protector surface temperature over 110°C)
Ergonomic design:
● PTC ceramic composite heating technology. Quick heating. Safe and stable.
● Wide voltage design for use under 187-242V.
● Safety door lock ensuring safety in use (except for TJG-650)
● SUS430 stainless iron shell, SUS430SS liner, resistant to corrosion.
● New C-shaped duct design to ensure uniform and stable temperature.
Technical data
Model | TJG-100 | TJG-239 | TJG-650 |
Temperature control range | 20-55°C | 20-55°C | 20-55°C |
Overall dimension(mm) | 600*595*920 | 600*530*1530 | 740*815*2000 |
Internal dimension(mm) | 485*485*500 | 520*435*1185 | 624*702*1400 |
Packing dimension(mm) | 680*660*1100 | 660*630*1600 | 765*855*2055 |
Effective volume(L) | 100 | 239 | 650 |
Net weight | 42 | 60 | 105 |
Gross weight | 47 | 65 | 125 |
Rated power supply(V/Hz) | 220/50 | 220/50 | 220/50 |
Climate type | SN | SN | SN |
Anti-electric shock type | I | I | I |
PTC heater | 400 | 400 | 400 |
Power consumption(kW.h/24h) | 2.8 | 3.2 | 4.33 |
Heater type | PTC (with overheat protection) | PTC (with overheat protection) | PTC (with overheat protection) |
Insulation material | Fluoride-free cyclopentane HD PU foaming | Fluoride-free cyclopentane HD PU foaming | Fluoride-free cyclopentane HD PU foaming |
Foamed layer thickness(mm) | 55 | 40 | 60 |
Glass door | 2-layered hollow tempered glass door | 2-layered hollow tempered glass door | 2-layered hollow tempered glass door |
Auto door resetting function | No | Yes | Yes |
Shelf material | Dipped wire | Dipped wire | Dipped wire |
Number of shelves | 2 | 4 | 6 |
Shelf dimensions | 460*380 | 490*350 | 530*610 |
Technical data
Model | TJG-100 | TJG-239 | TJG-650 |
Temperature control range | 20-55°C | 20-55°C | 20-55°C |
Overall dimension(mm) | 600*595*920 | 600*530*1530 | 740*815*2000 |
Internal dimension(mm) | 485*485*500 | 520*435*1185 | 624*702*1400 |
Packing dimension(mm) | 680*660*1100 | 660*630*1600 | 765*855*2055 |
Effective volume(L) | 100 | 239 | 650 |
Net weight | 42 | 60 | 105 |
Gross weight | 47 | 65 | 125 |
Rated power supply(V/Hz) | 220/50 | 220/50 | 220/50 |
Climate type | SN | SN | SN |
Anti-electric shock type | I | I | I |
PTC heater | 400 | 400 | 400 |
Power consumption(kW.h/24h) | 2.8 | 3.2 | 4.33 |
Heater type | PTC (with overheat protection) | PTC (with overheat protection) | PTC (with overheat protection) |
Insulation material | Fluoride-free cyclopentane HD PU foaming | Fluoride-free cyclopentane HD PU foaming | Fluoride-free cyclopentane HD PU foaming |
Foamed layer thickness(mm) | 55 | 40 | 60 |
Glass door | 2-layered hollow tempered glass door | 2-layered hollow tempered glass door | 2-layered hollow tempered glass door |
Auto door resetting function | No | Yes | Yes |
Shelf material | Dipped wire | Dipped wire | Dipped wire |
Number of shelves | 2 | 4 | 6 |
Shelf dimensions | 460*380 | 490*350 | 530*610 |
