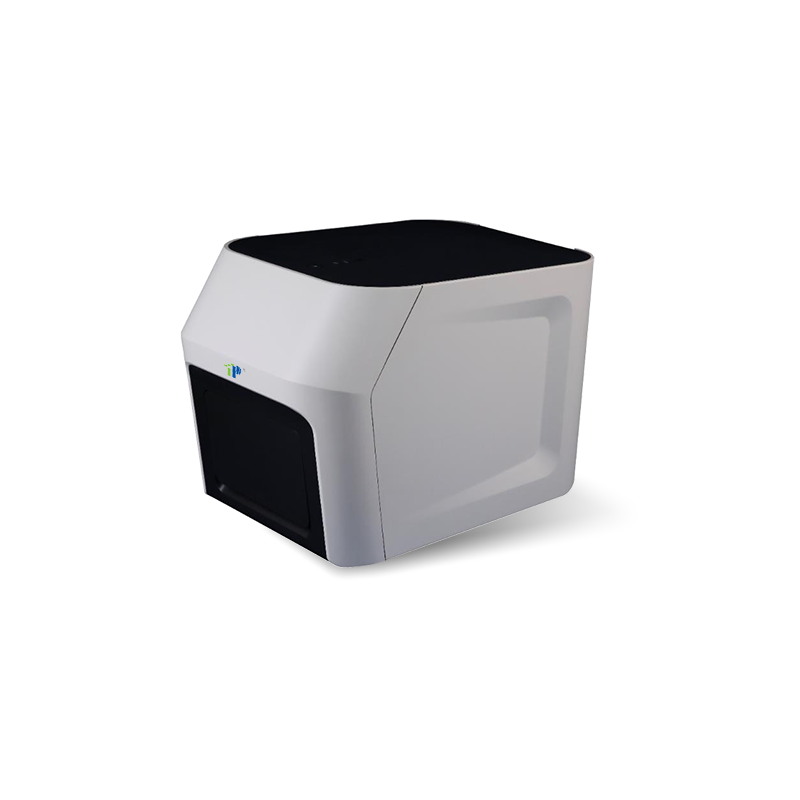

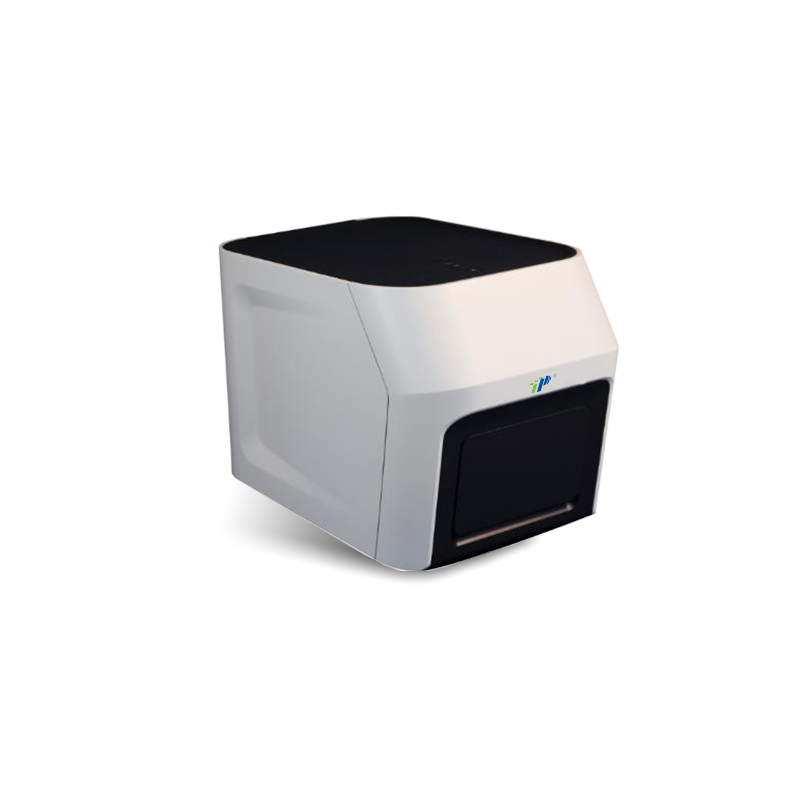

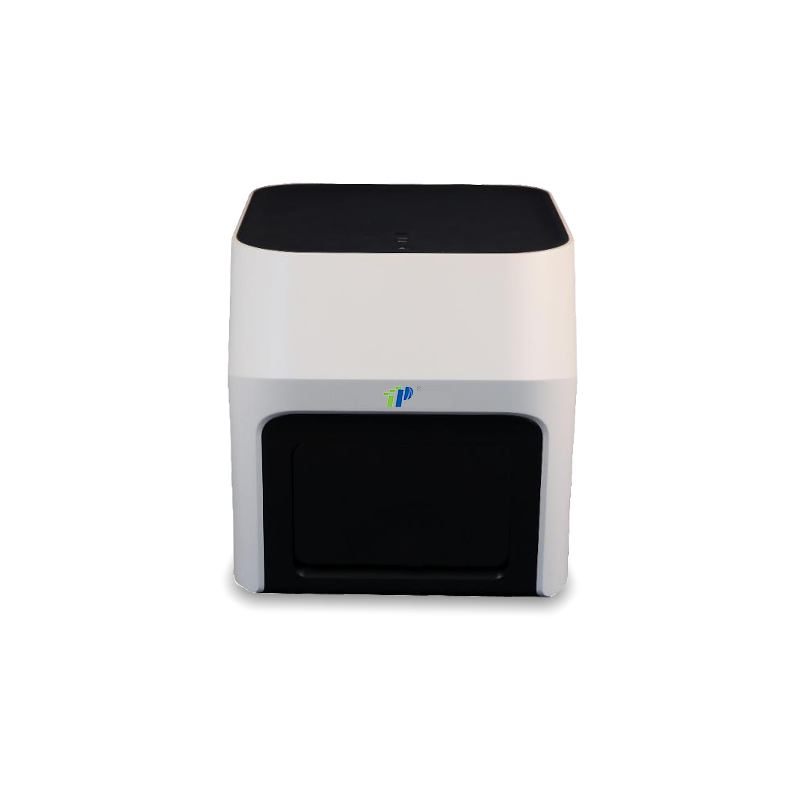

TP96C4 / TP96C6
TOP
Main Features:
As an important detection method for molecular biology detection, real-time fluorescence quantitative PCR has been widely used in many fields such as scientific research, clinical detection and diagnosis and forensic applications.
Features:
●Four channels and six channels cover most fluorescence;
● Effectively reduces multi-color crosstalk and edge effects without fluorescence correction;
● Innovative scanning method and time-resolved signal separation technology;
●Optical scanning detection system, high sensitivity and resolution, accurate identification of negative and positive;
● Unique zoned temperature control and edge temperature compensation technology ensures temperature uniformity.
Main Features:
As an important detection method for molecular biology detection, real-time fluorescence quantitative PCR has been widely used in many fields such as scientific research, clinical detection and diagnosis and forensic applications.
Features:
●Four channels and six channels cover most fluorescence;
● Effectively reduces multi-color crosstalk and edge effects without fluorescence correction;
● Innovative scanning method and time-resolved signal separation technology;
●Optical scanning detection system, high sensitivity and resolution, accurate identification of negative and positive;
● Unique zoned temperature control and edge temperature compensation technology ensures temperature uniformity.
Machine parameters:
Model | TP96C4 | TP96C6 |
Sample capacity | 96x0.1ml PCR tube/12x0.1ml8-strip tube/96-well microplate | |
Reaction volume | 10~50μL | |
Thermal cycling | Peltier(6 temperature control modules) | |
Max tamp rate | 6℃/s | |
Temp setting range | 4~100℃ | |
Temperature accuracy | ≤±0.1℃ | |
Temperature uniformity | ≤±0.1℃ | |
Gradient zone | 12 columns | |
Gradient range | 1~40℃ | |
Excitation light source | 4pcs LED | 6pcs LED |
Detection module | MPPC | |
Scanning principle | Time-resolved scanning technology | |
Excitation/detection range | 415~685nm / 455~745nm | |
Fluorescence channel | 4 channels | 6 channels |
Detection sensitivity | 1 copy of the target sequence | |
System sensitivity | 1.33-fold copy number differences in singleplex reactions | |
Dynamic range | 10 orders of magnitude | |
Dye compatibility | F1:FAM/SYBR GreenI F2:VIC/HEX/TET/JOE/TAMRA F3:ROX/Texas Red F4:Cy5/LIZ F5:Quasar705/Alexa Fluor 680/Cy5.5 F6: ATT0425 | |
Dimension | H500xW360xL380mm | |
Weight | 25kg | |
Power supply | 100-240V,50-60Hz |
