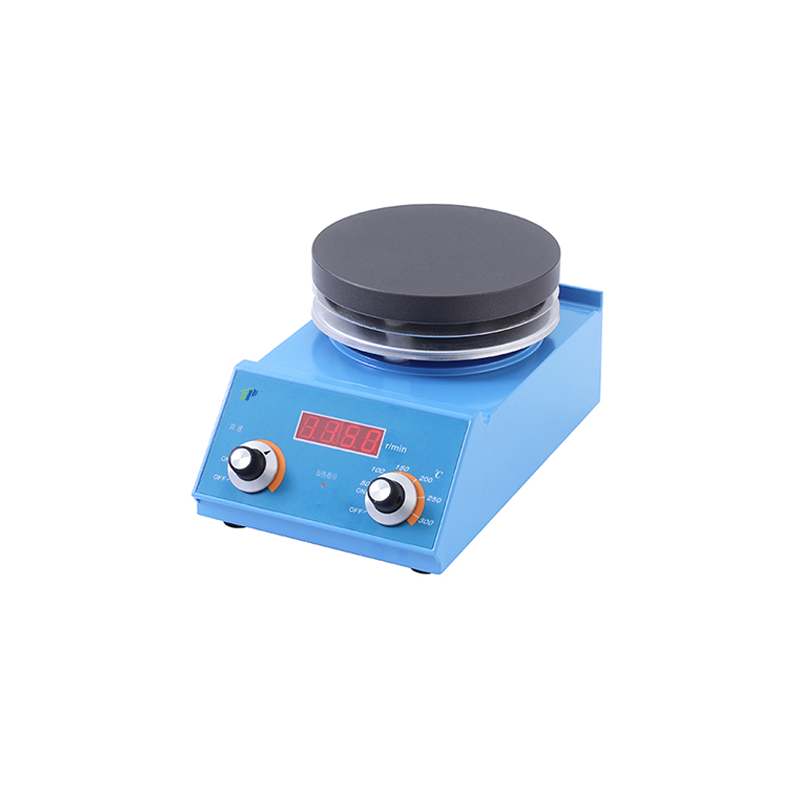

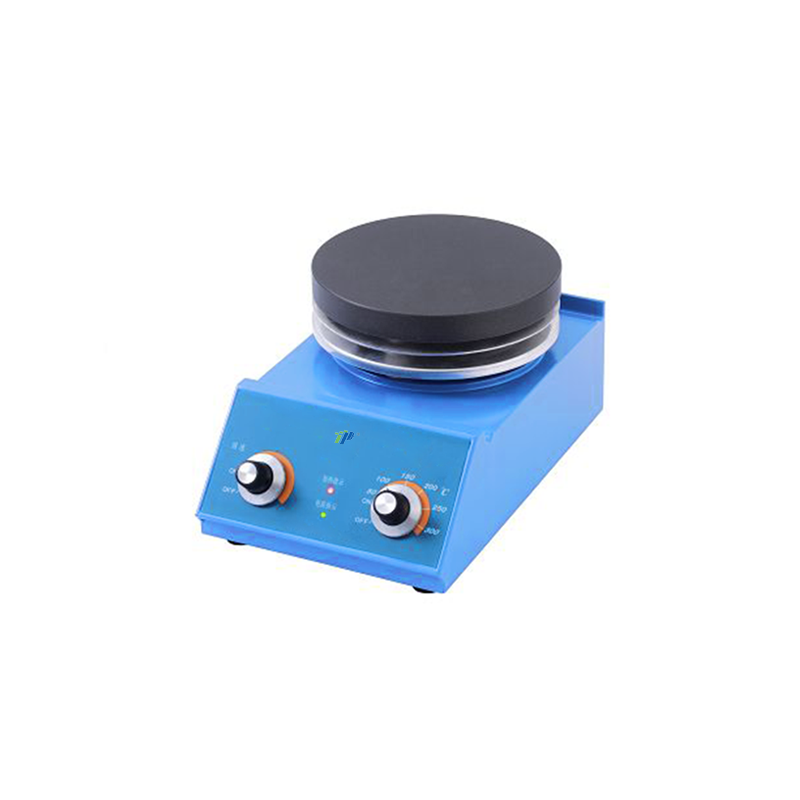

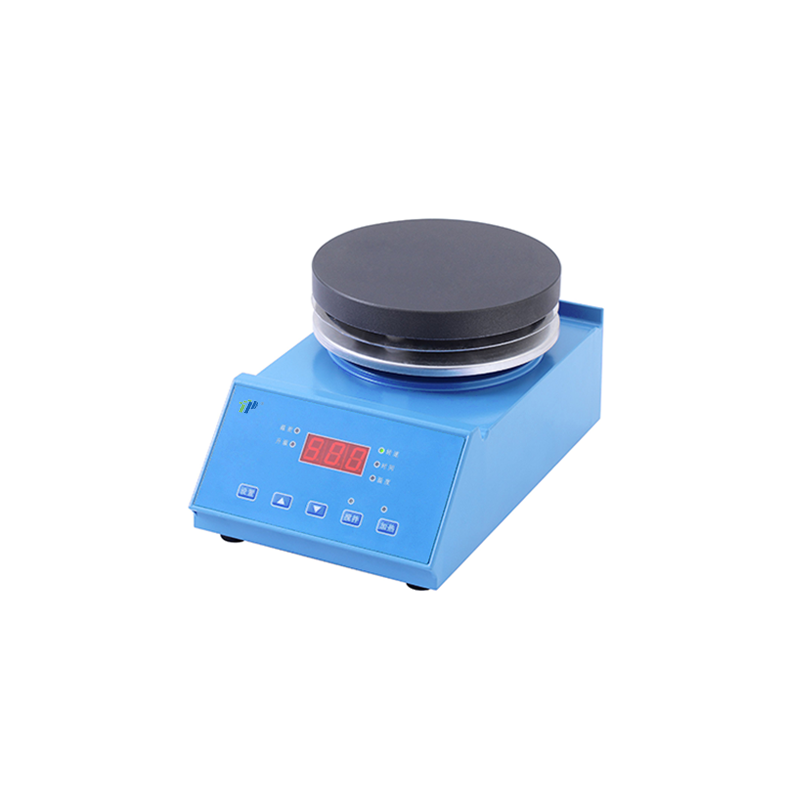

5L Brushless DC Motor Hotplate Stirrer with 600W Aluminum Alloy Heating Plate, 0–1500 rpm, Adjustable 50–300°C Temperature Control

Motor Type: Brushless DC motor with stepless speed regulation
Max Stirring Capacity: 5L
Speed Range: 0–1500 rpm
Heating Power: 600W aluminum alloy heating plate (φ145 mm) with fast temperature rise
Temperature Control: Adjustable 50–300°C, safety limit 350°C, built-in temperature controller
Liquid Temperature Sensor: PT100 or conductive thermometers (customer provided)
Dimensions & Weight: 250×150×135 mm; Weight approx. 4.5 kg

Quantity:
Availability:





Inquire Add to Basket

Model:
P8-2G / P85-2 / P85-2S
Brand:
TOP

The whole aluminum alloy shell is die-casting, driven by BLDCM, stepless speed regulation, dia: 145mm aluminum alloy heating plate, 600W power, fast temperature rise, built-in temperature controller, adjustable heating plate temperature of 50 ~ 300℃, heating plate limit safety temperature of 350℃, various models, suitable for different application requirements.

Thermostat Magnetic Stirrer Magnetic Stirrer with Temperature Control Heated Magnetic Stirrer Lab Stirrer with Heating and Stirring Temperature-Controlled Magnetic Hotplate

Related Products

P7-S Square Magnetic Stirrer – Laboratory Stirring with Adjustable Speed and Chemical-Resistant Workplate

PS-PA / PS-PB LED Digital Magnetic Stirrer – 5-Inch Workplate, Adjustable Speed 0-1500rpm for Lab Use

Type	P8-2G	P85-2	P85-2S
Control	Button	Knob	Knob
(AC) Voltage	220V	220V	220V
Max.stirring capacity	5L	5L	5L
Motor type	Brushless DC Motor	Brushless DCMotor	Brushless DC Motor
Motor Power	10W	10W	10W
(r/min) Speed Range	0~1500	0~1500	0~1500
Digital Display	Speed temperature time		Speed
Working plate material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
(mm) Working platesize	φ145	φ145	φ145
(W) Heating power	600	600	600
Liquid temperature	PT100	Conductive thermometers(Customer provided)	Conductive thermometers (Customer provided)
(mm) Dimension	250×150×135	250×150×135	250×150×135
(kg) Weight	4.5	4.5	4.5

Type	P8-2G	P85-2	P85-2S
Control	Button	Knob	Knob
(AC) Voltage	220V	220V	220V
Max.stirring capacity	5L	5L	5L
Motor type	Brushless DC Motor	Brushless DCMotor	Brushless DC Motor
Motor Power	10W	10W	10W
(r/min) Speed Range	0~1500	0~1500	0~1500
Digital Display	Speed temperature time		Speed
Working plate material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
(mm) Working platesize	φ145	φ145	φ145
(W) Heating power	600	600	600
Liquid temperature	PT100	Conductive thermometers(Customer provided)	Conductive thermometers (Customer provided)
(mm) Dimension	250×150×135	250×150×135	250×150×135
(kg) Weight	4.5	4.5	4.5
