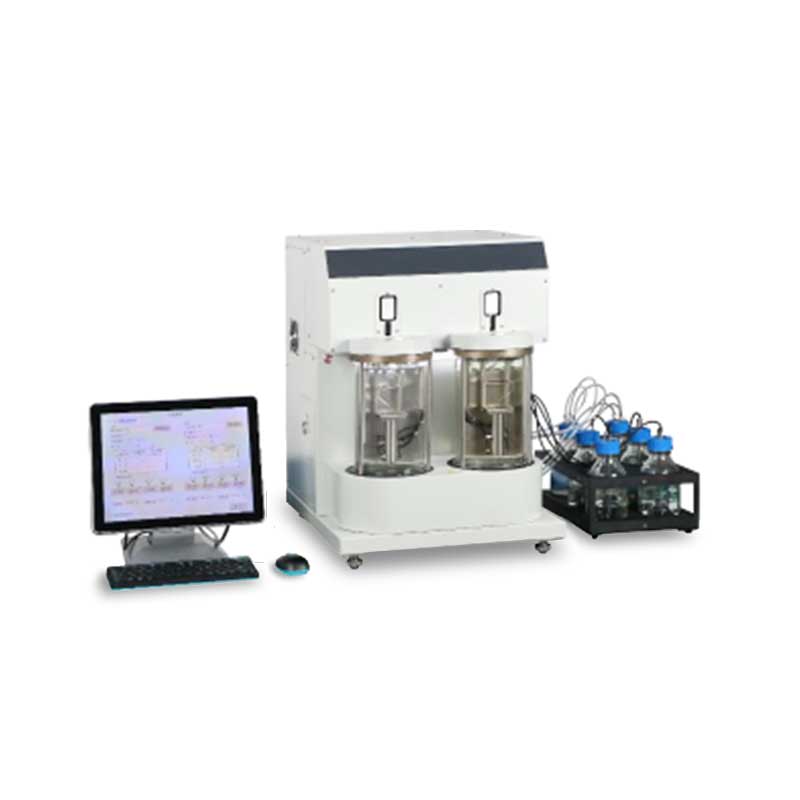

Laboratory Automatic Houillon Viscosity Tester

Model: PYD-0956A-1

TOP INSTRUMENT Laboratory Automatic Houillon Viscosity Tester is a specialized laboratory tool used to measure the kinematic viscosity of a liquid. It is suitable for the determination of kinematic viscosity of transparent and opaque liquids, including base oil, blended lubricating oil, biodiesel, Biodiesel Blended fuel, residual fuel oil, marine oil, etc.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PYD-0956A-1

  • TOP

Characteristic:


  • Full automatic control, one key start detection, the test process includes measurement, cleaning, drying, test results calculation and data storage. It will stop automatically after the test.

  • Fast speed, the fastest measuring time is no more than 30s, and the average measuring time is less than 3 minutes.

  • The instrument has dual solvent automatic cleaning function, which can quickly clean the folded tube viscometer, and the consumption of cleaning agent in one cleaning process is not more than 15ml.

  • The instrument adopts high-precision sensor, the bath temperature is uniform, the constant temperature is stable, and the temperature control accuracy is 0.01 ℃.

  • It is convenient and quick to replace the folded tube viscometer. The viscometer can be replaced without draining the bath liquid. The replacement can be completed within 2 minutes.

  • The constant temperature bath of the instrument is made of high temperature resistant borosilicate glass, with good perspective and heat preservation.




Power supply

AC220V, 50Hz

Bath tube volume

5L

Measurement range

(3~3000) mm2/s

Sample volume

(0.3~1) mL

Temperature control accuracy

0.01℃

Timing accuracy

0.01s

Test time

within 3 minutes (the whole process of measurement, cleaning and drying is within 10 minutes)

Temperature control range

room temperature ~ 150 ℃ (When temperature is below 20 ℃,extra cold external circulation is prepared)

Repeatability

≤0.68%

Detection unit

two independent detection units

Operation interface

15-inch industrial computer touch screen, windows system

Total power consumption

≤1400W

Working temperature

10~30℃

Relative humidity

≤80%

Dimension

650*500*600mm
