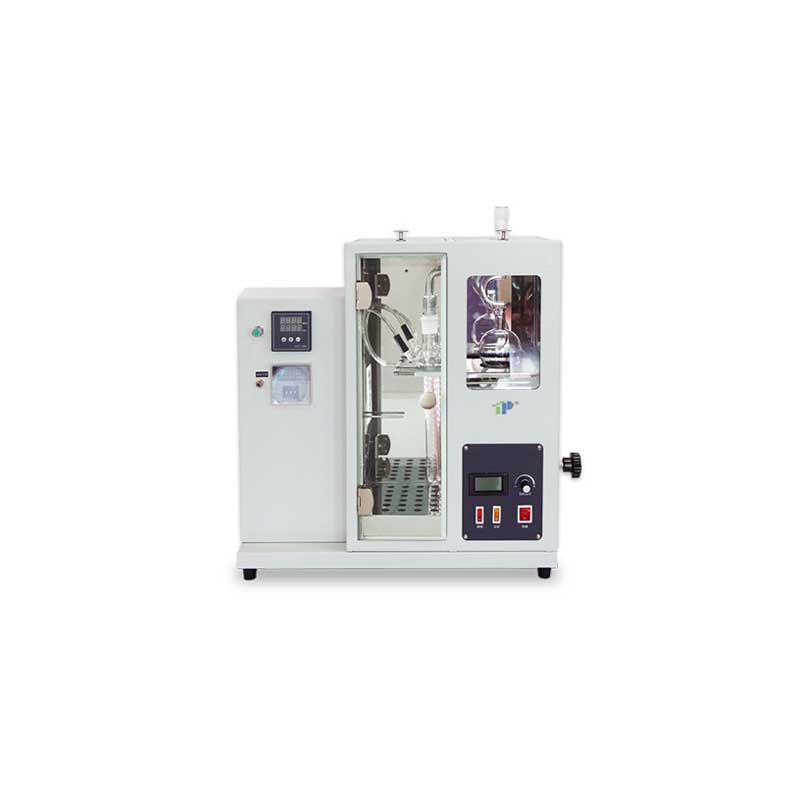

Vacuum Distillation Tester

Model: PYD-0165A

TOP INSTRUMENT Vacuum Distillation Tester is a specialized laboratory instrument used to determine the boiling range and other properties of petroleum products under vacuum conditions. It is suitable to determine the distillation characteristics of wax oil, lubricating oils and other petroleum products with high boiling point range.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PYD-0165A

  • TOP

Characteristic:


This instrument adopts single chip microcomputer technology, can automatically control the vacuum pressure.




Power supply

AC(220±10%)V, 50Hz

Heating power

Heater for distillation flask:1300W,Heater for receiver:350W

Heating furnace of distillation flask

(0~1300)W, continuously adjustable

Temperature control point of air bath of receiver

Ambient to 100℃, continuously adjustable

Temperature sensor of air bath

Pt100,RTD

Temperature control mode

Digital temperature controller

Temperature control precision

Set temp.±1℃

Capacity of buffer vessel

1000ml

Max. residual pressure

2mmHg

Digital pressure gauge

(0~200) mmHg

Illumination light in the air bath

Energy saving lamp

Ambient temp.

(15~35)℃

RH

< 85%

Dimension

600mm*250mm*650mm
