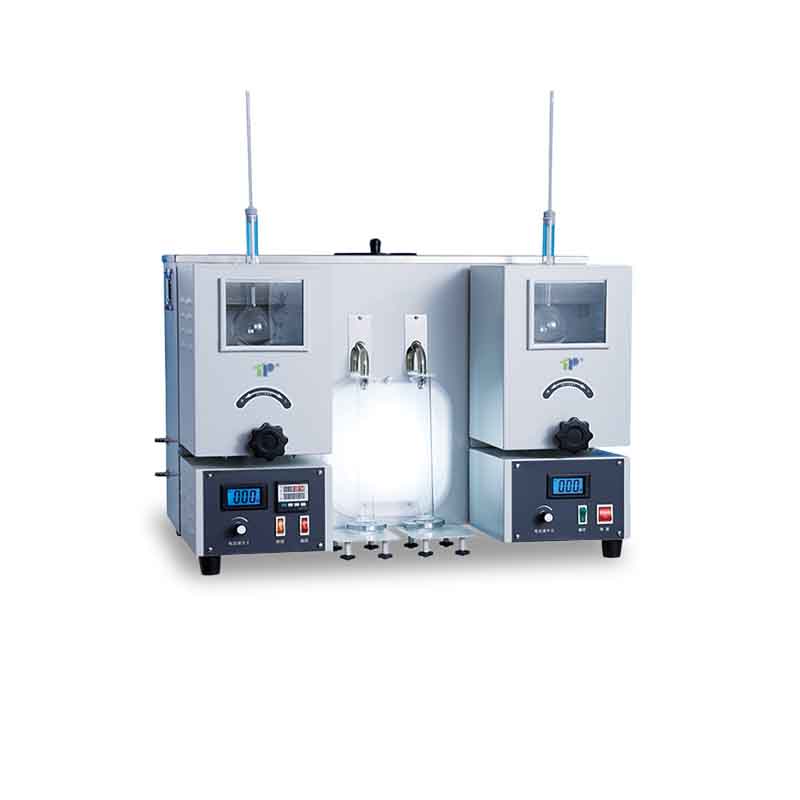

Prtroleum Product Distillation Tester

Model: PYD-6536A

TOP INSTRUMENT Prtroleum Product Distillation Tester is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products. It is not only suitable to the organizations of high frequency with various of samples but also accelerate the test speed for common users. It is an ideal distillation tester for petroleum products.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PYD-6536A

  • TOP

Characteristic:


  • The instrument adopts double units working mode, can do test for one sample as well as two samples which having the same specification or different specifications.It highly improves the work efficiency.

  • It adopts two groups of independent digital temperature controller, heater, electric stirrer to constitute two constant temperature baths. Each bath temperature can be adjusted and controlled independently.The temperature in the bath is uniform,can fully meet the requirements of test.

  • It adopts special heating furnace to ensure the safety of test. Heating power can be continuously adjusted to meet the requirements of test.




Power supply

AC(220±10%)V, 50Hz

Total power consumption

≤4000W

Receiving cylinder

100ml, division value 1ml

Distillation flask

125ml,meet the requirements of GB/T 6536 and ASTM D86

Thermometer

(-2~300)℃ and (-2~400)℃, division value 1℃

Flask support board

Sic, bore diameter φ32mm, φ38mm, φ50mm

Temperature controller

Range

(Ambient +10)℃~60℃

Accuracy

±0.5℃

Display

LED

Ambient temperature

15℃~35℃

Relative humidity

≤85%

Dimension

760mm*520mm*500m

Net weight

40kg
